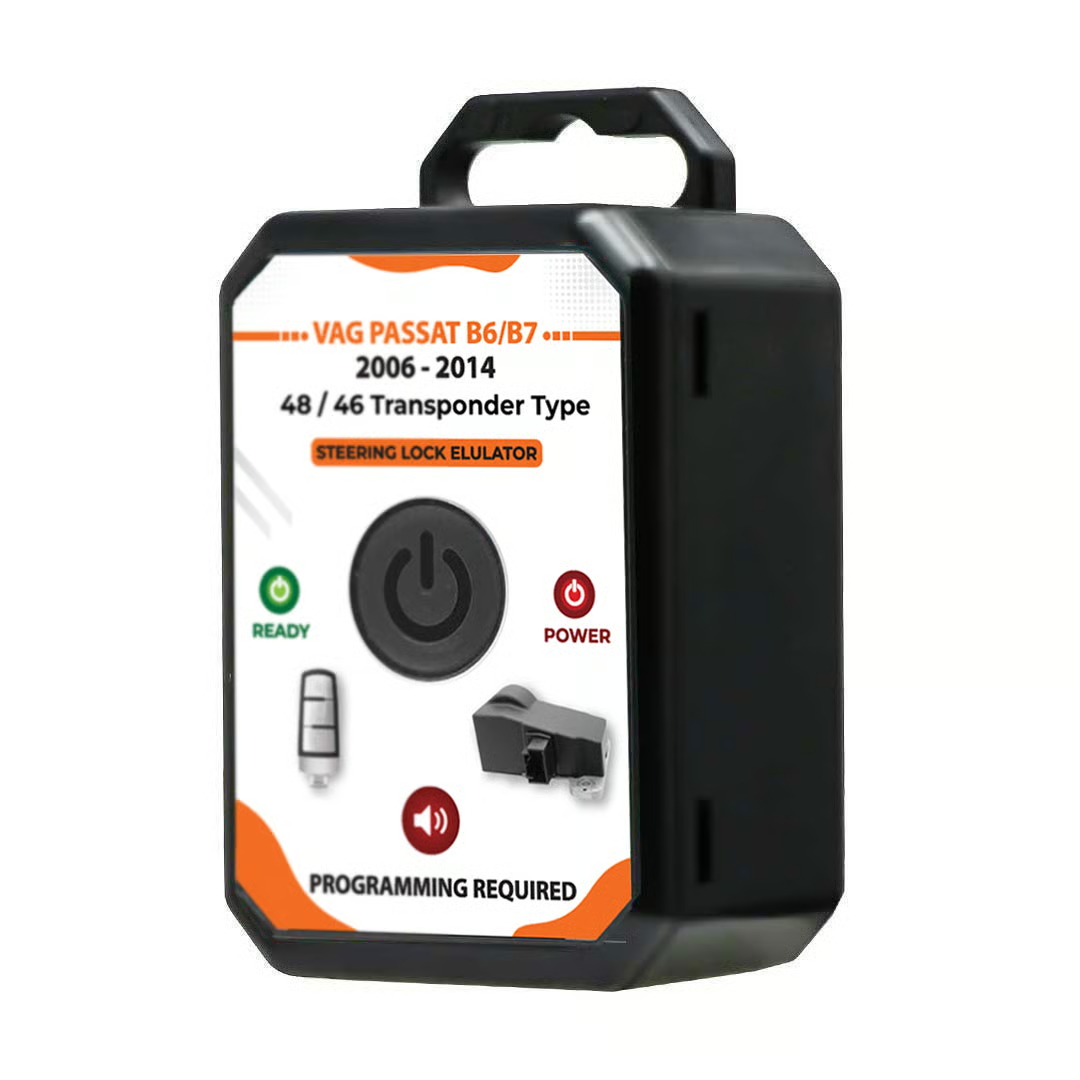

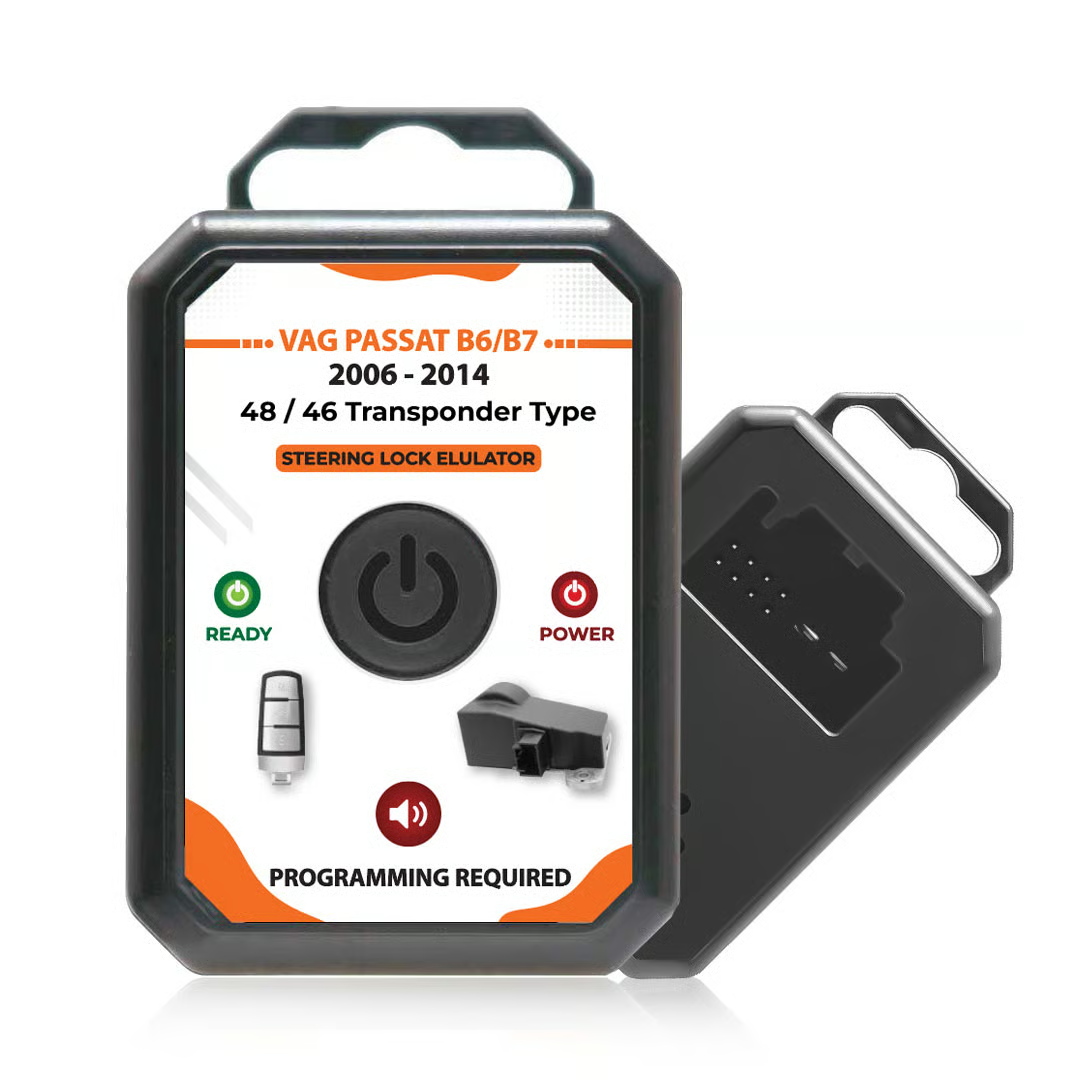

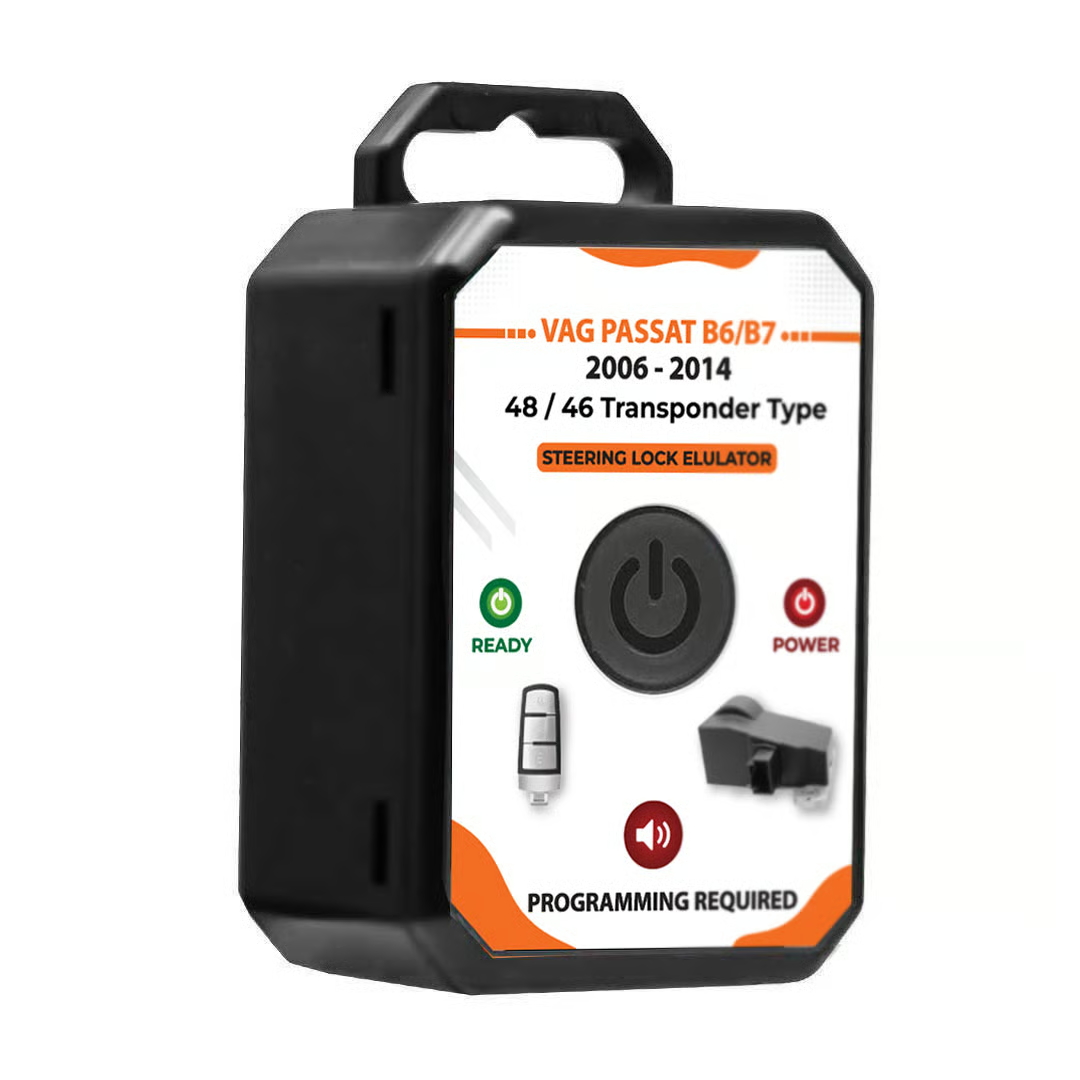

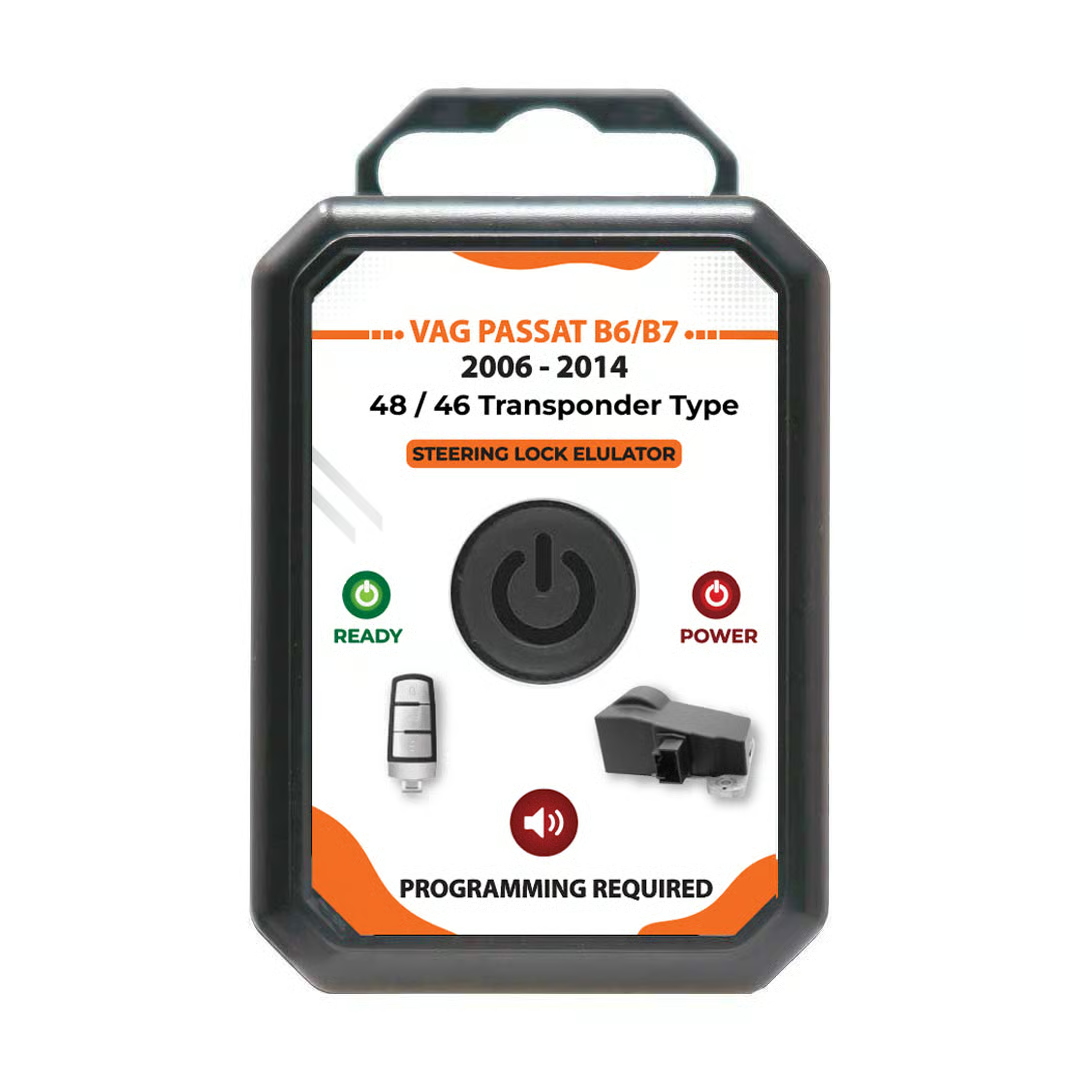

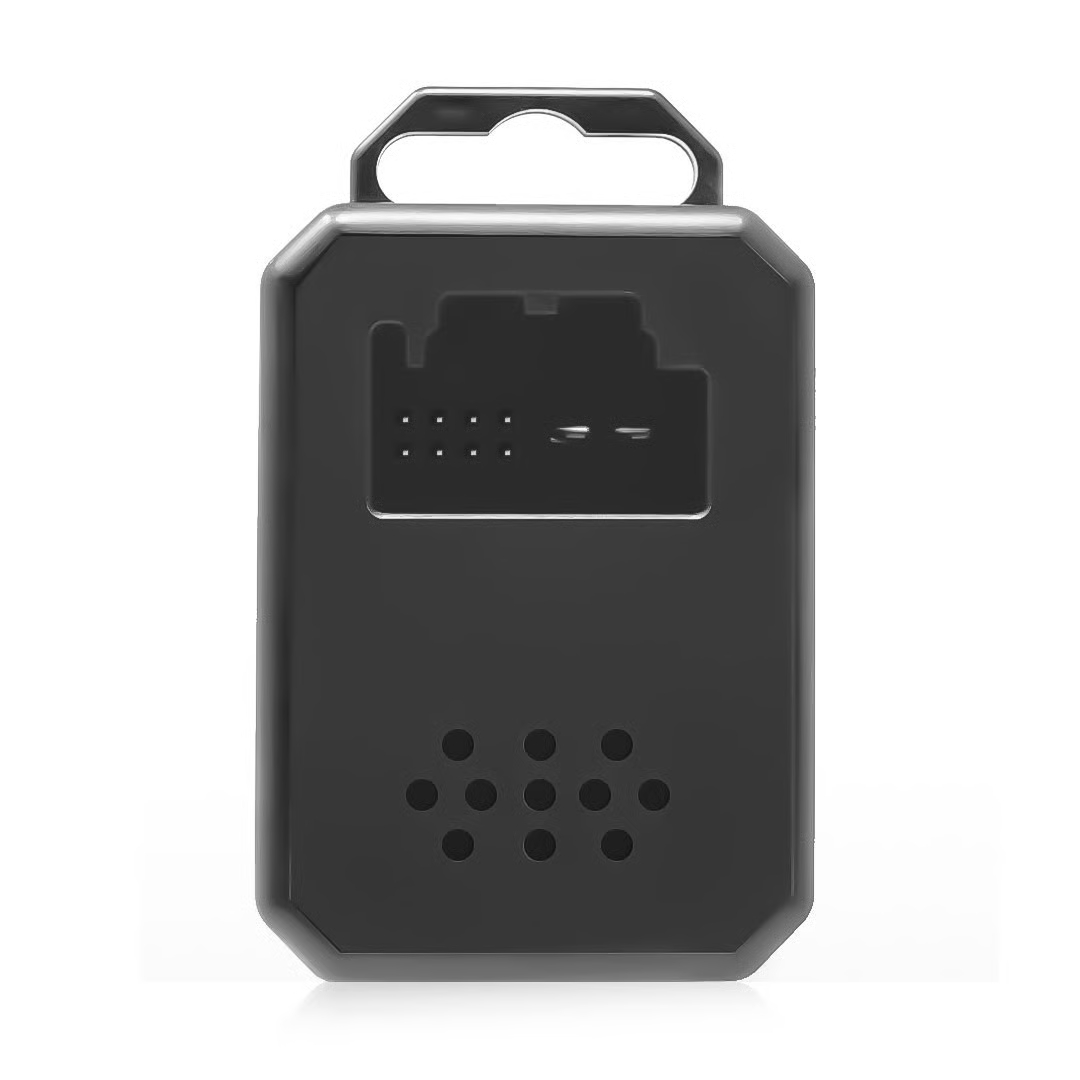

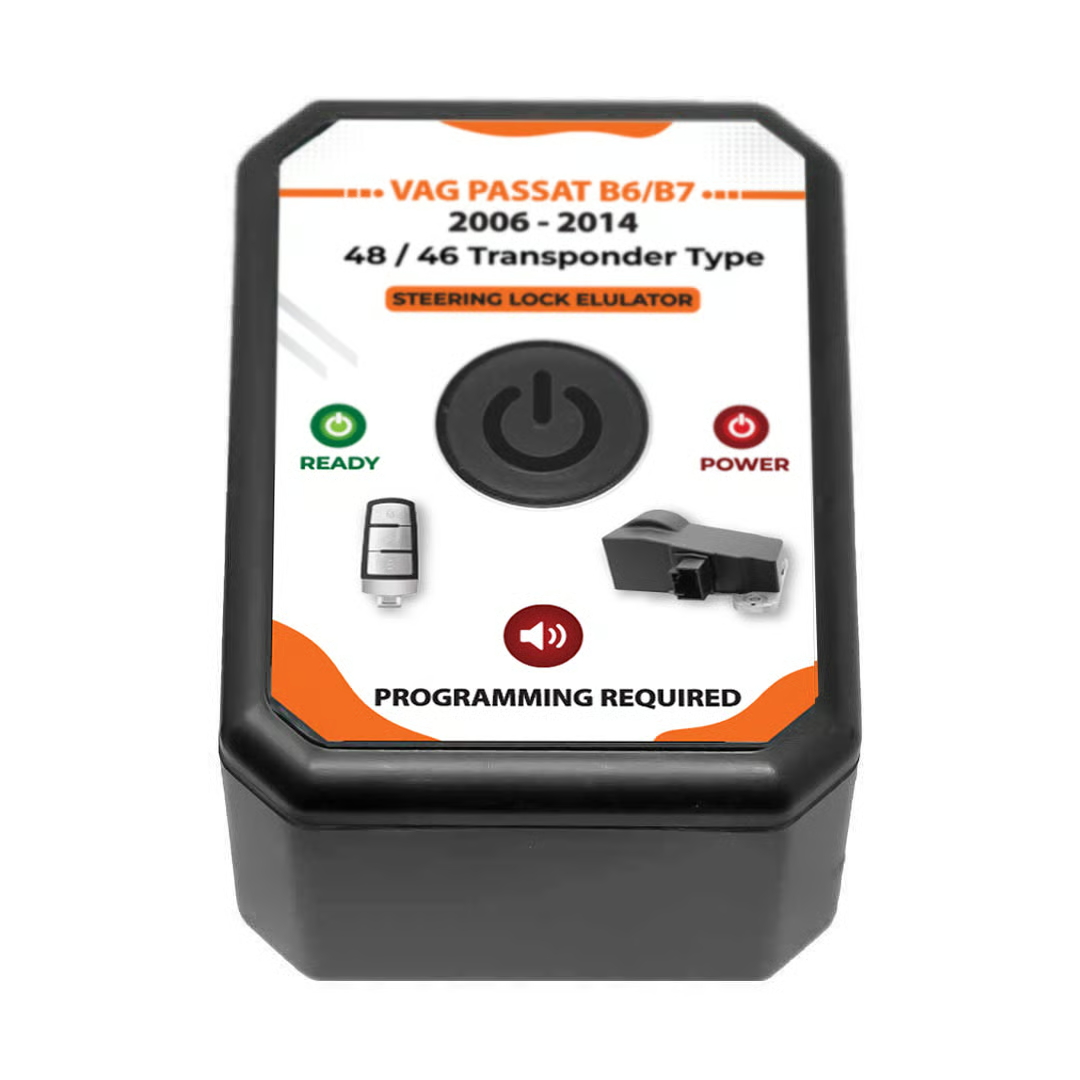

New Volkswagen Passat ( B6 / B7 ) 2006-2014 MEGAMOS 48 / 46 Type Steering Lock Emulator With lock Sound High Quality

Volkswagen VW Emulator Specs:

Condition: New

Note: programming required with Volkswagen Passat B6 Emulator Connection Adapter
Needs to be connected to the old original ESL which you can remove after programming is completed. Programming successfully means IMMO OFF of the car

Volkswagen VW Emulator Fitments:

• Volkswagen Passat 2006-2014

Volkswagen VW Emulator Steering Lock Problem Is One Among The Foremost Frequent Problems In Volkswagen Passat ( B6 / B7 ) Dealer Need To Order New Steering Lock And Program It Which Is Just Too Much Costly And Required While Of Waiting.

• Electronic Steering Lock vw Emulator Will Fix Your Steering Lock Malfunction Error, And Therefore The vw Esl Elv Universal Steering Lock Emulator Will Bypass vw Elv always.

VW Passat cars, coverage from 2006 and up to 2014. Emulates electronic steering lock module which incorporates steering lock module itself and key reader (base station) for Megamos-48 keys. Emulator replaces both. Must store IMMODATA, ESL_ID and KEY_ID before usage. Side effect – car can be started without valid transponder key using any suitable keyblank which simply fits into key slot.

Volkswagen VW Emulator Notes:

• If The car has a faulty steering lock. It is not starting
• The key should be out of the ignition slot before you remove the comfort

Volkswagen VW Emulator Installation:

• Remove the comfort of the car located in front of the 1st passenger seat.
• Simple steps needed to program it and get it working
• Read the eerprom ST-M95320 in the comfort by any device supporting it( vvdi prog, orange 5, .....)
• Save that dump file and write it on the eeprom of the emulator.
• We need the original ELV to do synchronization with our MK3 emulator by the MK2358 connection adapter
• After connecting the OBD plug and the original and mk3 emulators, the green and red light start flashing for 2-3 minutes before the green light works alone
• Plug the MK3 emulator in place of the original ELV which is not needed anymore.
• Return the comfort to its place in the car.
• The car starts successfully.

Volkswagen VW Emulator Wiring Diagram:

Volkswagen VW Original ELV:

Important Note

1- Megamos 48 Transponder Type:
After Connecting The Mk3 Emulator, The Car Becomes Immo Off, And It Is Possible To Program New Keys Through The Comfort Module.
2-proximity Remote Key; 46 Transponder Type:
After Applying Mk3 Emulator The Car Becomes Immo Off, And You Will Not Be Able To Program Any New Keys Until You Reinstall The Original Steering Lock.
