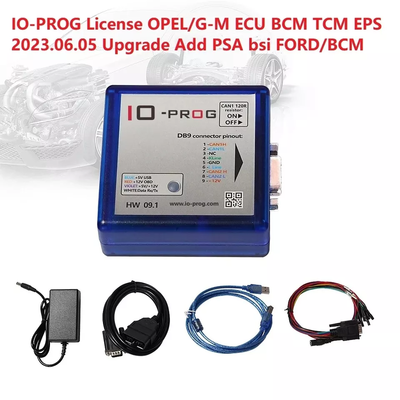

IO PROG Full Version PSA io Terminal Original IO-PROG New license Added for Ford IO PROG Reading E-C-U Programer for GM/Opel

Note!!!!!!!!!

if you just want chip to upgrade your upgarde your old version and full version io terminal, we have upgrade board can add PSA BSI function for your io prog, please contact us

I/O Terminal is a software and hardware solution designed for work with a great number of E-C-Us, automatic transmissions, BSI installed in for VAG, for Mitsubishi, for Mazda, for Ford, for Nissan, for Subaru, for Suzuki, for Opel, for Volvo, for Alfa Romeo, for Fiat, for Jaguar, for Land Rover, for Lancia, for Maseratti, for Hyundai, for Kia, for Daewoo and other vehicles using the OBD-II data link connector.

I/O Terminal Advantages
Combination of K-line and CAN interfaces provides ideal software compatibility without acquiring an expensive J2534 device Reading and flashing of FLASH and EEPROM memory image using the diagnostic connector link.
Checksums testing and correction. Safe reading and flashing

Licensing
The software is marketed on a module basis. Each module is a separate program which functions independently with one joint adapter. You can download and use only the software you have licenses on. Licenses are stored on special cards which are to be inserted in the special adapter slot before the software use. Some license can be recorded on one card, others require separate recording.

Newly added license as below:

MULTITOOL PSA BSI
Siemens D76F0018+95160 KLINE (BSI-E0X-00/BSI-F0X-00); EEPROM 95160 R/W, show PIN;
Siemens 1L00M+95128/95256CAN (BSI-S0X-00); EEPROM 95128/95256 R/W, show PIN, 9S12DP512 FLASHR/W;
Continental SC667050+95256CAN (BSI-Q0X-00); EEPROM 95256 R/W, show PIN, SC667050 FLASH R/W;
Valeo 4L00M+95128/25128CAN (BSI2004-P0X-00); EEPROM 95128/25128 R/W, show PIN, 9S12DP512 FLASH R/W;
Valeo 2M48H+24C128CAN (BSIEV-X0X-00); EEPROM 24C128 R/W, show PIN, 9S12XEP768 FLASH R/W;
Valeo SC667152+95256CAN (BSI-N0X-00); EEPROM 95256 R/W, show PIN, SC667152 FLASH R/W;
Johnson Controls easy CAN4+29LV400+95128 CAN (BSI2004-H0X); EEPROM 95128 R/W, show PIN,29LV400BB FLASH R/W;
Johnson Controls easy CAN4F1M-32+95128CAN (BSI04EV-K0X); EEPROM 95128 R/W, show PIN,
Johnson Controls easy CAN4F1M-32FLASH R/W; SPC560B60+95128 Support list as below:CAN (BSI04EV2-KEX);
EEPROM 95128 R/W, show PIN, SPC560B60 FLASH R/W

MULTITOOL FORD/BCM
for FORD LEAR BCM MC9S12XEP768. MC9S12XEP768
ln addition, fixed the bug that for opel/GMDelphi BCM could not read.
for OPEL BCM DELPHI 70F3238 + 93C86
for OPEL BCM DELPHI 70F3379 + 93C86
for OPEL BCM DELPHI 70F3533/70F3634:

BASIC PACKET:MULTITOOL +OPEL/GM E-C-U LICENSE

MULTITOOL OPEL/GM ECU
Reading/writing of OPEL/GM E-C-Us by CAN (OBD or wired on the bench) . Also software has bootpin recovery mode.

Supported OPEL/GM E-C-U types:
* ACDELCO E83 MPC5565 FLASH R/W. CAN (OBD) /BOOTPIN RECOVERY;
* ACDELCO E78 MPC5566 FLASH R/W. CAN (OBD) /BOOTPIN RECOVERY;
* ACDELCO E87 MPC5565 FLASH R/W. CAN (OBD) /BOOTPIN RECOVERY;
* ACDELCO E39 MPC5566 FLASH R/W. CAN (OBD) /BOOTPIN RECOVERY;
* ACDELCO E39A MPC5566 FLASH R/W.CAN (OBD) / BOOTPIN RECOVERY;
* ACDELCO E98 MPC5674 FLASH R/W.CAN (OBD) / BOOTPIN RECOVERY;
* DELPHI DCM3.7AP MPC5566 FLASH R/W.CAN (OBD);
* DELPHI DCM3.7AP R5F72544 FLASH+DATAFLASH R/W.CAN (OBD);
* DELPHI DCM3.7AP R5F72513 FLASH+DATAFLASH R/W.CAN (OBD)
* ACDELCO E37 M58BW016DB FLASH R/W.CAN (OBD);
* ACDELCO E38 AM29BDD160GB FLASH R/W.CAN (OBD);
* ACDELCO E92 MPC5674 FLASH R/W.CAN (OBD) / BOOTPIN RECOVERY;
* ACDELCO E80 MPC5676 FLASH R/W.CAN (OBD) / BOOTPIN RECOVERY;
* ACDELCO E82 MPC5676 FLASH R/W.CAN (OBD) / BOOTPIN RECOVERY;
* ACDELCO E67 S29CD016 FLASH R/W.CAN (OBD);
* ACDELCO (BOSCH)E84MPC5676 FLASH R/W.CAN (OBD);
* EEPROM DUMP VIEWER, EDITOR.

New liecense added full Opel license version as below:
MULTITOOL for OPEL BCM
Supported BCM/BSI types
for OPEL DELPHI BCM 70F3238+93C86 CAN . EEPROM 93C86 R/W, show PIN, reset PIN. 70F3238 FLASH R/W;
for OPEL DELPHI BCM 70F3379+93C86 CAN . EEPROM 93C86 R/W, show PIN, reset PIN. 70F3379 FLASH R/W;
for OPEL DELPHI BCM 70F3633 CAN . 70F3633 DATA & PROGRAM FLASH R/W, show PIN, reset PIN;
for OPEL/GM BOSCH BCM 70F3469+24C16.70F3469 FLASH R/W. EEPROM 24C16 R/W show PIN, reset, change odometer, change VIN;
for OPEL/GM BOSCH BCM 70F3385+24C16.70F3385 FLASH R/W. EEPROM 24C16 R/W show PIN ,reset, change odometer, change VIN;
for OPEL/GM BOSCH BCM 70F3558+24C32.70F3558 FLASH R/W. EEPROM 24C32 R/W show PIN, reset,change odometer, change VIN;
for OPEL/GM CONTINENTAL BCM 70F3469+95160(25160). 70F3469 FLASH R/W. EEPROM 95160(25160) R/W show PIN, reset, change odometer, change VIN;
for OPEL/GM CONTINENTAL BCM 70F3558+95320(25320) .70F3558 FLASH R/W. EEPROM 95320(25320) R/W show PIN, reset, change odometer, change VIN.

MULTITOOL for OPEL/GM TCM
Reading/writing for OPEL/GM TCM 6T30, 6T35, 6T40, 6T45, 6T50, 6T70, 6T75, 6T80, 6L45, 6L50, 6L80, 6L90 via CAN (OBD or wired on the bench).
Supported for OPEL/GM TCM types:
TCM 6T30, 6T35, 6T40, 6T45, 6T50 AM29BDD160GB FULL FLASH R/W. CAN (OBD); TCM 6T70,6T75,6T80,6L45,6L50,6L80,6L90
FULL M58BW016DB FLASH R/W. CAN (OBD).

MULTITOOL OPEL/GM EPS
Reading/writing of OPEL/GM EPS modules via CAN (OBD or wired on the bench).
EPS BOSCH 70F3187+95080 70F3187 FLASH R/W 95080 EEPROM R/W. CAN (OBD).
