Product Code:
31002 Weight:0.5KgCategories: I O Terminal
Manufacturer | I/O Terminal |
Warranty | 1 year |
Condition | New |
Original | Yes |
Weight | 0.5 Kg |
Manufacturer | I/O Terminal |
Condition | New |
Note: - you need to buy activation in order to use the functions of this device.
- if you are planning to order a software activation, make sure to request a Free Blank SimCard so you can install the software activation on it, because a Blank SimCard is not included with the device.

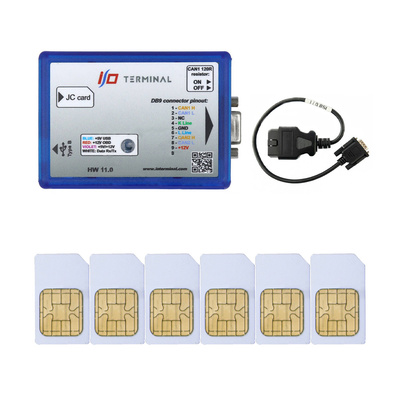

Package including:

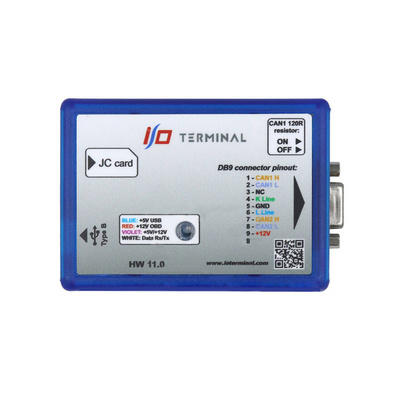

- I/O TERMINAL MULTI TOOL.
- I/O IO Terminal OBD Cable for MultiTool.
Software for I/O TERMINAL hardware owners. Software reads, writes memories of various car ECUs and other car modules made by diferent manufacturers. Software and documents can be downloaded from DOWNLOADS Link.
Abbrevations :
R – Read
W – Write
Supported ECUS and functions :
OPEL/GM ECU ACTIVATION modules list and functions
1-ACDELCO E83 MPC5565 FLASH R/W. CAN (OBD) /BOOTPIN RECOVERY.
2-ACDELCO E78 MPC5566 FLASH R/W. CAN (OBD) /BOOTPIN RECOVERY.
3-ACDELCO E87 MPC5565 FLASH R/W. CAN (OBD) /BOOTPIN RECOVERY.
4-ACDELCO E39 MPC5566 FLASH R/W. CAN (OBD) /BOOTPIN RECOVERY.
5-ACDELCO E39A MPC5566 FLASH R/W.CAN (OBD) / BOOTPIN RECOVERY.
6-ACDELCO E98 MPC5674 FLASH R/W.CAN (OBD) / BOOTPIN RECOVERY.
7-DELPHI DCM3.7AP MPC5566 FLASH R/W.CAN (OBD).
8-DELPHI DCM3.7AP R5F72544 FLASH+DATAFLASH R/W.CAN (OBD).
9-DELPHI DCM3.7AP R5F72513 FLASH+DATAFLASH R/W.CAN (OBD).
10-ACDELCO E37 M58BW016DB FLASH R/W.CAN (OBD) .
11-ACDELCO E38 AM29BDD160GB FLASH R/W.CAN (OBD) .
12-ACDELCO E92 MPC5674 FLASH R/W.CAN (OBD) / BOOTPIN RECOVERY.
13-ACDELCO E80 MPC5676 FLASH R/W.CAN (OBD) / BOOTPIN RECOVERY.
14-ACDELCO E82 MPC5676 FLASH R/W.CAN (OBD) / BOOTPIN RECOVERY.
15-ACDELCO E67 S29CD016 FLASH R/W.CAN (OBD) .
16-ACDELCO (BOSCH) E84 MPC5676 FLASH R/W.CAN (OBD)
17-EEPROM DUMP VIEWER,EDITOR.
OPEL/GM TCM ACTIVATION modules list and functions
1-TCM 6T30,6T35,6T40,6T45,6T50 FULL AM29BDD160GB FLASH R/W. CAN (OBD).
2-TCM 6T70,6T75,6T80,6L45,6L50,6L80,6L90 FULL M58BW016DB FLASH R/W. CAN (OBD).
OPEL/GM EPS ACTIVATION modules list and functions
1-EPS BOSCH 70F3187+95080 70F3187 FLASH R/W 95080 EEPROM R/W. CAN (OBD).
2-EPS BOSCH 70F3485 70F3485 FLASH R/W DATAFLASH R/W. CAN (OBD).
FORD BCM ACTIVATION modules list and functions
1-FORD CONTINENTAL/SIEMENS BCM 4L91N/0L01Y (9S12DT256) CAN . 9S12DT256 EEPROM R/W , 9S12DT256 FLASH R/W.
2-FORD CONTINENTAL/SIEMENS BCM 4L00M (9S12DP512) CAN . 9S12DP512 EEPROM R/W, 9S12DP512 FLASH R/W.
3-FORD CONTINENTAL/SIEMENS BCM 70F3384/70F3637 CAN . 70F3384/70F3637 DATA & PROGRAM FLASH R/W .
4-FORD CONTINENTAL BCM MPC5607 CAN . MPC5607 DATA & PROGRAM FLASH R/W.
5-FORD DELPHI BCM M30882F+95320. M30882F DATA & PROGRAM FLASH R/W. EEPROM 95320 R/W.
6-FORD DELPHI BCM R5F64524/R5F64525. R5F64524/R5F64525 DATA & PROGRAM FLASH R/W.
FIAT BSI 2 ACTIVATION modules list and functions
1-FIAT DELPHI BSI 70F3237+93C86 CAN . EEPROM 93C86 R/W ,show PIN, show KEY preparartion data. 70F3237 FLASH R/W.
2-FIAT DELPHI BSI 70F3379+93C86 CAN . EEPROM 93C86 R/W ,show PIN, show KEY preparartion data. 70F3379 FLASH R/W.
3FIAT DELPHI BSI 70F3632/70F3633 CAN . 70F3632/70F3633 DATA & PROGRAM FLASH R/W ,show PIN, show KEY preparartion data.
4-FORD DELPHI BSI 70F3379+93C86 CAN . EEPROM 93C86 R/W ,show PIN, show KEY preparartion data. 70F3379 FLASH R/W.
5-FIAT DELPHI BSI 70F3556 CAN . 70F3556 DATA & PROGRAM FLASH R/W.
6-FIAT DELPHI BSI 70F3557 CAN . 70F3557 DATA & PROGRAM FLASH R/W.
OPEL BCM ACTIVATION modules list and functions
1-OPEL DELPHI BCM 70F3238+93C86 CAN . EEPROM 93C86 R/W ,show PIN, reset PIN. 70F3238 FLASH R/W.
2-OPEL DELPHI BCM 70F3379+93C86 CAN . EEPROM 93C86 R/W,show PIN, reset PIN. 70F3379 FLASH R/W.
3-OPEL DELPHI BCM 70F3633 CAN . 70F3633 DATA & PROGRAM FLASH R/W ,show PIN, reset PIN.
4-OPEL DELPHI BCM 70F3634 CAN . 70F3634 DATA & PROGRAM FLASH R/W ,show PIN, reset PIN.
5-OPEL/GM BOSCH BCM 70F3469+24C16.70F3469 FLASH R/W. EEPROM 24C16 R/W show PIN,reset,change odometer,change VIN.
6-OPEL/GM BOSCH BCM 70F3385+24C16.70F3385 FLASH R/W. EEPROM 24C16 R/W show PIN,reset,change odometer,change VIN.
7-OPEL/GM BOSCH BCM 70F3558+24C32.70F3558 FLASH R/W. EEPROM 24C32 R/W show PIN,reset,change odometer,change VIN.
8-OPEL/GM CONTINENTAL BCM 70F3469+95160(25160). 70F3469 FLASH R/W. EEPROM 95160(25160) R/W show PIN,reset,change odometer,change VIN.
9-OPEL/GM CONTINENTAL BCM 70F3558+95320(25320) .70F3558 FLASH R/W. EEPROM 95320(25320) R/W show PIN,reset,change odometer,change VIN.
PSA BSI ACTIVATION modules list and functions
1-Siemens D76F0018+95160 KLINE (BSI-E0X-00/BSI-F0X-00) . EEPROM 95160 R/W , show PIN
2-Siemens 1L00M+95128/95256 CAN (BSI-S0X-00). EEPROM 95128/95256 R/W, show PIN, 9S12DP512 FLASH R/W
3-Continental SC667050+95256 CAN (BSI-Q0X-00). EEPROM 95256 R/W, show PIN, SC667050 FLASH R/W
4-Valeo 4L00M+95128/25128 CAN (BSI2004-P0X-00).EEPROM 95128/25128 R/W, show PIN, 9S12DP512 FLASH R/W
5-Valeo 2M48H+24C128 CAN (BSIEV-X0X-00) . EEPROM 24C128 R/W, show PIN, 9S12XEP768 FLASH R/W
6-Valeo SC667152+95256 CAN (BSI-N0X-00). EEPROM 95256 R/W, show PIN, SC667152 FLASH R/W
7-Johnson Controls easyCAN4+29LV400+95128 CAN (BSI2004-H0X). EEPROM 95128 R/W, show PIN, 29LV400BB FLASH R/W
8-Johnson Controls easyCAN4F1M-32+95128 CAN (BSI04EV-K0X). EEPROM 95128 R/W, show PIN, easyCAN4F1M-32 FLASH R/W
9-Johnson Controls SPC560B60+95128 CAN (BSI04EV2-KEX). EEPROM 95128 R/W, show PIN,SPC560B60 FLASH R/W
VAG DSG ACTIVATION modules list and functions
1-TEMIC DQ250 MPC555+95160 KLINE EEPROM 95160 R/W, MPC555 FLASH R/W
SMART SAM ACTIVATION modules list and functions
1-3L80R (MC9S12B128) CAN , EEPROM R/W, FLASH R/W
2-0L01Y (MC9S12DG256) CAN, EEPROM R/W, FLASH R/W
3-2K79X (MC9S12DG256) CAN, EEPROM R/W, FLASH R/W
VOLVO SIMCARD modules list and functions aivalable on multitool software. (other options of VOLVO aivalable on separate VOLVO TOOL software)
1-DDM/PDM (70F3233+95080) CAN , 95080 EEPROM R/W, 70F3233 FLASH R/W
2-DDM/PDM (70F3371/70F3624) CAN, DATAFLASH R/W, FLASH R/W
3-DDM/PDM (70F3373/70F3626) CAN, DATAFLASH R/W, FLASH R/W
Note: you need to buy activation in order to use the functions of this device.
