The XTOOL IP919PRO is a powerful diagnostic tool that supports a wide range of vehicles, including those with the latest DOIP and CANFD protocols. It offers 3-year free updates, ensuring you stay up-to-date with the latest vehicle technology. Whether you're a mechanic in a busy shop or a car enthusiast looking to maintain your vehicle, the XTOOL IP919PRO is the perfect companion for all your diagnostic and programming needs.
XTOOL INPLUS IP919Pro Highlights:
1. Upgrade version of XTOOL INPLUS IP919
2. Support wifi & Wired Connection
3. Global version. No IP limitation
4. OE-Level Full System Diagnostic with Topplogy Module Mapping
5. 42+ Maintenance Services & Full Special Functions
6. Advanced ECU Coding & Advanced ECU programming capabilities tailored for BBV vehicles.
7. Support CAN FD & DoIP Protocols
8. PMI & VAG Guided Functions
9. BMW Guide Functions
10. Advanced Hardware: 10.1-inch HD touchscreen with Android 10 system. 8GB+128GB storage. 6400 mAh, 7.2V rechargeable battery.
11. 3 Years Software Udpate & Support 14+ Languages
12. Key Programming with KC100/KC501: IMMO service for disabling lost vehicle keys and programming replacement key fobs. Supports programming new key fobs, reading PIN codes, checking the number of keys, generating keys, adding keys, and handling all key lost situations.
13. Auto Scan & CAN Fast Scan
14. Live Data: 8-IN-1 live data graphing, live data recording & playback, export data as CSV files.
15. Flash Hidden Functions: ECU configuration for activating hidden vehicle functions.
16. Advanced Function: Support Extension Modules(need to buy additionally)
Videoscope (Mainly applied to check unseen parts of engine, fuel tank, braking system, etc.)
KC501 (For Benz infrared key programming, for VW 4th, 5th IMMO, for eeprom, for chips programmer)
KC100 (For VW 4th and 5th immo )
KS01(For Toyota all keys lost programmer )
M822( For Toyota 8a/4a all keys lost programmer)
M821(For Mercedes-Benz All Keys Lost)
SK1(Toyota 8A/4A Smart Key Programming)
XTOOL INPLUS IP919 vs XTOOL INPLUS IP919PRO
XTOOL Product Comparison IP Series / D Series / X100 Series
OE-Level Full System Diagnostic
XTOOL IP919PRO car diagnostic tool can dive into every corner of the systems, such as TCM, ECM, EPS, PDM, BCM, etc. It offers code reading/clearing, live data graphing, freeze frame, ECU info.
DOIP / CANFD Protocol & FCA AutoAuth
XTOOL IP919PRO Car Diagnostic Scan Tool Not Only Support DOIP & CANFD Protocol, But Also Permit FCA AutoAuth, which supports diagnostics on FCA vehicles without identity registration and authentication.
ECU Configuration
ECU Configuration Unlock hidden features and customize your car with ECU Configuration function. Allows to activate the higher-level car functions.
Advanced ECU Coding
ECU coding, matching the components, enhancing the vehicle performance. Includes adapting to different engines, transmissions, car body, gearing, and different fuel qualities.
Bi-directional Control (Active Test).
XTOOL IP919PRO Wireless diagnostic scan tool can send commands to vehicles' modules and receive information from the vehicle ECU to perform active tests, like EVAP Tests /Compression Tests / Cooling Fan Test / ABS Pump Cycling / Windows & Wipers & Sunroof & Doors on and off, to efficiently and accurately pinpoint fault causes for home DIYers, workshops mechanics, and garages owners.

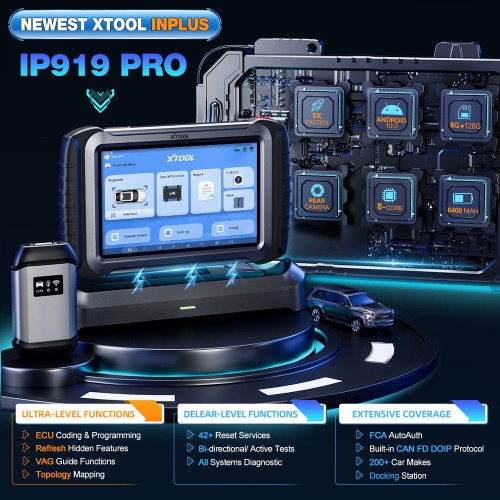

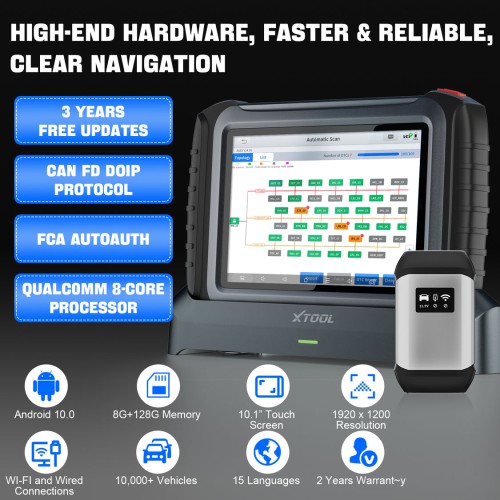

High-level Hardware Support
Octa-core, Qualcomm 660 Processor, 10.1 Inches Screen Size, 1920*1200 Resolution, Android 10.0, 128G Memory, CANFD/DOIP Protocol, FCA AutoAuth, Topology Mapping.
8-IN-1 Live Data Graphing
Allows you to view the live PID(parameter identification data) data of vehicle's computer module(s) in text, graph to check the status of various sensors.Live Data Combine, 8-IN-1 Live Data PIDs, Live Data Playback & Record, Export as CSV Files.

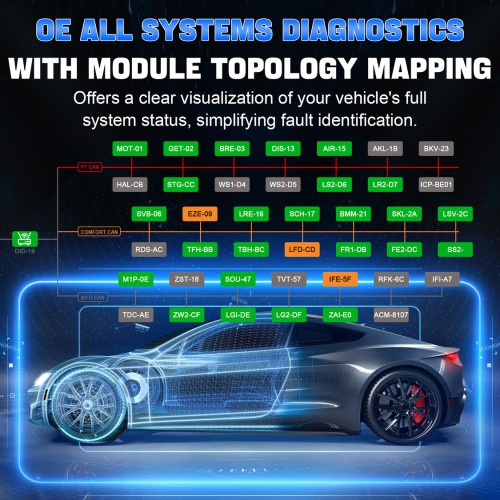

Diagnostic Smart Topology Map
IP919PRO is equipped with an intelligent topology map, which allows for a more intuitive visualization of the system condition and a quick identification of which diagnostic line the faulty system belongs to.
Charging dock
The device has a charging base, which can be more convenient and fast to use the device.
We support Guided function, PMI, coding, ADAS, BMW Test Plan, Online programming, ECU Configurations, etc.
Supported Languages:
English, German, Spanish, French, Polish Portuguese, Russian, Italian, Turkish, Chinese Traditional, Japanese, Korean, Vietnamese, Arabic, Finnish
Product Functions:
Basic OBDⅡ function: Auto VIN, Read ECU Infomation, Read code, Clear code, Read live data, Read freeze frame, Actuation test.
Other function: Common special features, Online programming, BMW Test Plan, PMI, ADAS Calibration, ECU Configurations, Guided function, Coding.
Special function：Oil Light Reset, ECU Configuration, EPB, A/F settings, SAS, Start/Stop Reset, DPF, Airbag Repair, BMS Reset, Instrument Cluster, Throttle, Language Change, TPMS Reset, Transporter Mode, ABS Bleeding, Tire Upgrade, Injector Coding, Gear Learning, Key Programmer, Power Balance, Gearbox Match, EEPROM, Suspension, Electronic Pump Activation, Window Initialization, ADAS Calibration, Seat Calibration, Speed Limit, Headlight, Clutch Adaption, SRS, AdBlue Reset, EGR Relearn, FRM Reset, Nox Reset, Write VIN, VGT Relearn, HV Battery, A/C Relearn, Rain/Light Sensor, Control unit Reset, Odometer Read.
Supported Vehicle Brands:
| Abarth | Alfa romeo | Astonmartin | Audi |
| Bentley | Benz | Benz-transport | BMW |
| Bugatti | Citroen | Dacia | Ferrari |
| Fiat | Ford(EU) | Jaguar | Lamborghini |
| Lancia | Landrover | Maserati | Maybach |
| Mini | Opel | Peugeot | Porsche |
| Renault | Rols-royce | Saab | Seat |
| Skoda | Smart | Vauxhall | Volvo |
| VW | VW-CV | Acura | Daewoo |
| Daihatsu | Honda | Hyundai | Hyundaicv |
| Infiniti | Isuzu | Kia | Lexus |
| Luxgen | Mazda | Mitsubishi | Nissan |
| Nissan gtr | Perodua | Proton | Renaultsamsung |
| Scion | Ssangyong | Subaru | Suzuki |
| Tlisuzu | Toyota | Buick | Cadillac |
| Chevrolet | Chrysler | Dodge | Ford(USA) |
| GM | GMC | Hummer | Jeep |
| Lincoln | Saturn | Baojun | Brilliance |
| BYD | Changan ford | Change | Chery |
| China mazda | Dfciroen | Dfpeugeot | Faw audi |
| Faw vw | Gac gongw | Geely | Geely monjaro |
| Great wall | JAC | Lifan | Maxus |
| MG | Roewe | Sgmw | Zhonghua |
Product Specifications:
| Items | Description |
| Operating System | Android 10 |
| Processor | 2.2GHz+1.8GHz Octa-core Processor |
| Memory | 8G RAM, 128 ROM |
| Display | 10.1-inch touch screen with 1920×1200 resolution |
| Communication Method | Wired/wifi |
| Connectivity | DB15 TO VAG
USB 2.0
WIFI 2.4/5G |
| Sensors | Gravity Accelerometer, Ambient Light Sensor |
| Auto Input/Output | Microphone, Speaker |
| Battery | 6400mAh, 7.2V lithium-polymer battery |
| Working Voltage | 9-18V |
| Operating Temperature | -10 to 40℃ |
| Storage Temperature | -40 to 60℃ |
| Humidity | <90% |
| Protocol compatibility | CANFD, DOIP，FCA |
| Weight | 8.32kg |
| L*W*H | 53*44*17 |

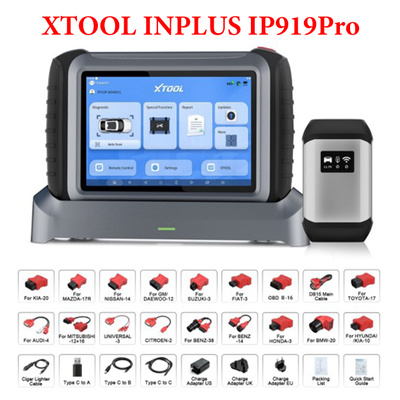

Package includes:
| Category | No. | Name | QTY |
| Host group | 1 | Tablet | 1 |
| 2 | VCI Box | 1 |
| 3 | Type C to Type_A Data Cable | 1 |
| 4 | Type C to Type_B Data Cable | 1 |
| 5 | Type C to Type_C Data Cable | 1 |
| 6 | PD Supply Charging Adapter US | 1 |
| 7 | Charging Adapter EU | 1 |
| 8 | Charging Adapter UK | 1 |
| 9 | Cigar Lighter Cable | 1 |
| Test connector | 1 | DB15 Main Cable | 1 |
| 2 | OBD II-16 | 1 |
| 3 | HONDA_3 | 1 |
| 4 | BMW-20 | 1 |
| 5 | BENZ-14 | 1 |
| 6 | BENZ-38 | 1 |
| 7 | TOYOTA-17 | 1 |
| 8 | MAZDA-17R | 1 |
| 9 | KIA-20 | 1 |
| 10 | HYUNDAI/KIA-10 | 1 |
| 11 | NISSAN-14 | 1 |
| 12 | GM/DAEWOO-12 | 1 |
| 13 | UNIVERSAL-3 | 1 |
| 14 | SUZUKI-3 | 1 |
| 15 | FIAT-3 | 1 |
| 16 | CITROEN-2 | 1 |
| 17 | AUDI-4 | 1 |
| 18 | MITSUBISHI-12+16 | 1 |
| Accessories 1 | 1 | Color Carton | 1 |
| 2 | Packing List | 1 |
| 3 | Quick Start Guide | 1 |
| 4 | Tool Case | 1 |
| Accessories 2 | 1 | Wireless Charger Dock | 1 |
| 2 | 12V Power Supply Charger Adapter | 1 |
| 3 | DC Charging Cable EU | 1 |
| 4 | DC Charging Cable UK | 1 |
| 5 | DC Charging Cable US | 1
|
