Yanhua CAN Filter for VW 35XX
Nowadays, many new Volkswagen meter data are unable to be read by OBD, so those who want to process meter data have no way to start. However, by installing Volkswagen meter filter, we can read the Volkswagen meter data for following modes listed below.
The prerequisite for installing the filter is that this device needs to have a liquid crystal driver module as shown below.
Supported brands include Jetta, Santana, Rapid, Polo and Lavida. The specific models are as follows
The first type:
Jetta: 31G 920 850B 31G 920 850D 31G 920 850C 31G 920 850E 34D 920 850B 31G 920 850G
Santana Hona: 34D 920
Santana: 34D 920 850B 31G 920 850F
Xinrui: 32D 920 850B 31G 920 850H
Polo: 6RD 920 860J 31G 920 850A (some special models)
Polo: 6RD 920 860G
Polo: 6RD 920 860H 34D 920 850A (some special models)
The second type:
Santana 34D 920 850A (special program)
Jetta 31G 920 850A (special program)
The third type:
Lavida 18D 920 860A
18D 920 850A (special type, there are two kinds)
The fourth type:
Lavida 18D 920 850A
18D 920 850A (if there is a special model, it is suitable for the third type)
The fifth type:
New Lavida 18D 920 870A
The sixth type:
870 870B
The seventh type:
Rapid 860 6VD 920 700 32D 920 860

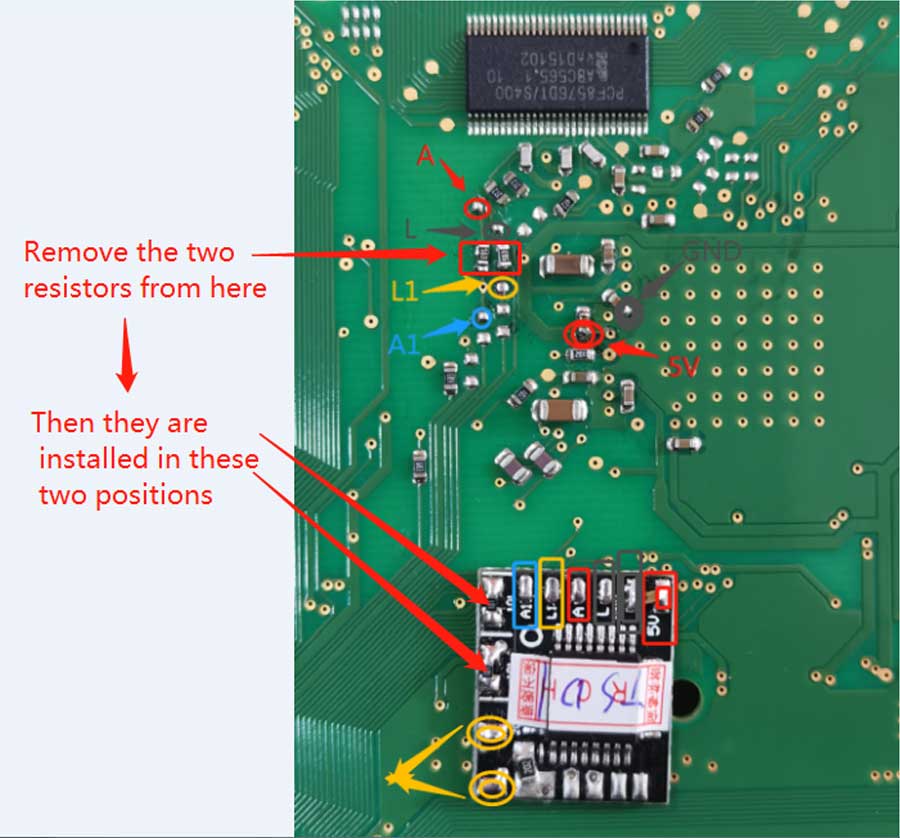

Different types of meters correspond to different filters. If data processing simulation is required, the corresponding filter must be selected. The installation diagram is as follows:
After the wiring is completed according to the diagram, the meter display simulation test can be performed.
Note: This operation is only used for the learning and communication of meter display analog, and the relevant data in the engine gearbox cannot be changed.
Package Includes:
1pc x Volkswagen 35XX Meter Filter
6pcs x wires
