2. lf you have other device which can read and write BMW DME ISN, you do not need the ACDP Module 3+B48 Interface Board)

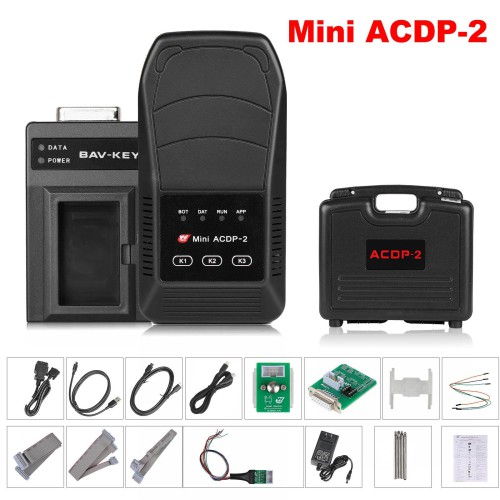

ACDP-2 Basic Module Features:
Yanhua Mini ACDP-2 supports 93/24/25/35/95 Series EEPROM in circuitprogramming(ICP) and on adapter board programming(OBP). This module is a necessary basic configuration for other modules.

Extended Functions: By expanding more adapters to achieve various functionsauch as ECU programming key programming/matching, ECU refresh.

The current adapters include: BMW CAS, BMW FEM/BDC, BMW DME, Meter/instrument, BMW Key refresh, BMW FRM(Footwell), BMW EGS(Gearbox), Fuiitsu CPU, VW MOB, Jaquar Land/Rover KVM, Porsche BCM, Volvo, etc.

Mini ACDP.2 Advantages:

1. No need removing chip, No need soldering, No need cutting line, No needlifting the pin.
2. USB direct connection, plug and play. wifi connection, wireless free.
3. Pin intelligent detection, Data reading and writing is safe and reliable.

ACDP BMW BDC2 IMMo Module 38 Function:

Supports adding key for all versions of BMW BDC2.
Enable keys, disable keys, reset starter motor, headlight height match
BMW BDC2 all key lost
BMW BDC2 Mileage Correction
BMW BDC2 Module Refresh
BMW BDC2 Module Copy Replacement
Supports original key and aftermarket key. Both 315Mhz (US) and 433MHz (EU).

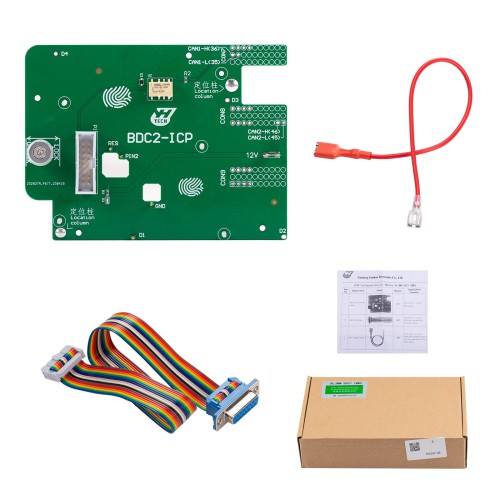

Just need to insert the interface board to the BDC2 module directly.
No annual fees or per-use charges one-time solution with zero hidden costs.

Notice: it does not support BMW G Series mileage correction currently

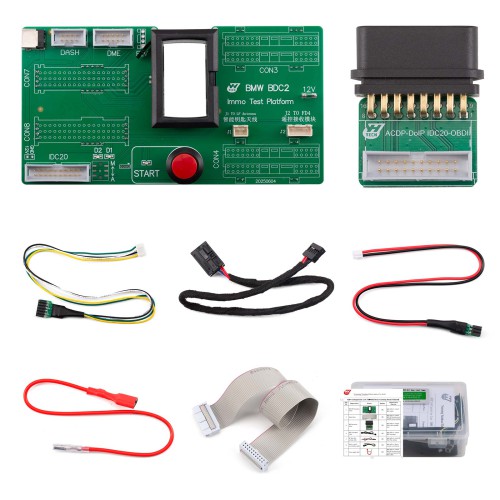

BMW BDC2 Key Learning Test Platform:
All-Key-Lost License Update: includes free software license updates for BMW BDC2 key learning (Module 38).
Module-Free Bench Learning: Program new keys on the bench without reinstalling the BDC2 module in the vehicle.
Emergency Function Testing: Enables ignition-on and emergency start testing to verify successful key learning.

Remote & Keyless Testing: Supports connection to smart antennas, lR boxes, and keyless systems for remote-only validation.
Cluster & DME integration: Expandable to test integration with instrument cluster and engine control units (DME).
Plug-and-Play interface Board: Dedicated board replaces cable harnesses efficient, safe, and straightforward.
Fully Compatible: Works with any ACDP-enabled device that supports Module 38.

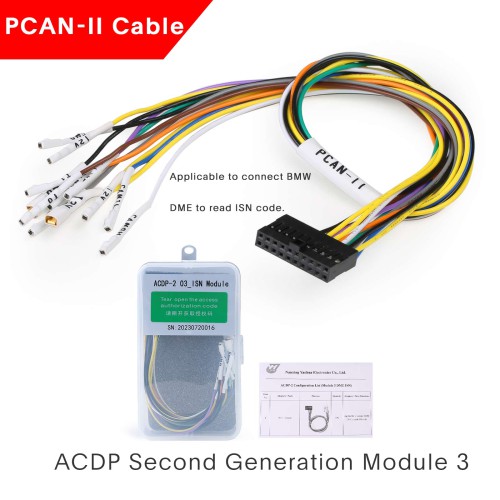

ACDP BMW ISN Module 3:

Support Reading/writing BMW DME ISN(Necessary when all-key-lost).

1. Support OBD/CAN reading BMWE chassis MSV80/MSV801,MSD80/MSD802,MSD81/MSD812, MSD851/MSD852 N62_TUE/N62_TUE2, MEV9N46/MEV9N46L, N46(MV1746), MSV70, MSS60, BMW R chassis
N12(MEV172), N14(MED172), N16(MEV1722D),N18(MEVD1722), N18(MEVD1727) and other DME ISN.
2. Support bench method to quickly read the DME ISN such as BMWN20/N55/838/B48(need to purchase interface board).
3. Support OBD mode to read some versions of the B48 and MSV90 enginecomputer ISN(need to purchase authorzation).

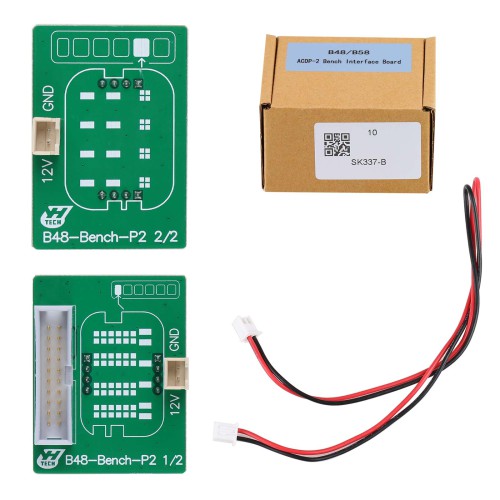

ACDP BMW B48/B58 Interface Board

1. Support all F/G chassis versions and all B48/858 DME which chip modle is SPC5777/TC298TP
2. No programming is required and the lSN is read in seconds
3. The special interface board connection method replaces the traditional plugging wire method, simple and efficient, safe and reliable

How to Enter the All Key Lost Menu In ACDP APP?

*BMW-> FEM/BDC->IMMO/Mileage-> BDC2 ICP+ OBD (F/G Chassis)-> Add Key (All key lost).

How to Do BMW BDC2 All Key Lost?

Step 1: Backup coding data

*Use Yanhua ACDP Module 3 and B48 Interface Board to backup EEPROM data

Step 2: Backup FAFP data

Step 3: Write lMMO data

Step 4: Write coding data

Step 5: Made dealer key

*After making the dealer key, turn on the ignition to do key match

Step 6: Write DME ISN

*Verify the key can start the car normally, then go to next step

Step 7: Reset EGS EWS(turn on ignition, but not start the car)

After finishing these steps, start the engine - both the key and vehicle should now function properly.

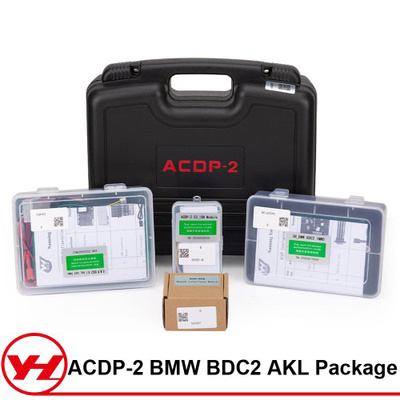

Package List
