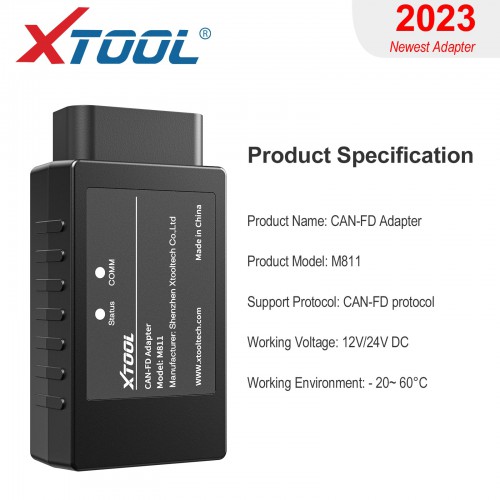

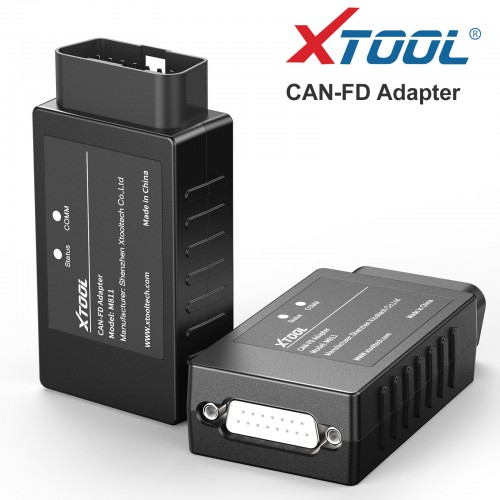

The CAN-FD adapter supports 2020 and newer model year vehicles using the Controller Area Network Flexible Data-Rate protocol, and is an extension to the original CAN bus protocol that was specified in ISO 11898-1.


Data rate transmits up to 5 times faster than the original CAN data allowing more data to be sent between modules required on newer vehicles when diagnosing ECUs and programming new modules.
This adapter simply replaces the standard OBD2 Connector on the AutoProPAD main data cable. No other software or hardware is required, once installed the adapter can be used with existing software and can be interchanged with the standard OBD2 connector.
2021+ Buick Envision
2020+ Cadillac CT4/CT5
2022 Cadillac XT4/XT5/XT6
2020+ Cadillac Escalade
2020+ Chevy Corvette
2021+ Chevy Tahoe
2022 Chevy Silverado
2022 Chevy Suburban
2022 GMC Sierra
2021-2022 GMC Yukon

Compatible with the following:

AutoProPAD Full
AutoProPAD G2
AutoProPAD G2 Turbo
