OBDSTAR P50 Airbag Reset Tool with CAN FD Adapter Support GM/ Hyundai/ Kia/ Toyota Bench Airbag Reset & SAS Reset Function

[US/EU/UK Ship] OBDSTAR P50 Airbag Reset Tool with CAN FD Adapter Support GM/ Hyundai/ Kia/ Toyota Bench Airbag Reset & SAS Reset Function

Product Code：

22795 Weight：2Kg

Categories: airbag reset tool

Price: $ 559.00

Quantity：

Buy Now

ADD TO CART

Add to Wishlist

Share this：

Product Specification

Manufacturer	OBDStar
Update	One year free online update
Warranty	1 year
Weight	2 Kg

Overview

[US/EU/UK Ship] OBDSTAR P50 Airbag Reset Tool with CAN FD Adapter Support GM/ Hyundai/ Kia/ Toyota Bench Airbag Reset & SAS Reset Function

OBDSTAR P50 Airbag Reset Tool SRS Reset Equipment with CAN FD Adapter
Supports Hyundai/Kia TC2xxx types, Toyota R7F7016443, R7F7016843 bench airbag reset
Supports one-click airbag reset for 86 brands and over 11600+ ECU part No.

OBDSTAR P50 Airbag Reset Tool with CAN FD Adapter

Description:

OBDSTAR P50 is the new generation of intelligent airbag reset equipment. With powerful functions and wide coverage, it covers 86 brands and 11600+ ECU part No., some MCU.
CANFD Adapter is designed for diagnosing ECU systems of cars complying with CANFD protocols. It's used with our company's tablets series products such as Key Master DP Plus. It's high performance and easy operation.

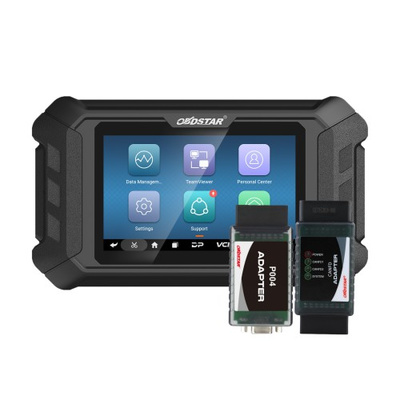

Package Contains: OBDSTAR P50 Airbag Reset Tool + OBDSTAR CAN FD Adapter

OBDSTAR P50 Basic Functions:

1. Supports one-click airbag reset for 86 brands and over 11600 ECU part No.
2. Supports fuzzy search for ECU part No.
3. Contains clear BENCH mode wiring diagram
4. Contains powerful and complete description files for fault code
5. OBDSTAR P50 with One Year Free Update Online, after one year, please click OBDSTAR P50 Update Service
6. Newly add Battery Reset for Audi/Volvo by BENCH
7. Support Tesla bench airbag reset
8. Support SAS reset function
9. Supports Hyundai/Kia TC2xxx types bench airbag reset with CANFD adaptor
10. Language: English Only.
11. If you also need Cluster Calibration & Oil Light/ Service Reset Function, you can buy the OBDSTAR Odometer Reset Oil Service Reset Function Authorization to get the same function as the OBDSTAR ODO Master.
12. Supports the data reading/writing and repair of the new SRS ECU with encrypted RH850 processor(need buy MP001 Programmer and RH850/V850 Adapter Kit)

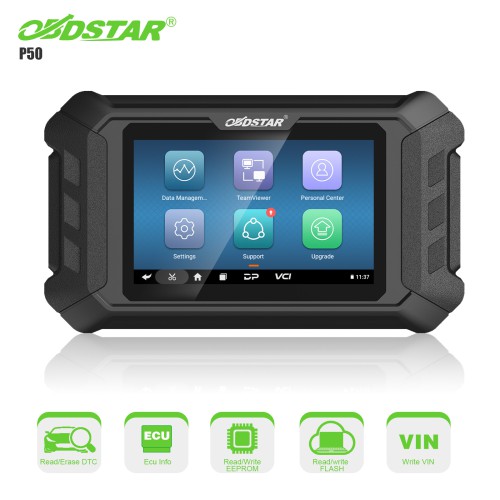

OBDSTAR P50 Advanced Functions:

All by OBD or BENCH
ECU Info.
Read DTC
Erase DTC
Read EEPROM
Write EEPROM
Read FLASH
Write FLASH
Erase Crash
Write VIN

P004 Adapter is designed for ECU programming, reading or writing data in bench mode. It has merits below:

1. Programming devices keep in normal communication no matter turn on or off 12V power button;
2. Turn on or off 120Ω resistance at any time for CANBUS ECU;
3. Support 6&14 and 3&11 CANBUS Protocol at the same time;
4. Optional CANFD adaptor (Mainly used for models after 2020, such as HYUNDAI/KIA, etc.);
5. Support GM Single CAN(GM SCAN);
6. Support K-line Protocol;
7. P004 jumper can connect with multiple wires at the same time, make wiring clearer and easier;
8. DB15 connector can communicate with any OBDII-16 I/O interface.

Advanced Functions with Optional MP001 Programmer and RH850/V850 Adapter Kit:

Supports the data reading/writing and repair of the new SRS ECU with encrypted RH850 processor. The repair and diagnosis of the encrypted SRS ECU are completed through the MP001 programmer, avoiding the switching back and forth between the MP001 programmer and the P004 adapter. The power supply is automatically controlled, which making the repair safer and more convenient and avoiding internal faults caused by insufficient power off time.

Support models

The following are the vehicle brands and MCU models of SRS ECU that come with the encrypted RH850 processor
1. R7F7016863: Subaru (data R/W + crash erase)
2. R7F7016843: Toyota/Lexus (data R/W + crash erase)
3. R7F7016443: Toyota/Lexus (data R/W + crash erase)
4. R7F701330A: Volvo, Polestar, Geely, Lynk&Co, Zeekr, Toyota, Mazda, Land Rover/Jaguar, Tesla (supports data R/W, supports crash erase partially, supports third-party manual crash erase)
5. R7F7010643: Dongfeng, Changan, Arcfox, Chery, Hongqi, Ford/Lincoln, Great Wall, Land Rover/Jaguar, GAC, XPeng, Tesla (data R/W + crash erase(except Tesla) ).
6. R7F701A033: Dongfeng, Arcfox, BAIC, Changan, FAW, Ford/Lincoln, Geely, Great Wall, Haima, Hongqi, JAC, Peugeot, Wuling, Tata, GAC, WM, XPeng, Zotye, etc. (data R/W + crash erase)
7. R7F701042(upcoming upgrade): Suzuki, Volkswagen (data R/W +crash erase)

Optional MP001 Programmer and RH850/V850 Adapter Kit vs P004 Adapter:

This kit uses the MP001 programmer with the C4-06 adapter soldering wire to decrypt the new SRS ECU with the encrypted RH850 processor for data reading, writing and repair, and uses the MP001 programmer with the BENCH-A-V3 jumper to perform a separate diagnosis of the SRS ECU (read fault codes/erase fault codes)， which can avoid switching between the MP001 programmer and the P004 adapter.

Compared with the P004 adapter, the power on/off of the SRS ECU is automatically controlled by the MP001 programmer, without the need for manual control of power on/off. The operation experience is safer and more convenient, avoiding internal faults caused by incomplete sleep of the ECU due to insufficient power outage time.

P50 Airbag Reset Latest Update Information:

P50 Airbag Reset Upgrade
Add TOYOTA R7F7016443, R7F7016843 crash record erase and repair
(All by bench, need to use with CANFD adaptor)

OBDSTAR P50 Airbag Reset Tool Update

OBDSTAR P50 Vehicle Coverage：

1. Supported Brands(86 Brands)
ACURA, ALFAROMEO, ASTONMARTIN, AUDI, BAIC, BAOJUN, BENTLEY, BENZ, BMW, BRILLIANCE, BUICK, CADILLAC, CHANGAN, CHERY, CHEVROLET, CHRYSLER, CITROEN, DACIA, DATSUN, DODGE, FAW, FERRARI, FIAT, FORD, GEELY, GMC, GREATWALL, HAIMA, HONDA, HONGQI, HYUNDAI, INFINITI, ISUZU, JAGUAR, JEEP, KIA, LADA, LAMBORGINI, LANCIA, LANDROVER, LEXUS, LINCOLN, MASERATI, MAZDA, MG, MINI, MITSUBISHI, NISSAN, OPEL, PEUGEOT, POLESTAR, PORSCHE, RENAULT, ROEWE, SCION, SEAT, SKODA, SMART, SSANGYONG, SUBARU, SUZUKI, TESLA, TOYOTA, UAZ, VOLVO, VW, ZOTYE......
2. Over 11600+ ECU part No.(supporting fuzzy search)
3. MCU types: H8SX, RH850, SPC, XC2XXX, TC2XXX, TMS570...

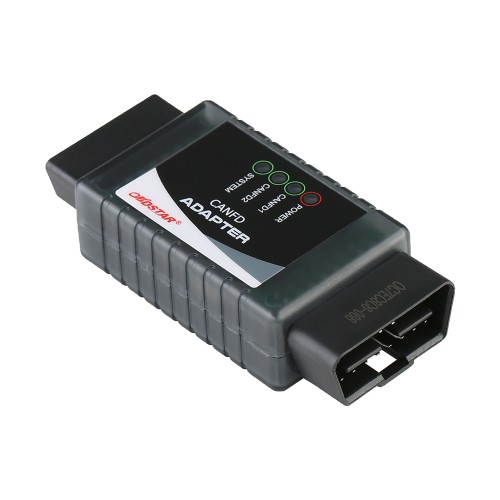

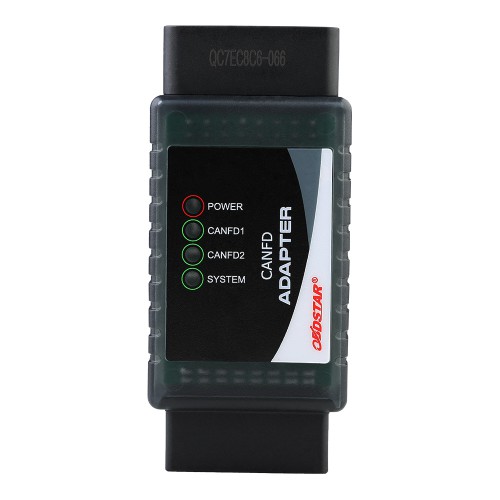

OBDSTAR CANFD CAN-FD Adapter

CANFD ADAPTER is designed for diagnosing ECU systems of cars complying with CANFD protocols. It's used with our company's tablets series products such as Key Master DP Plus. It's high performance and easy operation.

Supporting GM, HYUNDAI/KIA vehicle models as below

Usage
Use female connector connecting with OBDII-16 and male connector connecting with DLC diag socket.

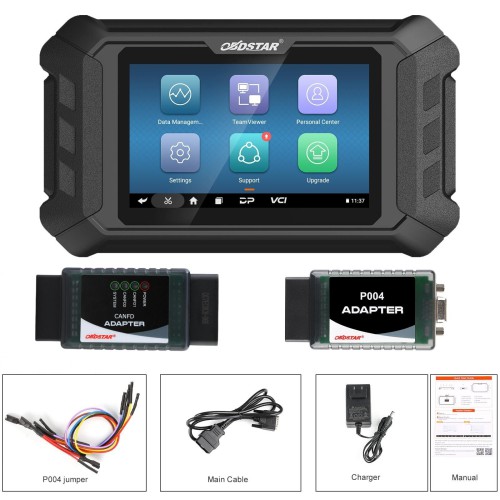

Package includes:

1pc x P50 Main Unit
1pc x Main Cable
1pc x P004 Adapter
1pc x P004 Jumper
1pc x 12V2A Charger
1pc x OBDSTAR CAN FD Adapter
