[US/EU/UK Ship] Autel MaxiCOM MK900TS MK900-TS Wireless TPMS Diagnostic Scanner with Android 11 Support DoIP/CAN FD Protocols and 40+ Services Upgraded of MK808TS
Autel MaxiCOM MK900TS, equipped with Full TPMS and Diagnostics, performs well both in your vehicle diagnosis and in Full TPMS. It features Top TPMS Functions, 40+ Hot Service Functions, All System Diagnosis, Bi-directional Control, NO IP Restriction, adn Refresh Hidden Functions, allows you to have both diagnostic and TPMS functions at the same time. So convenient!

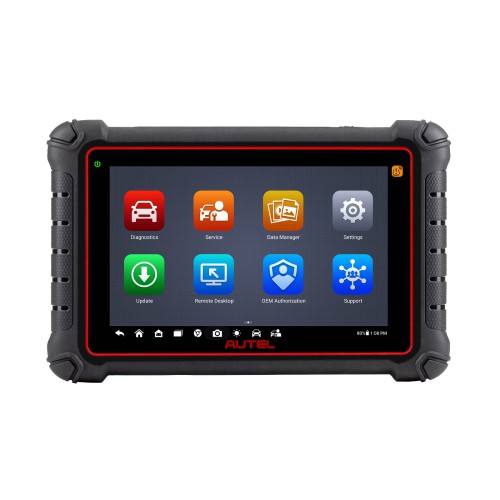

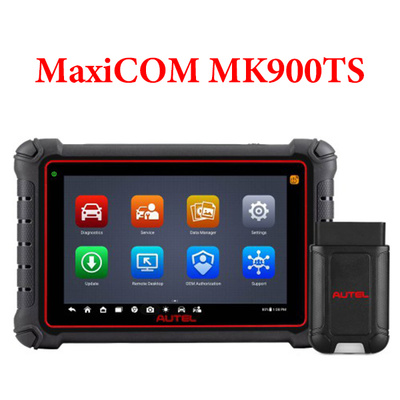

Autel MaxiCOM MK900TS Wireless TPMS Diagnostic Scanner
Autel MaxiCOM MK900TS Scanner is upgraded from MK808TS / MK900TS, which is a powerful combo of TPMS Tool and Diagnostic Scan Tool. Equipped with Full TPMS and Diagnostics, it performs well both in your vehicle diagnosis and in Complete TPMS Functions. For a workshop or a mechanic, Autel MK900TS is really a good choice.
Highlights of Autel MaxiCOM MK900TS:
1. Autel MK900-TS = MX900 + MS906TS= MK900-BT+ TS608, Upgrade from MK808S-TS, MK900, MK900BT
2. One Year Free Update Online. After one year, please pay MK900TS One Year Update Service.
3. 40+ Service Functions: to meet your daily maintenance needs, and the range of supported vehicle models are still enhancing.
4. Full Bidirectional Control, 3000+ Active Tests
5. OE-Level All System Diagnostics & CAN FD&DoIP, Pre/ Post Scan & WiFi Print
6. Hardware & Software All Level Up: Android 11.0 + 8-core, 1.8GHz CPU + 4&64G Memory to address the issue of slow running speed and eliminate lag. The 8" large touchscreen displays more data results, and the optimized 7700mAh battery allows for much longer work.
7. MK900-TS Covers 99% Cars: covers 150+ manufacturers, 1996-2024 worldwide cars, even CAN-FD/DoIP models (surpass most competitors on market). Better, you can get diagnostic access to 2018+ FCA SGW (AutoAuth), 2015+ Renault RGW vehicles, and expanded coverage (from Autel’s regular upgrades). The compatible brands include US top-selling cars: compatible with Toyota, Honda, Chevrolet, Ford, Benz, BMW, etc.
8. Extendable Functions:
Work with Battery Test BT506 / BT508
Work with Autel MV108S Camera
Autel MaxiCOM MK900-TS vs MaxiCOM MK900-BT vs MaxiCOM MK900 vs MaxiCOM MK808TS Comparison Chart
| MaxiCOM MK900-TS | MaxiCOM MK900-BT | MaxiCOM MK900 | MaxiCOM MK808TS |
| Read Codes | √ | √ | √ | √ |
| Erase Codes | √ | √ | √ | √ |
| Live Data | √ | √ | √ | √ |
| ECU Information | √ | √ | √ | √ |
| Active Test | √ | √ | √ | √ |
| Service Functions | √(40+kinds) | √(40+kinds) | √(40+kinds) | √(36 kinds) |
| Complete OBD Diagnositcs | √ | √ | √ | √ |
| Pre & Post Scan | √ | √ | √ | -- |
| Scan VIN | √ | √ | √ | -- |
| Tire Pressure Monitoring System | Complete | Basic | Basic | Complete |
| Immobilizer Function | Basic | Basic | Basic | Basic |
| Advanced TPMS Diagnostics for Complete TPMS Health Check | √ | -- | -- | √ |
| Activate All Known TPMS Sensors | √ | -- | -- | √ |
| Program AUTEL MX-Sensors | √ | -- | -- | √ |
| Comprehensive OBD relearn coverage | √ | -- | -- | √ |
| On-screen Relearn Procedure | √ | -- | -- | √ |
| DoIP | √ | √ | √ | -- |
| CANFD | √ | √ | √ | √(optional adapter) |
| Battery Analysis | √ | √ | -- | √ |
| Videoscope | √ | √ | √ | √ |
| Processor | Quad-core 1.8GHz | Quad-core 1.8GHz | Quad-core 1.8GHz | Quad-core 1.6GHz |
| Operating System | Android 11 | Android 11 | Android 11 | Android 4.4.4 |
| Memory | 4G + 64G | 4G + 64G | 4G + 64G | 1G + 64G |
| Display | 8" LCD | 8" LCD | 8" LCD | 7" LCD |
| Battery | 7700mAh | 7700mAh | 7700mAh | 5000mAh |
| Internet Updatable | WiFi | Wi-Fi | WiFi | WiFi |
| Multilingual Support | √ | √ | √ | √ |
| Historical Test Records | √ | √ | √ | √ |
| Save and Playback Data | √ | √ | √ | √ |
| Print Data via Windows PC | √ | √ | √ | √ |
| Vehicle communication method | Wireless (bluetooth) | Wireless (bluetooth) | Wired | Wireless (bluetooth) |
Autel MaxiCOM MK900TS with Powerful TPMS Diagnostic System
MaxiCOM MK900TS TPMS Car Diagnostic Tool can perform OE-Level TPMS Diagnostics and find you TPMS-Related DTCS, it features to check the TPMS Module Status: Read/Clear trouble codes from TPMS, read live data to check the module status, turn off the error light. It will also provide an efficient method to quickly and accurately determine the current vehicle's model, year and frequency information, avoiding TPMS matching failure caused by incorrect selection.
1. Program All the Autel MX-Sensors
Autel MaxiCOM MK900TS allows you to program the sensor data to the MX-Sensor to replace the broken TPMS tire sensors with low batteries or other problems. There are 2 ways for programming: Copy by OBD and Auto Create 1-16 Sensors.
Copy by OBD - By using this function, the scan tool will program the sensor IDs retrieved from the ECU of the test vehicle to the new MX-Sensor.
Auto Create 1-16 Sensors - The Auto Create function is used to automatically create a random sensor ID to program a new MX-Sensor. Up to 16 MX-Sensors can be programmed simultaneously.
Note: MK900TS can only program Autel Brand MX-Sensors, it can't program any other brand sensors.
2. Activate 99% of 315MHZ / 433MHZ TPMS Sensors
Autel MK900TS Full TPMS Scanner will activate 99% of 315MHZ/433MHZ TPMS Sensors in the market. It can activate all know OEM or Autel TPMS sensors to view sensor data, such as sensor ID, tire pressure, tire temperature, sensor battery condition, and sensor position.
3. Relearn 99% of TPMS Sensors
TPMS Expert MK900TS supports write the newly programmed sensor IDs into the vehicle ECU for sensor recognition, and there are three ways for relearn: stationary relearn, active relearn, OBD relearn.
Stationary Relearn - Stationary relearn requires the vehicle to be in "Learn Mode" and allows the new TPMS sensor IDs to be written into vehicle's ECU via Autel MK900TS Tpms scanner without driving a vehicle.
Automatic Relearn - An auto-relearn procedure is when a vehicle can learn a single or multiple TPMS sensor IDs without a TPMS relearn tool. The TPMS system will automatically reset itself after a while of driving.
OBD Relearn - The OBDII relearn is mostly applied to Asian & European vehicles. An OBDII relearn requires the Autel MK900TS TPMS scan tool to write new sensor IDs directly to the vehicle's ECU following step-by-step instructions Relearn has never been so easy
4. Advanced TPMS Retrofit MK900TS Exclusive
TPMS retrofit is an advanced function that the other tools can only dream of, can help vehicles without factory-fitted OEM tire pressure module or sensors build everything from scratch, and realize safe tire monitoring and safe driving.
Step 1: Back up the original vehicle data
Step 2: Code the Autel TPMS module
Step 3: Install the Autel TPMS module on the vehicle
Step 4: Program the Autel TPMS sensors
Step 5: Activate the Autel TPMS sensors or OE sensors
Step 6: Relearn the sensor with on-board TPMS module
OE-Level All-Systems Diagnosis
Autel MaxiCOM MK900TS diagnostic tablet scanner can access and scan all available electronic systems to read and clear codes, view live data, and retrieve ECU information which brings workshop-level all available modules scanning to a whole car.
Bi-directional Control/Active Test
The Autel MaxiCOM MaxiCOM MK900TS scan tool output the commands to ECUs and monitor the operation of the actuators to quickly locate issues. For Example:
Fuel Injector Balance, Injector Tests
Cylinder Deactivation, A/C Compressor Clutch Relay On/Off
Cycling ABS Pump Motor, EVAP Tests
Switch on/off car wipers, Rolling up/down car windows/doors/sunroof
Cooling fan motor command, Interior lighting test, High beam test
40+ Popular Maintenance Services
MaxiCOM MK900TS has 40+ Hot Services, which supports 150+ brands & AutoAuth for FCA Vehicles and helps you solve 99% complicated repairs, the services including Oil Reset, Injector Coding, ABS Auto Bleed, SAS, BMS, EPB, etc.
With MaxiCOM MK900TS, you can do the most basic car maintenance at home without taking the vehicle to a dealership and spending hundreds and thousands on something you can do it on your own.
Injector Coding: Code new injector numbers to replace the previous one when fitting the new injectors or after the replacement is completed;
ABS Bleeding: When the ABS contains air, the ABS bleeding function must be performed to bleed the brake system to restore ABS brake sensitivity;
Brake Reset: Deactivate and activate the brake control system, assist with brake fluid control, open and close brake pads, etc.;
GEAR Learn: Perform gear learning for the car when the engine ECU, the crankshaft position sensor, or the crankshaft flywheel is replaced.
Key Coding: Help ECU to recognize the new keys when you need to add new keys, and delete the lost keys;
Oil Reset: Reset the oil life systems every time the oil and oil filter are changed;
SAS Reset: Perform steering angle sensor calibration and clear records;
BMS Reset: Evaluate the battery charge state, register the battery replacement, etc.; More completed battery and starter-related detail working with BT506;
Relearn Throttle: Initialize the throttle so that the “learned” values stored on ECU are returned to the default state;
DPF REG: Clear PM (Particulate Matter) from the DPF filter through continuous combustion oxidation mode to stabilize the filter performance;
Note: The reset service is not applicable to all models, and the models supported by different functions are different. If you need to know whether Autel diagnostic tools can support it, please contact us for a compatible check.
MaxiCOM MK900TS with 10M Bluetooth Connection
Autel MK900TS is by far the most cost-worthy wireless diagnostic tablet in the market. With a working range of 33 feet (10m), you don't need to worry about the cable is not long enough anymore!
Autel MaxiCOM MK900TS with Wide Coverage
Extensive vehicle coverage for more than 80 US, Asian and European vehicle makes after 1996.
Ford, Ford(EU), GM, Chrysler, Dodge, Jeep, BMW, Mini, Benz, Benz Sprinter, Maybach, Smart, Volvo, Land Rover, Jaguar, Porsche, Volkswagen, LT3, Volkswagen CV, Audi, Bentley, Lamborghini, MAN_LD, Seat, Skoda, Bugatti, Renault, Dacia, Samsung, Opel, Vauxhall, Peugeot, Citroen, Fiat, Abarth, Lancia, Toyota, Acura, Daewoo, Honda, Hyundai, Infiniti, Isuzu, Kia, Lexus, Mazda, Mitsubishi, Nissan, Nissan GT-R, Scion, Subaru, Suzuki...
Autel MaxiCOM MK900TS Extensive Functions
Pre & Post Scan - Report is customized with shop and vehicle info
Pre-scan Report: To help to expedite insurance carries approval of repair estimates, avoiding additional insurance authorizations.
Post-scan Report: To prove all DTCs on the Pre-Scan report are fixed. DATED scan report to ensure vehicles are repaired and safe for customers.
FCA AutoAuth
There is no need to dismantle the FCA cars & diagnose with the 12+8 adapter. Just register an "AutoAuth" account on the device and you can pay tp diagnose the FCA vehicles after 2018.
Autel MaxiCOM MK900-TS Specifications
| Operating System | Android 11 |
| Processor | Quad core Processor(1.8GHz) |
| Memory | 4GB RAM & 64GB ROM |
| Display | 8-inch LCD capacitive touchscreen with 1280x800 resolution |
| Rear Camera | 8 MP |
| Connectivity | USB Type-C |
| USB 2.0 |
| Wi-Fi |
| Bluetooth |
| Mini SD card (supports up to 64GB) |
| Audio Input/Output | Input: N/A |
| Output: buzzer |
| Power and Battery | 3.7 V/7700mAh lithium-polymer battery |
| Charges via 5 VDC power supply |
| Battery Charging Input | 5 V/3 A |
| Operating Temp | 0 to 50°C (32 to 122°F) |
| Storage Temp | -10 to 60°C (14 to 140°F) |
| Protocols |
ISO9141-2, ISO14230-2, ISO15765, K/L-Line, Flashing Code, SAE-J1850 VPW, SAE-J1850PWM, ISO11898(High-speed, Middle-speed, Low-speed and Single-wire CAN, fault-tolerant CAN) , SAE J2610, GM UART, UART Echo Byte Protocol, Honda Diag-H Protocol, TP2.0, TP1.6, DoIP, CANFD |
Product Comparison Between MaxiCOM MK900TS and MaxiPRO MP900TS
| Category | Function | Vehicle Series | MaxiCOM MK900TS | MaxiPRO MP900TS |
| processor |
| 4 Cores | 4 Cores |
| operating system | Android 11 | Android 11 |
| RAM | 4 GB | 4 GB |
| ROM | 64 GB | 64 GB |
| display screen | 8 inches | 8 inches |
| Wi-Fi | Wi-Fi（802.11a/b/g/n/ac） | Wi-Fi（802.11a/b/g/n/ac） |
| BT | BT V5.0 + BR/EDR | BT V5.0 + BR/EDR |
| USB | USB 2.0：(1 USB HOST Type A, 1 USB mini device) | USB 2.0：(1 USB HOST Type A, 1 USB mini device) |
| HDMI | No | No |
| SD Card | SD Card (Support up to 64GB) | SD Card (Support up to 64GB) |
| DB16 DLC | No | No |
| headphone plug | No | No |
| microphone port | No | No |
| speaker port | No | No |
| GPS | No | No |
| light-sensitive | Yes | Yes |
| button | 1 power button | 1 power button |
| battery | 3.7V 7700 mAh | 3.7V 7700 mAh |
| camera | Rear: 8 Megapixel | Rear: 8 Megapixel |
| VCI | built-in | built-in |
| connection mode | BT | BT |
| software difference | Auto VIN | All vehicle series | Yes | Yes |
| read/clear DTCs | All vehicle series | Yes | Yes |
| read data flow | All vehicle series | Yes | Yes |
| read freeze frame | All vehicle series | Yes | Yes |
| read ECU | All vehicle series | Yes | Yes |
| action test | All vehicle series | Yes | Yes |
| service | All vehicle series | Yes(40 items) | Yes (40 items) |
| special services | All vehicle series | full system special functions | full system special functions |
| online coding | Nissan | No | Yes |
| Infiniti | No | Yes |
| NissanGT-R | No | Yes |
| Renault | No | Yes |
| Hyundai | No | Yes |
| Kia | No | Yes |
| Audi | No | No |
| VW | No | Yes |
| VW_Brazil | No | Yes |
| BMW | No | Yes |
| MINI | No | Yes |
| Peugeot | No | Yes |
| Citroen | No | Yes |
| DS_EU | No | Yes |
| Porsche | No | Yes |
| SGMW | No | Yes |
| Offline coding | Nissan | No | Yes |
| Infiniti | No | Yes |
| NissanGT-R | No | Yes |
| Toyota | No | Yes |
| Lexus | No | Yes |
| Scion | No | Yes |
| Daihatsu | No | Yes |
| Benz | No | Yes |
| Maybach | No | Yes |
| LandRover | No | Yes |
| Jaguar | No | Yes |
| Subaru | No | Yes |
| Ford | No | Yes |
| FordAU | No | Yes |
| FordEU | No | Yes |
| Mazda | No | Yes |
| Hyundai | No | Yes |
| Kia | No | Yes |
| Chrysler | No | Yes |
| Audi | No | Yes |
| VW | No | Yes |
| Skoda | No | Yes |
| VW_Brazil | No | Yes |
| Bentley | No | Yes |
| Bugatti | No | Yes |
| Lamborghini | No | Yes |
| LT3 | No | Yes |
| Seat | No | Yes |
| VW_CV | No | Yes |
| Man_LD | No | Yes |
| Peugeot | No | Yes |
| Citroen | No | Yes |
| DS_EU | No | Yes |
| Opel | No | Yes |
| Vauxhall | No | Yes |
| Porsche | No | Yes |
| Mitsubishi | No | Yes |
| hidden functions activation | Nissan | No | Yes |
| Infiniti | No | Yes |
| NissanGT-R | No | Yes |
| Benz | No | No |
| Audi | No | Yes |
| VW | No | Yes |
| VW_Brazil | No | Yes |
| Skoda | No | Yes |
| BMW | No | Yes |
| MINI | No | Yes |
| Toyota | No | Yes |
| Lexus | No | Yes |
| Scion | No | Yes |
| guiding function | Benz | No | No |
| LandRover | No | No |
| Jaguar | No | No |
| Audi | No | Yes |
| VW | No | Yes |
| VW_Brazil | No | Yes |
| Skoda | No | Yes |
| Bentley | No | No |
| Seat | No | Yes |
| VW_CV | No | No |
| Man_LD | No | Yes |
| MINI | No | No |
| BMW | No | No |
| program personalization | LandRover | No | Yes |
| Jaguar | No | No |
| smart diagnosis | Topology | No | No |
| TSB technical bulletin, fault code guidance, fault prioritization, maintenance videos, etc. | No | No |
| cloud service | Remote Expert C-side | No | No |
| report management | Yes | Yes |
| AccuFix | No | No |
| Repair Data | No | No |
| other functions | McLaren diagnostics | No | No |
| Tesla diagnostics | No | No |
| NIO | No | No |
| Pre&Post Scan | Yes | Yes |
| SCAN VIN | Yes | Yes |
| SCAN License | Yes | Yes |
| Remote Desk | Yes | Yes |
diagnostic criteria D-PDU/
RP1210 | No | No |
| DoIP |
| Yes |
| CANFD |
| Yes |
| scalability | TPMS comprehensive function
(sensor programming, sensor activation, etc.) |
| Yes | Yes |
| oscilloscope |
| No | No |
| endoscope |
| Yes (optional with MV105/108) | Yes (optional with MV105/108) |
| four-wheel quick inspection |
| No | No |
| ADAS calibration |
| No | No |
| four wheels full version |
| No | No |
| Battery pack test |
| No | No |
| battery test |
| Yes (optional with BT506) | Yes (optional with BT506) |
| battery registration |
| No | No |
| multimeter |
| No | No |
| IMMO keys |
| No | No |
| Wi-Fi print |
| Yes | Yes |

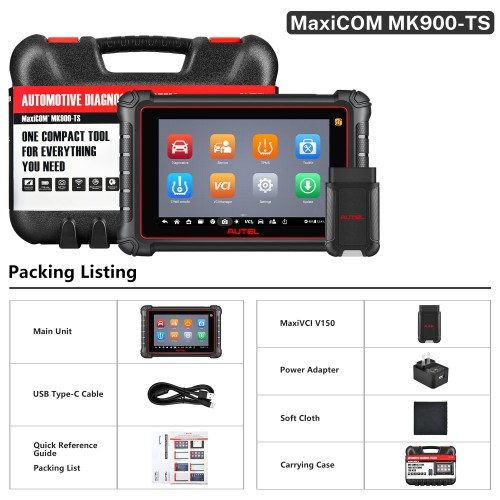

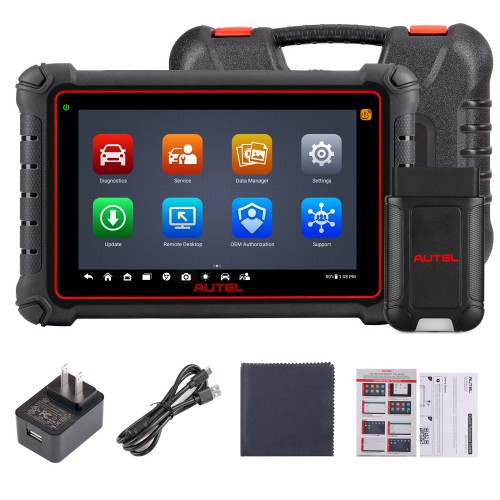

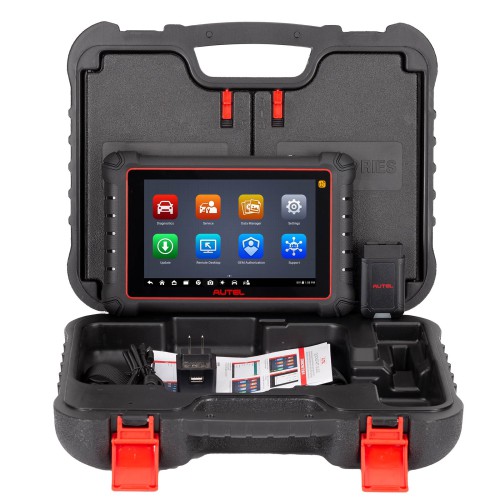

Package List:
1pc x AUTEL MK900TS main unit
1pc x MaxiVCI V150
1pc x power adapter
1pc x USB type-C cable
1pc x soft cloth
1pc x quick reference guide
1pc x packing list
1pc x carrying case
