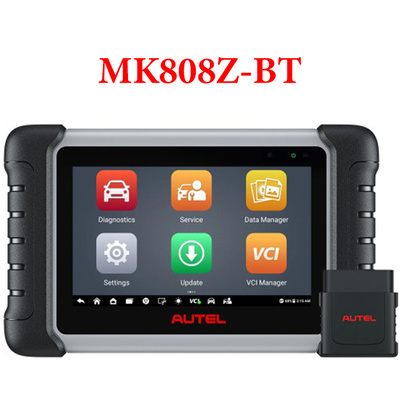

[US/EU/UK Ship] Autel MaxiCOM MK808Z-BT Bi-Directional Diagnostic Scanner Upgraded of MK808/MK808S/MX808 Compatible with BT506/MV108
Autel MaxiCOM MK808Z-BT is the most cost-worthy Autel scanner up to date, integrates Bi-directional Control, Complete Special Functions, 28+ Services, All system Diagnostics, Digital Inspection, Auto Auth, IMMO Functions, Battery Registration and Reset…… Function is Continuously Updated!!!
Autel MaxiCOM MK808Z-BT Bi-Directional Diagnostic Scanner Upgraded of MK808BT/MK808/MK808S/MX808 Compatible with BT506/MV108

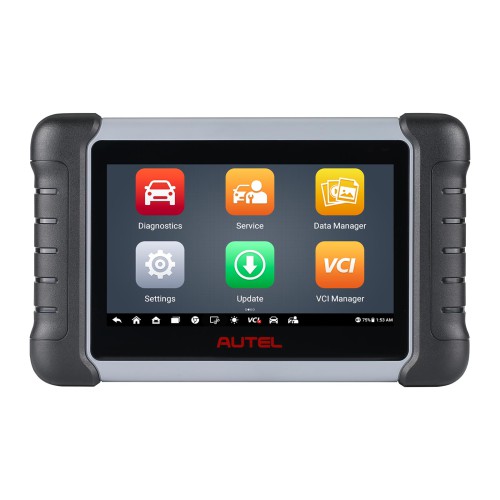

Featuring the powerful Rockchip RK3566 processor, and a 7.0 inch LCD capacitive touchscreen, based on the Android multitasking operating system, and combined with the ability to quickly read and clear DTCs for all available modules of the majority of the makes and models on the market, the MaxiCOM MK808Z-BT is your ideal auto diagnostic and service tool. MK808Z-BT provides you with superior special functions, including Oil Reset, EPB(Electronic Parking Brake), SAS (Steering Angle Sensor), BMS (Battery Management System), and DPF (Diesel Particulate Filter).
Highlights of MaxiCOM MK808Z-BT:
1. Upgraded Wireless Ver. Of MK808S/ MK808/ MX808S/ MX808;
2. Bi-directional Control / Active Test;
3. All Systems Diagnostic;

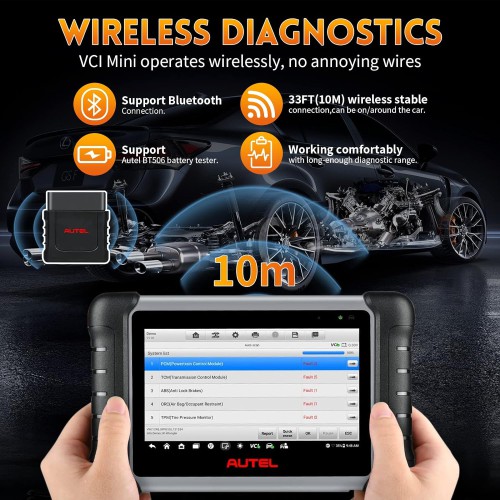

4. Stable BT Connection, working range up to 30 feet(10m);
5. 28+ Maintenance Service & OE-Level All Systems Diagnostics;
6. 10,000+ Vehicle Coverage, 21+ Languages supported;
7. Compatible with Battery Tester BT506 and MV108 Inspection Camera;
8. One Click Wi-Fi Update,No IP Restrictions
9. Expand features with video scope MV105/MV108 and battery tester BT506
-With MaxiVideo MV105/108, to have up-close visual inspections in confined areas (sold separately).
-With MaxiBAS BT506, to get a thorough vehicle battery analysis (sold separately).

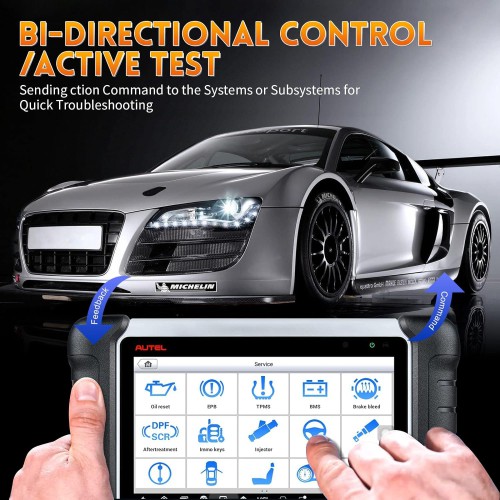

【Bi-Directional Control/Active Test】What would you do if the wipers stopped working? Just replace one or spend a lot money to fix it? Don't be in a hurry to dismantle your cars. Bidirectional control tool MK808Z-BT can perform real active test that can send commands to the vehicle's ECU to drive the actuators to work, like ABS, window, door, solenoids, valves, wipers, headlamp, etc., helping you quickly find out bad parts and pinpoint faulty issues. Note: NOT universal, please check compatibility.

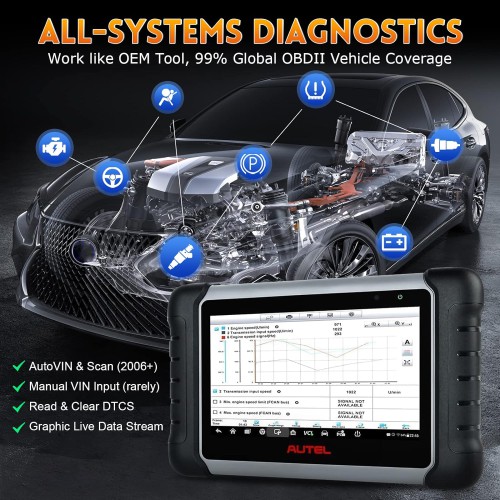

【All Systems Diagnostic, Make Full Check for Cars】Busy for a long time but can't find what's wrong with the car? Are you going to change your car? Take it easy! Autel MK808Z-BT scanner can scan all available car systems and perform OE-level diagnosis by reading/clearing codes, viewing live data of multiple sensors in text, graph & analog, freeze frame data, ECU info & Bidirectional conrol/active test. Just a few simple clicks, you can easily master the car situation. Not Support TPMS.
【Auto Scan & Auto VIN, Easy to Use】If you are worry about complex operation, MaxiCOM MK808Z-BT can avoid the trouble for you. AutoVIN technology allow MK808Z-BT to identity your vehicle's make, model, and year information with one click. More convenient is AutoScan that can automatically scan all vehicle's ECUs at one touch and find out fault codes. Note: AutoVIN does NOT work on all vehicles, depends on whether the VIN is programmed to car ECU or not. Always support manually input VIN.
28+ Reset & Maintenance Services - Meet All Your Needs!
OBD2 Scanner MK808Z-BT can perform 28+ maintenance services, including but not limited to Oil Reset, EPB Reset, SAS Reset, D~PF Regeneration, Battery Registration, Throttle Reset, ABS Bleeding, Injector Coding, IMMO key etc.
Oil Reset: Turn off the oil light, and reset the service mileage.
EPB Reset: Reset the brake pads after replacement.
SAS Reset: Reset the position of the steering for safe driving.
D~PF Regeneration: Clear the blockage in the D~PF filter, to meet emission standards.
Throttle Reset: Reset the throttle.
ABS Bleeding: Cycling the ABS system to bleed the air out of the ABS system before traditional bleeding.
Injector Coding: Coding the new injector after replacement.
And More...
NOTE: MK808Z-BT can add new keys on low anti-theft grade vehicles only. It can not add keys on high anti-theft grade vehicles like on BMW, Benz, Audi, VW and etc. If you want professional IMMO Key product, please consider Autel IM608 (ASIN: B08GFLPZG3)

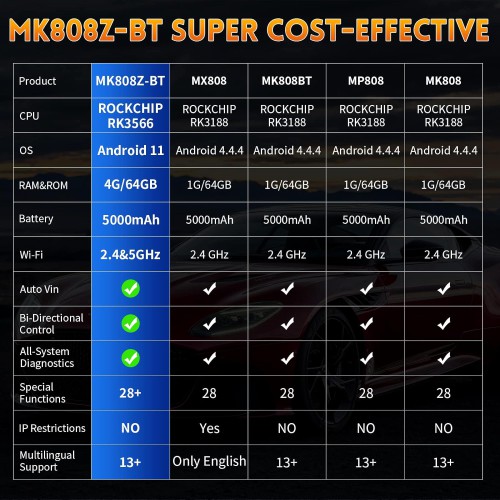

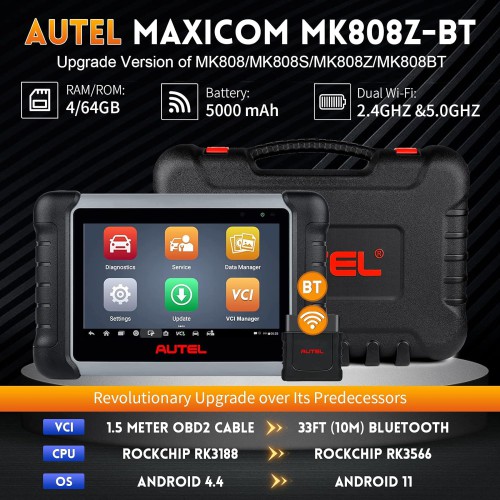

Product Specifications:
| Recommended Use | Indoor |
| Operating System | Android 11 |
| Processor | Rockchip RK3566 |
| Memory | RAM 4G+ROM 64G |
| Display | 7-inch LCD capacitive touchscreen with 1024x600 resolution |
| Connectivity | Mini USB 2.0
USB2.0
Wi-Fi(2.4 & 5GHz)
HDMI Type A
Micro SD card slot(supports up to 64GB) |
| Sensors | Light sensor for brightness auto changing |
| Audio input/output | Input: N/A
Output: buzzer |
| Power adn Battery | 3.7 V/5000 mAh lithium-polymer battery
Charges via 5 VDC power supply |
| Tested Battery Life | Around 7 hours of continuous use |
| Battery Charging Input | 5V/1.5A |
| Power Consumption | 600 mA(LCD on with default brightness,Wi-Fi on)@3.7 V |
| Operating Temp | 0 to 55°C(32 to 131°F) |
| Storage Temp | -20 to 60°C (-4 to 140°F) |
| Operating Humidity | 5%-95%non-condensing |
| Protocols | ISO9141-2, ISO14230-2, ISO15765, K/L-Line, Flashing Code, SAE-J1850 VPW, SAE-J1850PWM,
ISO11898 (Highspeed, Middlespeed, Lowspeed and Singlewire CAN, fault-tolerant CAN),
SAE J2610,GM UART,UART Echo Byte Protocol, Honda Diag-H Protocol, TP2.0, TP1.6 |

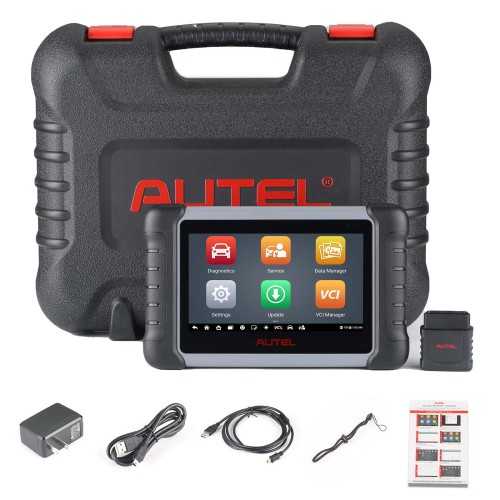

Package Includes:
1pc x MK808Z-BT Tablet
1pc x USB External Power Adapter
1pc x USB Cable(for testing)
1pc x USB Cable(for charging)
1pc x MaxiVCI Mini
1pc x Quick Reference Guide
1pc x User Manual
