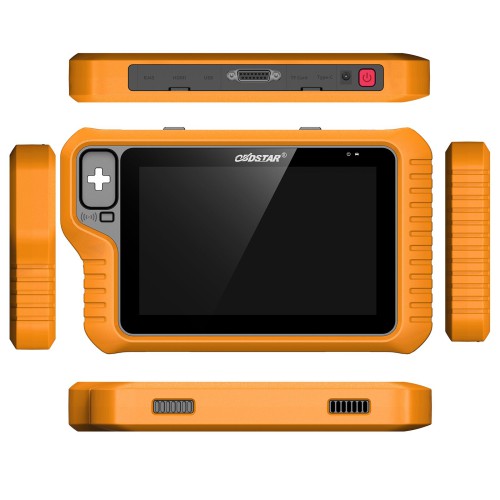

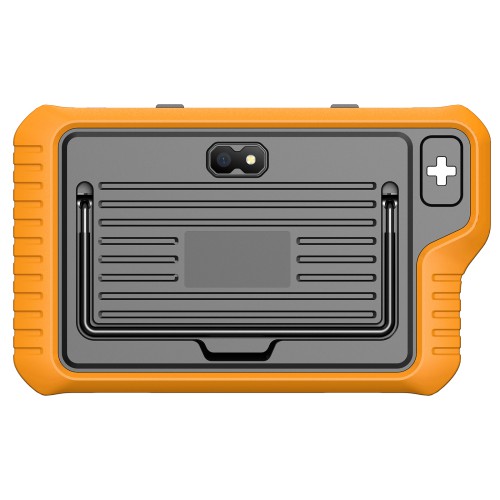

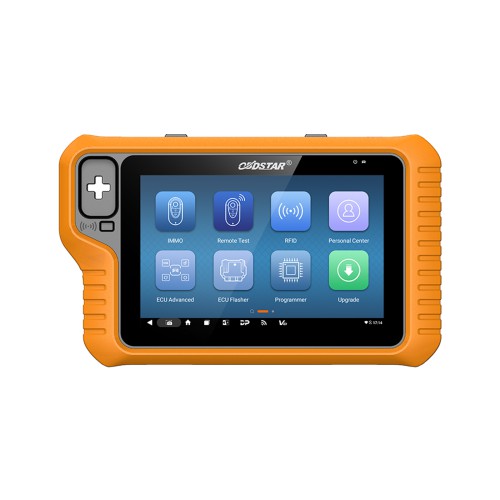

OBDSTAR X300 Classic G3 Full Version Support Cluster Calibration, ECU Flasher, Airbag Reset, Test Platform For Car/ HD/ E-Car/ Moto/ Marine

[US/EU/UK Ship] 2026 OBDSTAR X300 Classic G3 Full Version Support Cluster Calibration, ECU Flasher, Airbag Reset, Test Platform For Car/ HD/ E-Car/ Moto/ Marine

Product Code：

22794 Weight：6.9Kg

Categories: Key Programmer

Price: $ 2999.00

Quantity：

Buy Now

ADD TO CART

Add to Wishlist

Share this：

Product Specification

Manufacturer	OBDStar
Language	English Only
Update	2 years free online update
Warranty	1 year
Weight	6.9 Kg

Overview

[US/EU/UK Ship] 2026 OBDSTAR X300 Classic G3 Full Version Support Cluster Calibration, ECU Flasher, Airbag Reset, Test Platform For Car/ HD/ E-Car/ Moto/ Marine

OBDSTAR X300 Classic G3 Full Version = G3 Basic Version + Paid Software Service for Cluster Calibration + ECU Cloning + Airbag Reset + Test Platform, all in one.

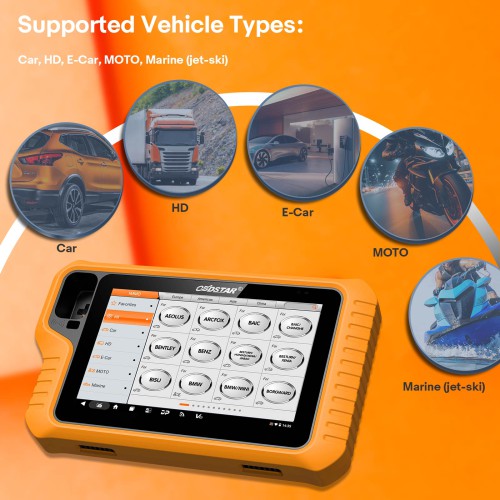

Supported vehicles: Car, HD, E-Car, MOTO, Jet Ski
Built-in CAN-FD, Fault Tolerant CAN, OBD16 Pinout Switch, DOIP, Remote Test and RFID.

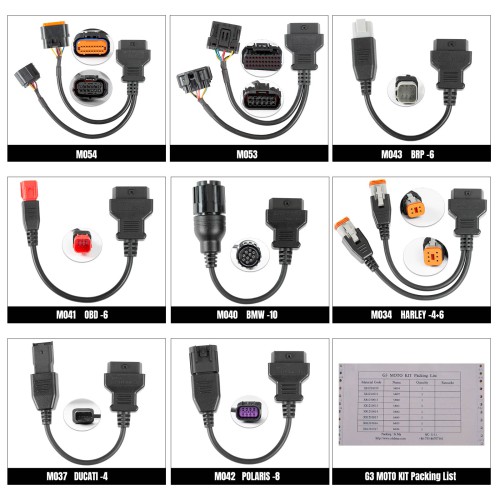

Get Both Key SIM Emulator and Motorcycle Adapter Set (M034, M037, M040, M041, M042, M043, M053, M054) for Free.
Ship From US/EU/UK, No tax and fast.

OBDSTAR X300 Classic G3 Full Version Support Cluster Calibration, ECU Flasher, Airbag Reset, Test Platform For Car/ HD/ E-Car/ Moto/ Marine

OBDSTAR X300 Classic G3 Intelligent Programming Tool inherits the many advantages of OBDSTAR in automobile/commercial vehicle technology, such as wide coverage of car models and various functions, and comprehensively increases the programming functions of E-car, motorcycle, marine (jet-ski), etc. A good helper for automotive locksmith masters.

OBDSTAR X300 Classic G3 Key Programmer

OBDSTAR X300 Classic G3 Full Version Highlights:

1. G3 Full Version = G3 Basic Version + Paid Software Service for Cluster Calibration + ECU Cloning + Airbag Reset + Test Platform, all in one.
2. Support Programming IMMO(Keys), Remote Test, R/W Transponder, Make Dealer Keys, Make Start Keys, Renew Key, IMMO OFF, R/W EEPROM/MCU, Unlock ECU, ECU Advanced, OBD II etc.
3. Supported vehicles: Car, HD, E-Car, MOTO, Jet Ski
4 Two Years Free Update Online, Update Version of X300 DP Plus
5. Built-in CAN-FD, Fault Tolerant CAN, OBD16 Pinout Switch, DOIP, Remote Test and RFID

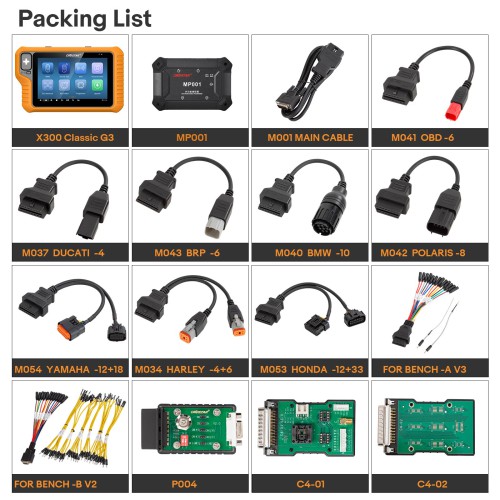

6. With MP001 (replace P003/P003+ Adapter), P004 Adapter and Renault Adapter in Default Package
7. RK3568 Hexa-Core Processor, 4G+64G Capacity Storage, High-brightness Display, HDMI High-definition Interface, Dual-band 2.4/5GHZ WIFI, Bluetooth 5.0, STM32H723 High Performance VCI Processor.

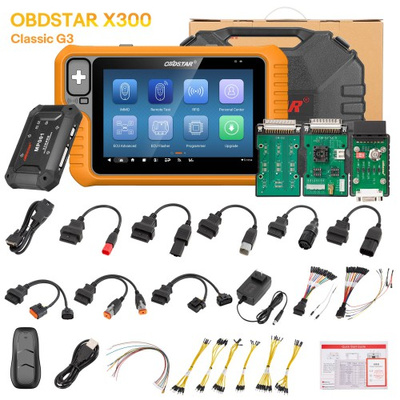

8. Get Both Key SIM Emulator and Motorcycle Adapter Set (M034, M037, M040, M041, M042, M043, M053, M054) for Free.
9. Please Check
OBDSTAR X300 Classic G3 User Manual
OBDSTAR X300 Classic G3 Vehicle List
10. Ship From US/EU/UK, No tax and fast.

Other Optional Accessories You May Need:
OBDSTAR Ford All Key Lost Cable work together with OBDSTAR P002 Adapter for FORD /LINCOLN / MUSTANG etc
OBDSTAR Toyota-30 Cable Proximity Key Programming / All Key Lost Support 4A and 8A-BA types No Need to Pierce the Harness
BENZ FBS3 KIT is used for Read PinCode, ECU Reset Virgin/Program and Program Keys. Support FBS3 Add Keys, AKL, ECM/TCM/ISM/EIS/ELV Reset Virgin and set personalization.
OBDSTAR VW 7-in-1 TCM Kit supports ECU clone, Read/Write MAP, Diag, Cluster Calibration and other functions for VW, AUDI automatic transmission. It's all by OBD or bench mode and no need to take off the TCM of the car, easy to use.
OBDSTAR TCM Connectors use for transmission mileage calibration and ECU cloning functions, no jumper connection required, one click read/write, easy to use, time saving and safe.
OBDSTAR VW4-AKL Cable For VW IMMO IV NEC24C64 and NEC24C32 All Keys Lost
OBDSTAR RH850/V850 Adapter Full Kit for MQB All Keys Lost
OBDSTAR C4-07(MB-VGS4-0-NAG2) Adapter Kit Full Configuration Support all vehicles with VGS4-0 NAG2 7G-Tronic TCU of the FBS4/DAS4 generation Mercedes-Benz; Support solder-free virginizing of used TCM via JTAG mode; Support personalization (data transfer) via BENCH or OBD mode, achieving the same effect as TCM clone.
OBDSTAR P005 Adapter Kit Used for BMW BDC02 IMMO Function.
OBDSTAR C4-08 (MB-VGS4-500-NAG2) Adapter Kit Support solder-free virginizing of used TCM via JTAG mode and personalization (data transfer) via BENCH or OBDmode, achieving the same effect as TCM clone.
OBDSTAR C4-09 (MB91F526) Adapter Kit Read/ Write FLASH, DFLASH and immobilizer data decryption.

Notice:
OBDSTAR X300 Classic G3 Full Version has activated ECU flasher(Clone) + Car/Motorcycle cluster recalibration + Airbag reset + Test Platform Functions.
Language: English Only

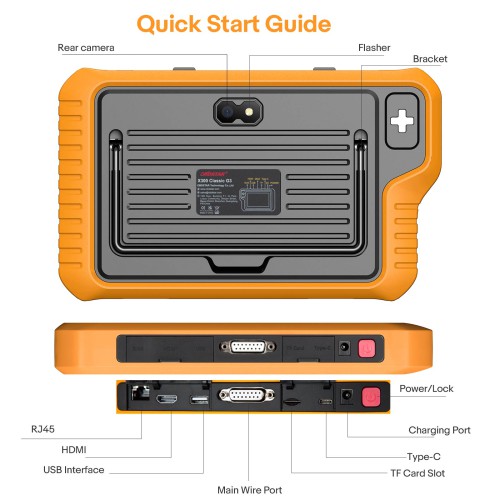

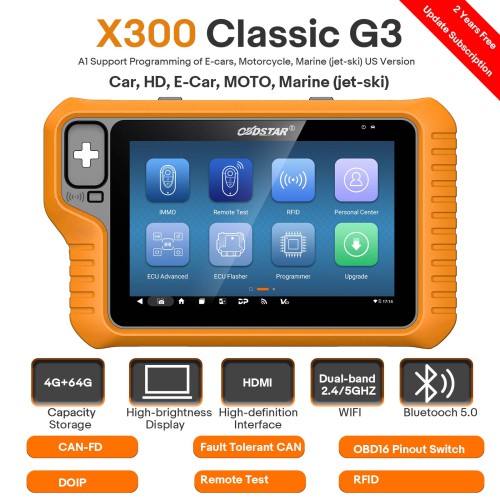

OBDSTAR X300 Classic G3 Hardware Advantages:

1. Built in CAN-FD, Fault Tolerant CAN, OBD16 Pinout Switch, DOIP, Remote Test and RFID;
2. RK3568 Hexa-Core Processor, 4G+64G Capacity Storage, High-brightness Display, HDMI High-definition Interface, Dual-band 2.4/5GHZ WIFI, Bluetooth 5.0, STM32H723 High Performance VCI Processor.

OBDSTAR X300 Classic G3 Software Functions:

OBDSTAR X300 Classic G3 Features:

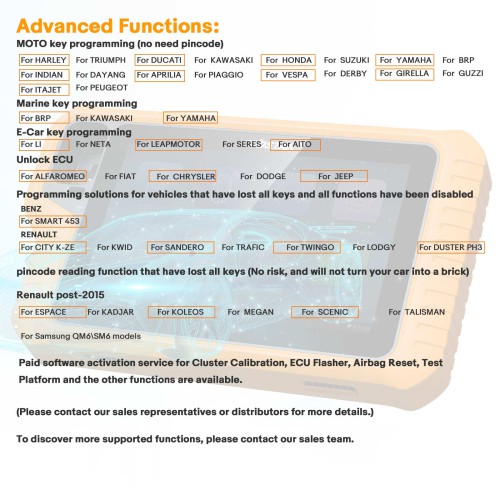

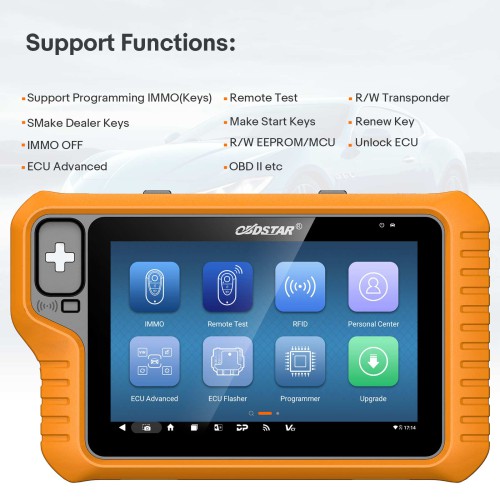

Support Programming IMMO(Keys), Remote Test, R/W Transponder, Make Dealer Keys, Make Start Keys, Renew Key, IMMO OFF, R/W EEPROM/MCU, Unlock ECU, ECU Advanced, OBD II etc.

1. Support MOTO key progarmming (no need pincode) function for HARLEY, TRIUMPH, DUCATI, KAWASAKI, HONDA, SUZUKI, YAMAHA, BRP, INDIAN, DAYANG, APRILIA, PIAGGIO, VESPA, DERBY, GIRELLA, GUZZI, PEUGEOT, ITAJET and others;
2. Support Marine key progarmming function for BRP, KAWASAKI, YAMAHA and others;
3. Support E-Car key programming function for LI, NETA, LEAPMOTOR, SERES, AITO and others;
4. Support unlock ECU function for ALFAROMEO, FIAT, CHRYSLER, DODGE, JEEP and others;
5. Support programming solutions for SMART 453 that have lost all keys and all functions have been disabled;
6. Support programming solutions that have lost all keys and all functions have been disabled for RENAULT CITY K-ZE, KWID, SANDERO, TRAFIC, TWINGO, LODGY, DUSTER PH3;
7. Support pincode reading function that have lost all keys (No risk, and will not turn your car into a brick) for Renault post-2015 ESPACE, KADJAR, KOLEOS, MEGAN, SCENIC, TALISMAN and Samsung QM6\SM6 models.
8. With Paid software activated for Cluster Calibration, ECU Flasher, Airbag Reset, Test Platform and the other functions are available. ( After you registered the device, please send us device serial number )

OBDSTAR X300 Classic G3 Function module list

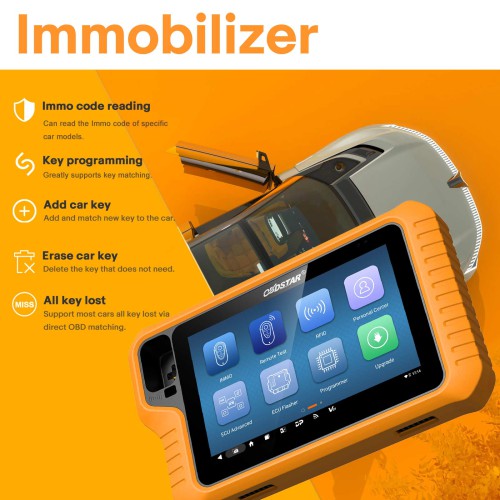

A: IMMO

A1.1: CAR IMMO
A1.2: HD IMMO
A1.3: E-CAR IMMO
A1.4: MOTO IMMO
A1.5: MARINE IMMO
A2.1 Remote Test
A3.1 ECU Advanced
A4.1 Make Key
A4.2 R/W Transponder
A4.3 Unlock Smart Key
A5.1 EEPROM/MCU
A5.2 Renew Key

B: ODO METER / Cluster Calibration

B1.1: Car ODO METER
B1.2: MOTO ODO METER
B2.1: Oil/Service Reset

C: ECU Flasher

C1.1: CAR ECM
C1.2 :CAR TCM
C1.3: CAR BODY
C2.1: MOTO ECM

D: Crash Reset /Airbag Reset

D1.1: Battery Reset (MVBM)
D1.2: Airbag Reset
D1.3: SAS Reset

E: Test Platform

E1.1: Dash Board
E1.2: E-CAR ABS
E1.3: Gear Lever
E1.4: A/C panel
E1.5: E-CAR BSG
E1.6: E-CAR MHEV
E1.7: E-CAR AUDIO
E1.8: E-CAR EBA

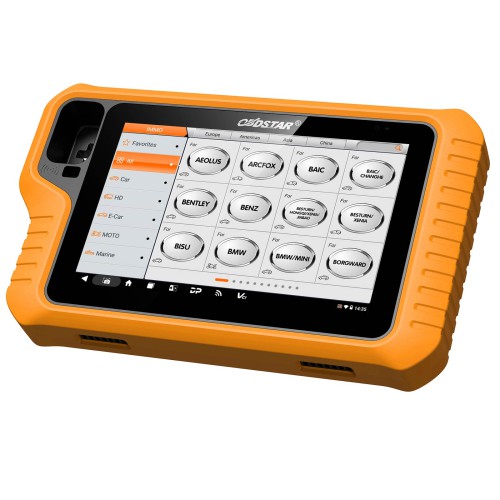

OBDSTAR X300 Classic G3 Main Page

OBDSTAR X300 Classic G3 Vs. X300 DP Plus:

Products Details		X300 DP Plus C	X300 Classic G3
Hardware	Operation system	Android 5.1.1	Android 11
	OTA	x	√
	Screen recording	x	√
	Wireless screen casting	x	√
	CPU	qual core ARM cortex A9 1.4GHz	Quad-core 64-bit Cortex-A55 2.0GHz
	Battery	3700mAh	9000mAh
	Storage capacity	1+32GB	4+64GB
	LCD	8.0 inch	8.0 inch fully laminated sunlight readable screen
	Camera	Rear camera 500W pixels	Rear camera 800W pixels, auto-focus
	Bluetooth	Bluetooth 4.2	Bluetooth 5.0(Compatible with BT 4.2)
	External interfaces	x	RJ-45√
		x	HDMI√
		TYPE-A	TYPE-A,TYPE-C
	WiFi	2.4G	Dual-band 2.4G/5GHZ
	VCI	STM32F105	STM32H723
		CANFD Adapter Required	CANFD built in√
		x	DOIP built in√
		x	Low Speed(Fault Tolerant) CAN built in√
		x	RS232、RS485 built in√
		All other common protocol types	All other common protocol types
	RFID	P001 Required	Built in√
	Remote Test	RT100 Required	Built in√
	Renault Converter	Renault Converter Required	Built in√
	Weight	About 1kg	1.5kg (main unit)
	Dimension	254mm174mm35mm	270.5mm165mm39mm
Functions	Diagnosis	√	x
	OBDⅡ	√	√
	Car IMMO	√	√
	MOTO IMMO	√	√
	HD IMMO	√	√
	Marine IMMO	x	√
	E-Car IMMO	x	√
	RFID	x	√
	Make key	x	√
	Unlock Smart key	x	√
	Renew key	√	√
	Read/Write EEPROM MCU	√	√
	ECU advanced（Includes ECU unlock）	x	√
	Oil/Service reset	√	√
	Other service function	√	x
	Remote test	x	√
	ECU flasher IMMO（IMMO OFF、ISN、IMMODATA）	x	√
	ECU flasher（Clone）	√ Limited supported models, different with DC706 and G3	Paid activation
	Car/Motorcycle cluster recalibration	√	Paid activation
	Airbag reset	√	Paid activation
	Test Platform	x	Paid activation

OBDSTAR X300 Classic G3 Lastest Update:

October 2025 Update:

1.AEOLUS V40.69
Details Added
Add KR, CZ, EL, NL, SV languages.
Details Optimized
Optimized software.

2.BMW V40.57
Details Added
Add BDC02 IMMO system for BMW F/G series chassis;
Add CZ,EL,NL,SV languages.

3.CHANGAN V41.21
Details Added
Add proximity key programming function for below model:

CHANGAN LCV V919
Details Optimized
Optimized software.

4.ENOVATE V40.00

Details Added
Add proximity key programming function for below model:
ME5

5.FIAT V43.22
Details Added
Add Manual Select System for BSI(PRE-CODING) MARELLI MB91F526(ID4A).
Add blade key programming(supports AKL,C4-09 required) for below types:
FIAT AFRICA DUCATO 2020– MARELLI MB91F526(ID4A) BCM250X BCML7
FIAT ASIA DUCATO 2020– MARELLI MB91F526(ID4A) BCM250X BCML7
FIAT AUSTRALIA DUCATO 2020– MARELLI MB91F526(ID4A) BCM250X BCML7
FIAT EUROPE 500L 2018-2022 MARELLI MB91F526(ID4A) BCM250X BCML7
FIAT EUROPE DUCATO 2020– MARELLI MB91F526(ID4A) BCM250X BCML7
FIAT NORTH AMERICA 500L 2018-2022 MARELLI MB91F526(ID4A) BCM250X BCML7
FIAT SOUTH AMERICA ARGO 2017-2023 MARELLI MB91F526(ID4A) BCM250X BCML7
FIAT SOUTH AMERICA CRONOS 2018-2023 MARELLI MB91F526(ID4A) BCM250X BCML7
FIAT SOUTH AMERICA 500L 2018-2022 MARELLI MB91F526(ID4A) BCM250X BCML7
FIAT SOUTH AMERICA DUCATO 2020– MARELLI MB91F526(ID4A) BCM250X BCML7
Details Optimized
Optimized software.

6.HONGQI V40.76
Details Added
Add proximity key programming(Support AKL) for below model:
HONGQI L5_C872

7.LEAPMOTOR V40.05
Details Added
Add KR, CZ, EL, NL, SV languages.
Add proximity key programming(Supported AKL) function for below models:

B01,B10,C10,C11,C16

8.RENAULT V41.88
Details Added
Add blade key programming function for below models:
RENAULT KANGOO 2019-2021
RENAULT MASTER PH4 2017-2023

9.ROEWE V42.23
Details Added
Add KR, CZ, EL, NL, SV languages；
Add proximity key programming function for below model:
ROEWE RX5 PLUS 2023-
Details Optimized
Optimized software.

10.TOYOTA V43.20
Details Added
Add proximity key programming(Supported AKL) function for below model:
TOYOTA USA-CANADA BZ3

BAIC V41.02
Details Added
Add proximity key programming(Supported AKL),Read PinCode functions for below models:
BAIC BEIJING BJ40C 2024-
BAIC BEIJING BJ40E
Add proximity key programming(Supported AKL) for below model:
BAIC BEIJING BJ30 2024-
BAIC BEIJING BJ30E
Add Read PinCode function for below model:
BAIC BEIJING X7
Add KR,CZ,EL,NL,SV languages.
Details Optimized
Optimized software.

CHANGAN V41.18
Details Added
Add KR,CZ,EL,NL,SV languages.
Details Optimized
Optimized software.

CHERY V41.03
Details Added
Add below functions for CHERY FY-T8:
proximity key programming
Read ECU Status Information
Program New System
Program ECMReset ECM
Program IMMO (Learn SK From ECM)
Program IMMO (Learn SK From TCM)
Write Security Code To IMMO
Reset IMMO
Program TCM
Reset TCM
Program ESCL
Reset ESCL
Add KR, CZ, EL, NL, SV languages.

CHRYSLER V43.82
Details Added
Add proximity key programming,Read PinCode,Replace Engine Control Module(ECM),Transfer Key to ESL and ECM,Unlock PIN functions for below model:
DODGE USA-CANADA RAM PROMASTER 2022-2025
Add BLADE Program Keys(Supported AKL),Write PIN,Write VIN,Exit IMMO Status,Program EMS,Program IMMO functions for below models:
DODGE AFRICA RAM 1200
DODGE ASIA RAM 1200
DODGE AUSTRALIA RAM 1200
DODGE EUROPE RAM 1200
DODGE MEXICO RAM 1200
DODGE MIDDLE EAST RAM 1200
DODGE S.AMERICA RAM 1200
DODGE USA-CANADA RAM 1200
Add KR,CZ,EL,NL,SV languages.

FIAT V43.16
Details Added
Add Manual Select System BSI(PRE-CODING) MARELLI 95160(ID46);
Add KR,CZ,EL,NL,SV languages.
Details Optimized
Optimized Software.

GEELY V41.10
Details Added
Add below functions for GEELY NIUZAI proximity key programming type(Supported AKL):
Erase Keys
Erase ESK Code
Write ESK Code
Add KR, CZ, EL, NL, SV languages.
Optimized software.

JMC V40.43
Details Added
Add proximity key programming function for JMC NEW ENERGY EX5 ;
Add KR, CZ, EL, NL, SV languages.
Details Optimized
Optimized software.

LIVAN V40.03
Details Added
Add key programming, Key Count functions for below models:
LIVAN RL7
LIVAN RL9
Add KR, CZ, EL, NL, SV languages.

NISSAN V42.75
Details Added
Add proximity key programming(Supported AKl) function for below models:
NISSAN VERSA 2025
NISSAN NORTH AMERICA FRONTIER V6 PRO-4X 2023-
Add KR,CZ,EL,NL,SV languages.
Details Optimized
Optimized software.

PSA V42.79
Details Added
Add below functions for PEUGEOT LANDTREK
BLADE Program Keys(Supported AKL)
Write PIN
Write VIN
Exit IMMO Status
Program EMS
Program IMMO
Add KR,CZ,EL,NL,SV languages.
Details Optimized
Optimized software.

TRUMPCHI V40.58
Details Added
Add proximity key programmering(Supported AKL),Program ECM,ProgramTBOX,Program ESCL functions for below models:
TRUMPCHI AION RT
TRUMPCHI AION UT
Add proximity key programmering(Supported AKL) function for below model:
TRUMPCHI M8 PROXIMITY TYPE 2
Add KR,CZ,EL,NL,SV languages.
Details Optimized
Optimized software.

SMART V41.51
Details Added
Add KR,CZ,EL,NL,SV languages.

TOYOTA V43.19
Details Added
Add KR,CZ,EL,NL,SV languages.
Details Optimized
Optimized software.

VOLVO V40.44
Details Added
Add KR,CZ,EL,NL,SV languages.

ZOTYE V40.83
Details Added
Add KR, CZ, EL, NL, SV languages.
Details Optimized
Optimized software.

Package Includes:

1pc x M001 main cable
1pc x charger
1pc x MP001 all-in-one programmer
1pc x W004 read/write soldering wire
1pc x W005 read/write soldering wire
1pc x W006 clock frequency wire
1pc x C4-01 multi-function data read/write board
1pc x C4-02 eight-pin chip(IC) soldering board
1pc x BENCH-A V3 for ECM and TCM cloning functions
1pc x P004 adapter
1pc x BENCH-B V2 ECU Cloning BENCH harness

Free Gift Kits
A1
1pc x KeySlim + USB to Type-C Cable
A2
1pc x M034 Harley-4+6
1pc x M037 Ducati-4
1pc x M040 BMW-10
1pc x M041 OBD-6
1pc x M042 INDIAN/VICTORY-8
1pc x M043 BRP-6
1pc x M053 HONDA IMMO
1pc x M054 SUZUKI/YAMAHA

OBDSTAR X300 Classic G3 Package Includes

OBDSTAR X300 Classic G3 Package Includes

Notice:
Starting June 1st 2026, the package will no longer include the GIFT PACK A2 (Motorcycle Cable Kit) as a free gift and will be available as a paid, optional accessory.
