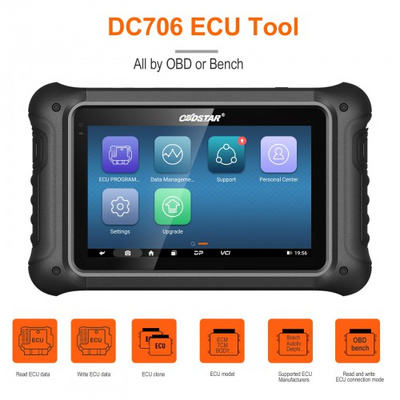

[Two Softwares] OBDSTAR DC706 ECU Tool for Car and Motorcycle ECM TCM BODY Clone by OBD or BENCH
Three standard versions for selection: ECM clone(Car/Motorcycle) + TCM clone, ECM clone(Car/Motorcycle) + Body/Other clone, TCM clone + Body/Other clone
[Two Softwares] OBDSTAR DC706 ECU Tool for Car and Motorcycle ECM/ TCM/ BODY Clone by OBD or BENCHThree standard versions for selection:
1. ECM clone(Car/Motorcycle) + TCM clone
2. ECM clone(Car/Motorcycle) + Body/Other clone
3. TCM clone + Body/Other cloneOBDSTAR DC706 Configurations
| Configuration | Software |
| DC706_ EN A | ECM |
| DC706_ EN_ B | TCM |
| DC706_ EN_ C | BODY |
| DC706_ EN D | ECM+TCM |
| DC706_ EN E | ECM+B0DY |
| DC706_ EN F | TCM+B0DY |
| DC706_ EN_ FULL | ECM+TCM+BODY |
OBDSTAR DC706 ECU tool is designed for vehicle ECM, TCM and body/other system for ECU flasher. It can read ECU info, R/W Eeprom/Dflash/Pflash/MAP, reset ECU(Virgin), calibrate mileage, read IMMO pincode, ECU recovery... It's all by OBD or bench mode and makes ECU cloning easy.
Product Function: ECU Clone/ All by OBD or Bench
ECM clone for cars(Bosch, Continental, Delphi, Denso, Magneti Marelli, Siemens...)
ECM clone for motorcycles(Bosch, Delphi, EFI...)
TCM clone(Ac Delco, Bosch, Continental, Getrag, GM, Kefico, Siemens, Temic, ZF...)
Body/Other clone(FCA, FIAT, FORD, GM/OPEL, LAND ROVER/JAGUAR, PSA, SMART, VOLVO...)
Notice:
Versions of DQ250 models before 2008 are not supported, and the protocols are different. Supported ECU Manufacturers:
ALPS
Autoliv
Bosch
Continental
Delphi
Denso
Johnson Controls
Lear
Magneti Marelli
Siemens
Temic
Valeo
Supported Brands:
Car
ASTON MARTIN
BMW
FAW
FCA(ALFA ROMEO, CHRYSLER, DODGE, FIAT...)
FORD/LINCOLN
GM/OPEL
HYUNDAI/KIA
LAND ROVER/JAGUAR
LUXGEN
MASERATI
MAZDA
MITSUBISHI
NISSAN
OPEL
PSA
SMART
SUBARU
SUZUKI
VOLVO
VW/AUDI/SEAT/SKODA
Motorcycle:
APRILIA
BRP
CFMOTO
DERBI
GILERA
GUZZI
PEUGEOT
PIAGGIO
QJBENELLI
VESPA
Advanced Functions:
1. R/W eeprom/dflash/pflash/Map, reset ECU(Virgin), calibrate mileage, read IMMO pincode, ECU recovery...
2. Support 710+ ECM types(Partial functions require P003 adapter.)
3. Support 120+ other ECU types(AIRBAG, BCM, BSI, CEM, DDM/PDM, DIM, EPS, KeyLess(RFHUB/RFHM), KVM, RFA, SAM...)
4. Support VW DQXXX (TCM) calibrate mileage
5. Support motorcycle Delphi MT05, MT05.2, MT05.3 ECU clone
6. Support motorcycle BRP ME17.8.5 ECU clone (works with P003 adapter)
7. Support Piaggio series engine ECU clone(such as MIU G4 (M4G1))
8. Support intelligent search by brand, model, part No., ECU manufacturer, MCU controller type
9. Support automatic identification
10. Strong help data files
11. All by OBD or Bench mode
More functions are in developing...
Product Specifications: | Operation system | Android 5.1.1 |
| CPU | RK3128 quad-core ARM cortex A7 |
| Battery | 3700mA, rechargeable polymer lithium battery |
| Extension memory card | 32G micro SD (TF) card supported |
| Storage capacity | 16GB |
| LCD | 7.0 inch |
| LCD resolution | 1024*600 |
| Touch screen | Capacitive touch screen |
| Wifi | Supported |
| Working temperature | -20℃~55℃ (14℉~131℉) |
| Storage temperature | -20℃~70℃ (-4℉~158℉) |
| Weight | About 1.3kg |
| Dimension | 243mm*148mm*36mm |
Function Display:
1) Main Page/Brand Supported
1pc x DC706 Main Unit
1pc x main cable
1pc x P004 adapter
1pc x P004 ECU clone jumper
1pc x 12V2A charger
