TOPDIAG P200 Automotive Electrical Circuit System Tester for Car Truck Motorcycle Boat
- TOPDIAG P200 Smart Hook Powerful Probe tests all 9V-30V electronic systems quickly, which making it more convenient, faster and smarter!
- Free Update Online.
TOPDIAG P200 Automotive Electrical Circuit System Tester for Car Truck Motorcycle Boat

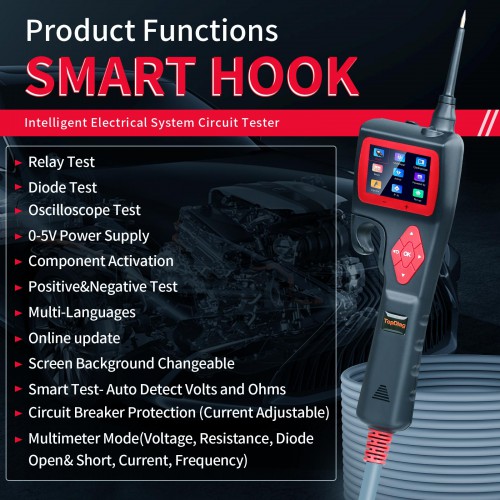

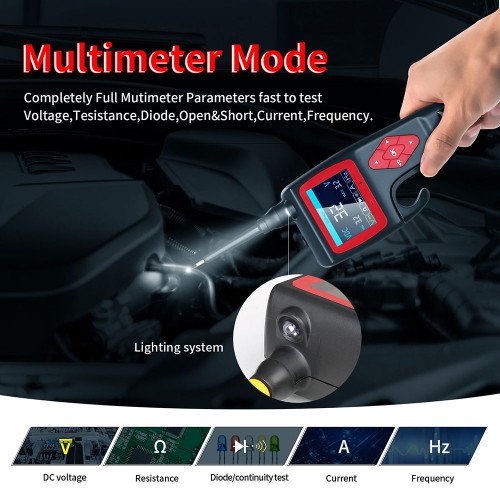

TOPDIAG P200 SMART HOOK Powerful Probe, the new generation of intelligent circuit analyzer, is the only circuit tester that can be upgraded in the market. It can test all 9V-30V electronic systems quickly. The test time can be greatly shortened, making it more convenient, faster and smarter!TOPDIAG P200 Highlights:1. Free Update Online with One Year Warranty2. Cable length: 6.0 Meters. With connector, it is more than 6.0 Meters which makes work more easier.3. The test time is greatly shortened, convenient, fast and smarter!4. For all 9V-30V electronic systems, Supports Car Truck Motorcycle Boat5. Multi-languages: English, Spanish, Dutch, French, Italian, Portuguese, Polish, Russian, Vietnamese and Chinese.You can change launguese by yourself any time.6. Ship from US/EU Warehouse Tax Free.TOPDIAG P200 Functions:1. Intelligent identification of voltage/resistance2. Multimeter mode (measure voltage, resistance, diode, continuity, current and frequency)3. Relay test4. Injector test5. Diode test6. Oscilloscope function7. 0-5V adjustable power supply8. Activation of vehicle components9. Positive and negative polarity test10. Intelligent circuit breaker protection (adjustable overload)11. Screen style background optional12. Network can be upgraded online13. Built-in Multi-lingual settings.

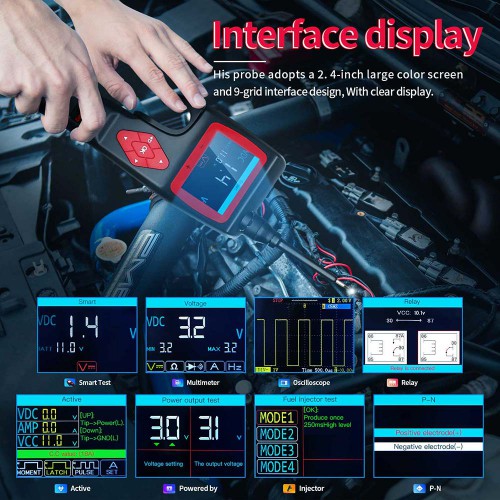

TOPDIAG P200 Working Mode Display:
JDIAG P200 vs. PPH1 vs. Autel PowerScan PS100:
TOPDIAG P200 Specifications and Parameters 1) Display............ (320*240 DPI) TFT true color display2) Working temperature: ........... 0-60°C (32-140 F°)3) Storage temperature:...........40-70°C (-40-185 F°)4) External power supply: ... 12V or 24V powered by battery5) Minimum working voltage:...9V6) Maximum working voltage: 30V7) Maximum measuring voltage: 150V8) Minimum measuring voltage: .....................0.1V9) Resistance measurement range:... 1 ohm~200K ohm10) Current measuring range: ..................... 0~18A11) Maximum continuous current: ..................... 18APackage includes: 1pc x Solid copper test probe tip1pc x Extension connection line1pc x Alligator battery clip1pc x Relay test line1pc x Probe adapter1pc x 25Amp fuse
