Texa TPS2 TPMS Sensors Tool Programming OEM Sensors

Product Code:

22494 Weight:0.5Kg

Categories: Diagnostic Tools

Price: $ 788.00

Quantity:

Buy Now
ADD TO CART
Add to Wishlist
Share this:
Product Specification
Manufacturer TEXA
Weight 0.5 Kg
Overview

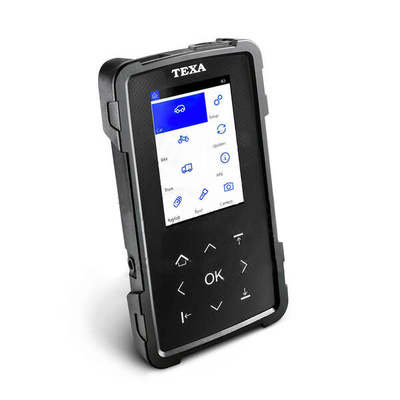

Texa TPS2 TPMS Sensors Tool Programming OEM Sensors
New Texa TPS2 TPMS Sensors Tool A Complete Tool For All Wheel Management Needs, Even In Future

Only Work With OEM Sensors

TPS2 is a new tool from TEXA that offers tyre fitters all the functions they need and guarantees complete reliability in use.

TPS2 is engineered to dialogue quickly and easily even with sensors that require particularly high power, especially during activation.

A 5 megapixel HD camera with AF lets you take photos for attaching to customer reports. You can even use it to read QR codes if necessary.

TPS2 comes with 4 GB of internal memory and also boasts a slot for microSD cards. These can be used to save and load reports on the work done on customers’ vehicles and also to ensure the efficient management of seasonal tyre changes.

TPS2 lets you work on three types of vehicle: CAR-BIKE-TRUCK.

The tool can communicate with sensors in two ways: manual selection and TWS2, the latest development of TEXA’s TWS function (also found on TPS), faster and more effective than ever.






TPS2 is robust, fast, simple to use, and features a display large enough to let you view all the information you need on a single screen. This unique combination of features makes TPS2 the top tool for TPMS work.TPS2 communicates with the TPMS control unit via Bluetooth (Dual Mode). A Wi-Fi module also lets you connect to the internet and download software updates to expand the vehicle database or add new software functions.TPS2 comes with a dedicated software utility for activating the tool, consulting manuals, searching for updates and running TEXA TYRE MANAGER software.





Technical Specifications



PROCESSOR
Cortex M7

MEMORY
RAM 8 MB
Flash 4 GB

DISPLAY
LCD IPS 3,5″ 480×320

CAMERA
5 MP autofocus; flash LED

TRANSMISSION FREQUENCY
125 kHz

RECEPTION FREQUENCIES
433 MHz – 434 MHz

CABLE COMMUNICATION
USB

WIRELESS COMMUNICATION
Class 2 dual mode Bluetooth with built-in antenna.
WiFi 802.11 b/g

BATTERY
Li-ion 2500 mAh – 3,7 V

AUTONOMY
approximately 10 hours

CONSUMPTION
USB connector 500 mA max

CHARGE
approximately 5 hours with the device switched off

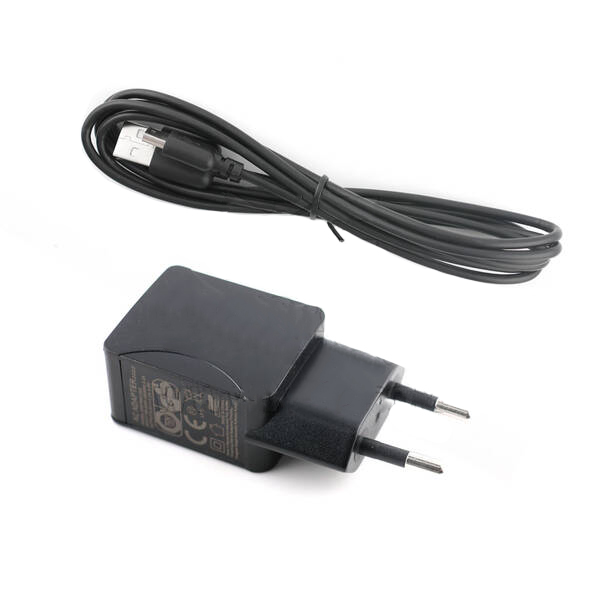

EXTERNAL CHARGER
Modello K06S050120G
230 Vac / 5 Vdc 1,2 Adc

ENVIRONMENTAL
Operating temperature: – 10 °C ÷ 45 °C
Storage temperature: – 20 °C ÷ 60 °C
Temperature while charging: 0 °C ÷ 45 °C
Storage and operation moisture: 10 % ÷ 80 % without condensation
