| Manufacturer | TEXA |
| Weight | 0.5 Kg |

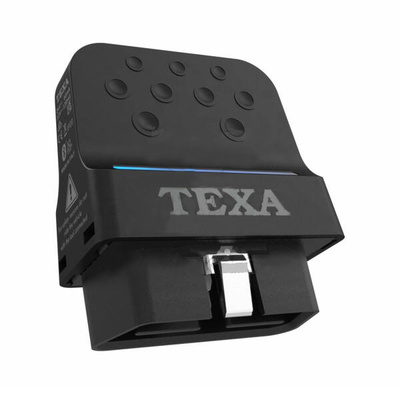

A diagnostic interface dedicated to the diagnosis on outboard engines and personal watercrafts.
Its design aims at ensuring compatibility with a wide range of engines, offering a versatile and flexible solution for the repair and maintenance needs of specialised technicians. Lastly, it integrates an advanced technology that allows recording the diagnostic tests also while moving*.

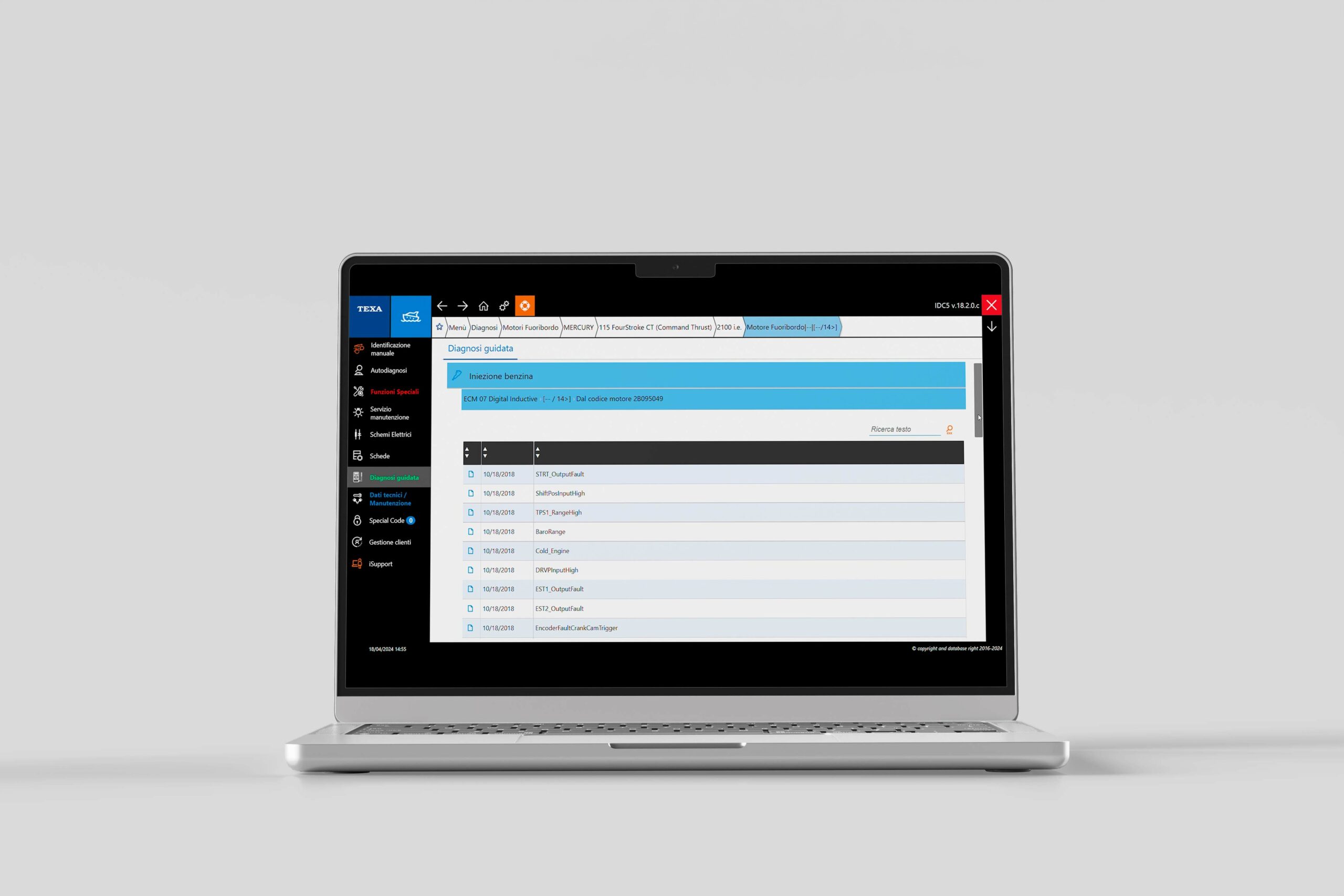

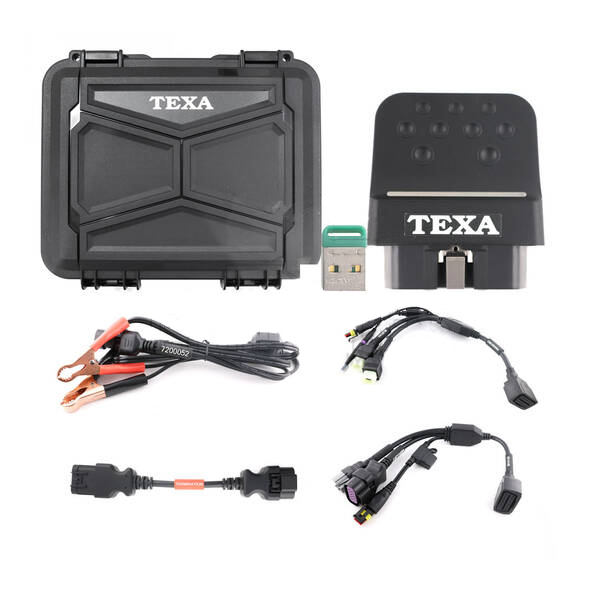

TXB ZERO is supplied in a handy case that contains the necessary cables to operate on the many outboard motors and jet skis present in the IDC6 MARINE diagnostic software, specially developed for this tool and rich in technical data, interactive electrical diagrams, technical sheets, nominal values associated with errors, and much more.
MODEL
NAVIGATOR TXB Zero
MANUFACTURER
TEXA S.p.A.
PROCESSOR
ARM Cortex M4 (STM32F439ZIY6)
MEMORY
• SDRAM: 8 MB
• Flash NAND: 4 GB
VEHICLE BATTERY
12Vdc and 24Vdc system management
EXTERNAL POWER SUPPLY
12 / 24 Vdc
WIRELESS CONNECTION
Bluetooth Classic (2.1)
OPERATIONAL BAND
2400 – 2483.5 MHz
MAXIMUM RADIO FREQUENCY POWER TRANSMITTED
4 dBm
DIAGNOSTIC CONNECTOR
OBD ISO15031-03 for 24 V systems
SUPPORTED AUTOMOTIVE BUS TYPES
• 4 HS CAN transceivers connected to OBD pins
3-11, 1-9, 12-13, 6-14 that can be enabled
individually
• 1 J1708 transceiver connected to pins 12-13
• 1 ISO9141-2, ISO14230 transceiver with 60mA
current protection connected to pins 3 or 7
VISIBLE WARNINGS
• Green/red bi-colour LED x1
• Blue LED x1
12 V CONSUMPTION
< 120 mA
24 V CONSUMPTION
< 60 mA
OPERATING TEMPERATURE
0 ÷ 50 °C
STORAGE TEMPERATURE
– 20 ÷ 60 °C
OPERATING MOISTUREESERCIZIO
10% ÷ 80% without condensation
