Product Code：
22486 Weight：3KgCategories: Diagnostic Tools
| Manufacturer | TEXA |
| Weight | 3 Kg |
AXONE NEMO PLUS offers an unrivalled diagnostic experience. Its robustness and reliability ensure a hassle-free use, besides a greater durability than a conventional tablet. Thanks to its unique features, it is the ideal tool to improve the efficiency and expand the possibility to operate on any type of vehicle.
AXONE NEMO PLUS is equipped with the Windows 11 operating system for an unprecedented operability.
The Intel® N100 processor, the 16 GB RAM and the 250 GB SSD storage guarantee extraordinary performance and an instant response speed.
Thanks to the latest-generation Wi-Fi, it can connect to the company’s Internet network to view online contents. The Bluetooth® 5.3 module provides the flexibility of a rapid connection to the TEXA vehicle interfaces. With the built-in camera, it is very easy to capture every detail of the maintenance operations at any moment, to create reports that can be handed over to customers, or technical photos that can be rapidly sent
to the technical assistance.

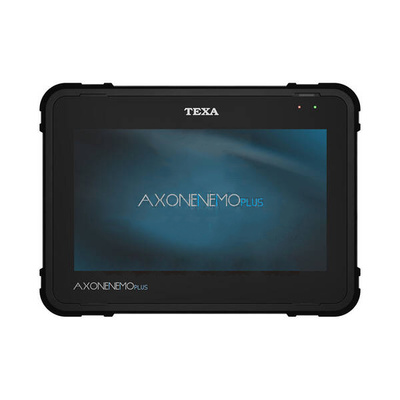

AXONE NEMO PLUS has a high-contrast ultra-wide 11.6-inch display, with a 1920×1080 pixel resolution. This solution offers a unique and complete viewpoint on the advanced diagnostic functions in the IDC6 software.
The wide screen guarantees an optimal display of the diagrams and technical data, providing full visual support for diagnostic and repair operations. The reactive touchscreen allows a smooth navigation between the applications, further simplifying the job.
Tailor-made for vehicle repairers, AXONE NEMO PLUS takes the diagnostic and repair experience to a higher level, providing clarity, reliability and uncompromising performance.
The magnesium body, which has always been a feature of the NEMO display units, offers robustness, lightness, and a hassle-free use in the harshest work environments.
Moreover, its compliance with the MIL-STD 810G (transit drop test) military standard confirms its resistance also in extreme conditions.
These features, along with the careful design of its internal elements, guarantee an optimal
level of thermal dissipation, to manage complex and extended diagnostic sessions successfully.
For over three decades, the AXONE line has been synonymous with reliability, thanks to advanced and robust solutions that are able to support
vehicle repairers in every aspect of their daily work.
The introduction of AXONE NEMO PLUS follows a long path of excellence, with an optimised design and a top-notch technology.
The legacy of the NEMO display units meets the strong tradition of AXONE, giving life to AXONE NEMO PLUS: a tool that is ready to support the industry operators, guaranteeing innovation in the diagnostics world.
The AXONE line offers all technicians the possibility to choose the display unit that suits their needs the most.
IDC6 was designed and developed following a multi environment logic to be used efficiently on cars, light commercial vehicles, trucks, agricultural and construction vehicles, bikes and boats.
AXONE NEMO PLUS offers the possibility to operate on any three environments simultaneously, guaranteeing
flexibility and efficiency in your daily work.
MANUFACTURER
TEXA S.p.A.
MODEL
AXONE NEMO PLUS
PROCESSOR
Intel© N100 with optimised dissipation thanks to the magnesium body
RAM
16 GB DDR5
HARD DISK
250 GB SSD with ultra-fast PCIe technology
BIOS
64 Mbit Flash ROM, AMI BIOS
OPERATING SYSTEM
Windows™ 11 IoT Enterprise
Trusted Platform Mobile 2.0
VIDEO PERIPHERAL DEVICES (built-in)
High-contrast ultra-wide view angle display;
Dimensions: 11.6” QXGA;
Resolution: 1920×1080 pixel;
High-sensitivity touch controller;
Liquid bonding technology for screen protection and a higher resolution
AUDIO PERIPHERAL DEVICES (built-in):
2 speakers
1 MEMS digital microphone
WIRELESS PERIPHERAL DEVICES (built-in):
• Wi-Fi: 6E (802.11ax) new generation
• Bluetooth: 5.3 new generation
OTHER FUNCTIONS
± 8 g 3-axis digital accelerometer
I/O PERIPHERAL DEVICES

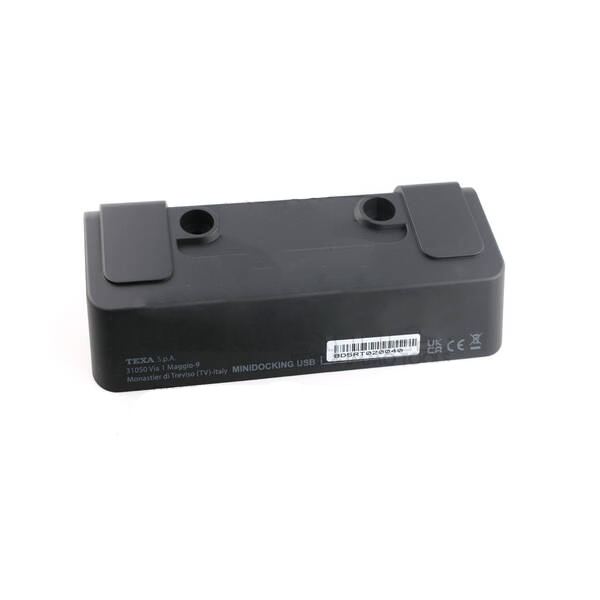

1 proprietary connector for hub with 4 USB Type-A ports
CAMERAS
2 Mpixel, LED flash
LEDs
1 green LED (system status)
1 red LED (charging / power supply status)
ROBUSTNESS
Rugged design compliant with MIL- STD 810G (Transit Drop Test)
INTERNAL BATTERY
Rechargeable Li-ion 7,2 Vdc; 50,3 Wh; 6990 mAh long-lasting

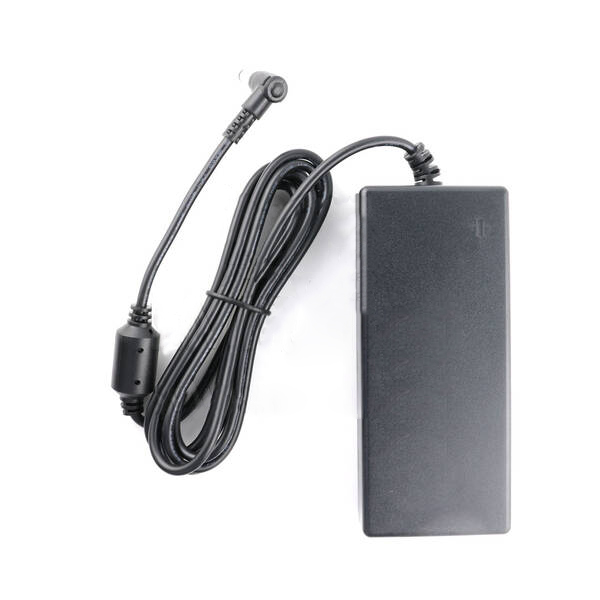

EXTERNAL POWER SUPPLY
From external power adapter
• Input: 100-240 Vac; 1,5 A;47-63 Hz
• Output: 19 V – 3,7 A
ABSORPTION
12 Vdc (4 Adc) – 24 Vdc (2 Adc)
OPERATING TEMPERATURE
0 ÷ 40 °C
