| Manufacturer | TEXA |
| Weight | 3 Kg |

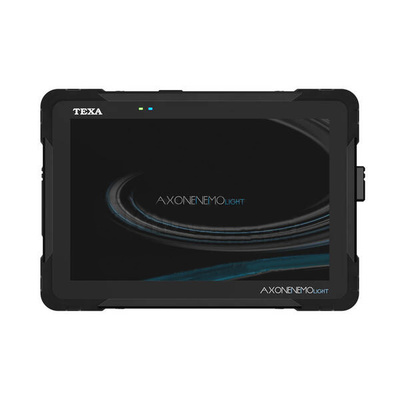

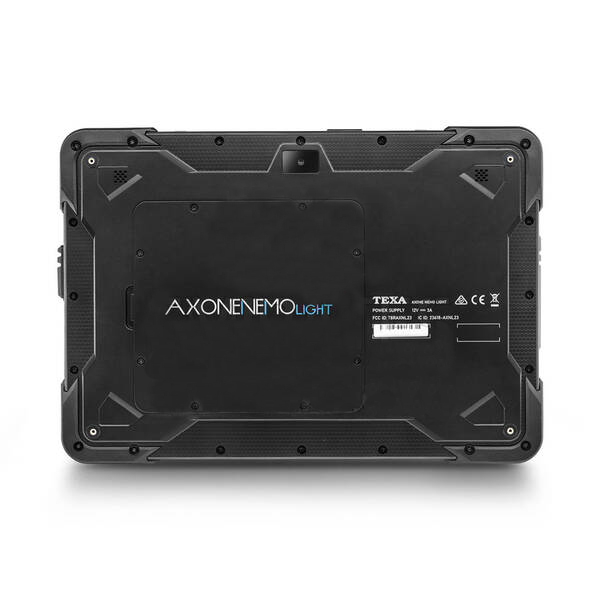

AXONE NEMO LIGHT was specifically designed for the severe automotive industry environment, integrating optimal functions to face the specific challenges of the industry. With a compact and reinforced design, this device is distinguished by its reliability and practicality, thus guaranteeing optimal performances in any situation. Equipped with advanced technology, AXONE NEMO LIGHT guarantees high-level performances, essential for
a continuous use in the workshop.
Its operating system, Windows 11 Enterprise, is driven by an Intel N100 Quad Core processor, all displayed in a 10.1” bright display. Furthermore, it has 8 GB of RAM, optimal to manage the performances of the calculation system, and a 250 GB memory, which offers sufficient space to file data and applications. Connectivity is guaranteed by the Wi-Fi and Bluetooth 5.2 modules, with quick and reliable access to the networks and tools.
AXONE NEMO LIGHT was designed and built to satisfy any need in every context of use. Its special latest generation reinforced body makes it suitable for a large range of interventions, which extend from automotive workshops to shipyards, from maintenance activities on off-highway vehicles and heavy-duty vehicles to two-wheelers. Its compact size guarantees practicality and mobility in various work situations or operative contexts.
There are no limitations, thus assuring versatility and reliability in any circumstance.
AXONE NEMO LIGHT, just like its “big brothers” PLUS and VOICE, has a very powerful operating core that allows it to reach calculation speeds 30% higher compared to the previous generation*.
The diagnostic environments load in a second and the function can be launched with a simple touch. Not bad for the smallest in the family.
The processor, the powerful battery and the operating system chosen for AXONE NEMO LIGHT work together to guarantee optimal autonomy during a working day.
Not only does their synergy optimise the device’s performances, but it also guarantees reliable and long lasting operation in any context. This combination means that AXONE NEMO LIGHT is always ready to face diagnostic challenges with efficiency and precision.
Thanks to the 10.1” high-contrast multi-touch capacitive display with a 1920×1200 pixel resolution, AXONE NEMO LIGHT offers an extraordinary useability and a detailed control on all the operations that must be completed.
Furthermore, the visual clarity and richness of details allow examining the data with precision and make navigating through the various functions easier, contributing to a more efficient and accurate diagnostic process. Its state-of-the-art technology allows interacting with the interface in an easy and more fluid way, offering an intuitive and captivating user experience to face work precisely and efficiently.
IDC6 was designed and developed following a multi-environment logic to be used efficiently on cars, light commercial vehicles, trucks, agricultural and construction vehicles, bikes and boats.
AXONE NEMO LIGHT offers the possibility to operate on any two environments simultaneously, guaranteeing flexibility and efficiency in your daily work.
MANUFACTURER
TEXA S.p.A.
MODEL
AXONE NEMO LIGHT
PROCESSOR
Intel© N100 with standard dissipation
RAM
8 GB DDR5
HARD DISK
250 GB with eMMC technology
BIOS
64 Mbit Flash ROM, AMI BIOS
OPERATING SYSTEM
Windows™ 11 IoT Enterprise
VIDEO PERIPHERAL DEVICES (built-in)
High-contrast ultra-wide view angle display;
Dimensions: 10.1”;
Resolution: 1920×1200 pixel;
High-sensitivity touch controller;
Fully laminated capacitive display.
AUDIO PERIPHERAL DEVICES (built-in):
2 speakers
WIRELESS PERIPHERAL DEVICES (built-in):
• Wi-Fi: 6 (802.11ax)
• Bluetooth: 5.2
I/O PERIPHERAL DEVICES
1 USB Type A 2.0
1 USB Type A 3.0
1 micro HDMI
CAMERAS
Front: 2 Mpixel
Rear: 5 Mpixel
LEDs
1 green LED (system status)
1 red LED (charging / power supply status)
ROBUSTNESS
Rugged design
INTERNAL BATTERY
Rechargeable Li-ion 7,4 Vdc; 44,4 Wh; 6000 mAh

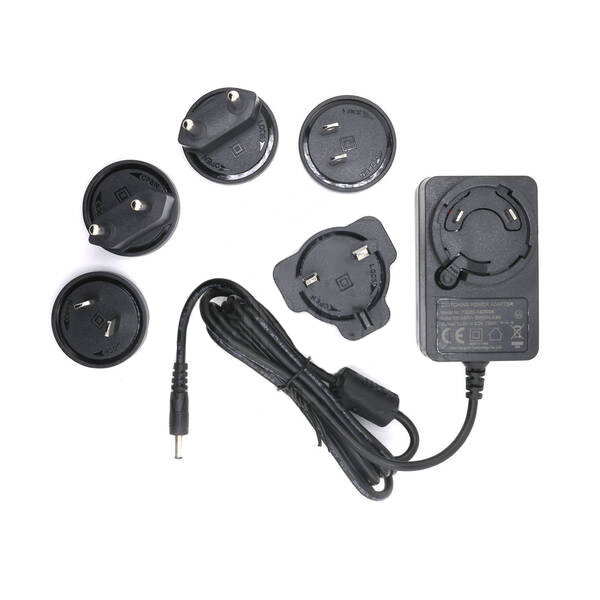

EXTERNAL POWER SUPPLY
From external power adapter:
• Input: 100-240 Vac; 0.8 A; 50-60 Hz
• Output: 12 V – 3.0 A
ABSORPTION
12 Vdc (2Adc)
OPERATING TEMPERATURE
0 ÷ 40 °C
