Autel MaxiIM IM608 II (IM608 PRO II) Automotive All-In-One Key Programming Tool No IP Limitation with 1 More Year Total Care Program

[Ship from US] [US Version] 2026 Autel MaxiIM IM608 II (IM608 PRO II) Automotive All-In-One Key Programming Tool No IP Limitation with 1 More Year Total Care Program

Product Code：

22244A Weight：11Kg

Categories: Key Programmer

Price: $ 2788.00

Quantity：

Buy Now

ADD TO CART

Add to Wishlist

Share this：

Product Specification

Manufacturer	Autel
Language	English, German, Swidish, Italian, Portuguese, French
Update	2 years free online update
Warranty	1 year
Weight	11 Kg

Overview

[Ship from US] [US Version] 2026 Autel MaxiIM IM608 II (IM608 PRO II) Automotive All-In-One Key Programming Tool No IP Limitation with 1 More Year Total Care Program

Autel IM608 II improved firmware, Android 10, larger RAM, ROM, with new JVCI+ VCI.
Add bulit-in DoIP and CAN FD protocol (don’t need converter)
Support remote expert function
with 1 More Year Total Care Program, makes total 2 years free update

Autel MaxiIM IM608 II (IM608 PRO II) Automotive All-In-One Key Programming Tool with 1 More Year Total Care Program

What is Autel MaxiIM IM608 II ?

Autel MaxiIM IM608 II is the most advanced key programming tool that combines the powerful IMMO and programming functions with OE-level diagnostics and advanced service functions in one tablet. It can read the immobilizer pins and password directly from the vehicle and store this information to use later when learning the newly programmed keys to the vehicle.

Autel MaxiIM IM608 II (IM608 PRO II)

Highlights:

1. Autel MaxiIM IM608 II = IM608 PRO II
2. No IP Limitation: You Can Use it All Around the World without Limitation
3. One Year Free Update Online. With 1 More Year Total Care Program, makes total 2 years free update.
4. Upgraded Version of Autel IM608 and IM608 PRO, with the latest powerful hardware configuration
5. Smart Mode and Expert Mode Solution In One Tool to Easy Operation with Ambient Light Sensor – detects ambient brightness.
6. Support Multi-Language: Both Diagnose Software and IMMO Software Support Multi-Language. (Default Language is English, Can Be Changed Language to German, Swidish, Italian, Portuguese, French, etc.)
7. Works for 85% Cars In The Wordwide, Include BMW, BENZ, VW, AUDI etc. make your work simple and easier, Best Choice for Locksmith and Workshop
8. Extended to Work with Autel MV108/ MV105 allowing you to examine difficult-to-reach areas normally hidden from sight. It is capable of recording digital still images and videos, which offers you an economical solution to inspect machinery, facilities, and infrastructure safely and quickly

AUTEL IM608 II Supported Functions :

1. IMMO Functions

Auto Detect Make/Model/Year/System
Read PIN (All Key Lost)
Key Learning
IMMO ECU Reset/Adaption
IMMO ECU Refresh/Coding
Remote Learning
AUDI Q5/A4/A5 2015-2017 Key Learning
VW MQB Key Learning
BMW FEM/BDC Key Learning and Adaption
BMW CAS4 Key Learning and Adaption
Mercedes Key Learning
2015-2018 Land Rover & Jaguar write key via dump
Volvo Smart Key Learning/knob-style smart key
Advanced Programming Functions
EEPROM Read/Write
MCU Read/Write
Key Programming
Mercedes Key Read/Write
Remote Frequency Detect
OE-Level Diagnoses

Autel MaxiIM IM608 II

XP400Pro Adds Support for Following Chips:

EEPROM-->>AMD-->>AM29FXXX series chip
EEPROM-->> FUJITSU-->> MB29FXXX series chip
EEPROM-->> ST-->> M29FXXX series chip
Engine control module-->> ST-->> M29FXXX series chip
IMMO-->> BENZ-->> ESL_W209_W906 (Motorola) read/write/erase function
IMMO-->> BMW-->>EWS3 module read/write function
REMOTE_RENEW(renew key)-->> NEC-->> V51 and V5 chip read/write/erase

XP400Pro Adds Support for Following Adaptor Board:

APB113 PCF79XXadaptor board
APB114 EWS3 adaptor board
APB115 NEC Adapter board
APB118 NEC ELV adaptor board
APB119 TB28FXXXadaptor board
APB120 TMS370adaptor board
APB121 AM29FXXX Adapter board
APB122 AM29FXXX adaptor board1
APB123 AM29FXXX adaptor board2
APB126 M35080/D80 adaptor board
APB127 MC68HC0(7)05BXX adaptor board
APB128 MC68HC05X32 adaptor board

XP400 PRO

OE-LEVEL ALL SYSTEM DIAGNOSTIC

Autel MaxiIM IM608 PRO II supports OE-Level all system diagnostic on 150+ brand vehicles: including Engine, ABS, SRS, EPB, SAS, TPMS, EBM, etc. Mainly functions: read/erase 7000+ DTCs, active test, Live data fusion, VIN/ 0d-me.ter Check, retrieve ECU info and so on. With Auto VIN/ Scan License to quickly identify vehicle info.

Autel MaxiIM IM608 PRO II Diagnosis

ECU Coding as Ultra MS919

Upgrade of IM508S/ IM508S PRO/ IM608S/ IM608 PRO, Autel MaxiIM IM608 PRO II auto scan tool realizes more proficient ECU Coding, Online Coding, ECU Replacement features. It can easily modify ECU, reve**al hidd**en features, disable useless functions, match/ learn/ c*de any replaced ECU modules for 99% vehicles like for Volkswagen Honda Mitsubishi Porsche BMW Chrysler Skoda VW GM Suzuki etc.

Autel IM608 PRO II ecu coding

BI-DIRECTIONAL CONTROL, 3000+ ACTIVE TEST

Autel MaxiIM IM608 PRO 2 supports 3000+ active tests to locate car issues quickly, it can send commands to the ECUs to monitor the response of actua-tors, help mechanics quickly troubleshoot, 5X faster than IM608 PRO/ IM508 PRO / IM508/ IM608S. Tests like windows up/ down, sunroof test, cycling A/C clutch on/ off, Mirror fold/ unfold, ABS Auto Bleed, Injector Test, evapora.tive emissi.ons lea.k test, Inlet & Outlet Value, Fu-el Pump, Radiator Test, etc.

Autel im608ii pro active test

40+ Service Functions

From 28+ to 40+ service, Autel IM608 PRO II car scan tool has enhanced maintenance level and up to highest. It supports common service: Oil Reset, EPB, SAS, A/F Setting, Throttle, Suspension, Headlamp, Turbo, Injector Coding, etc. It also adds extra new enhanced special functions: ✅ECU reset, clutch matching, rain light sensor, etc.

Autel IM608 PRO II service function

Product Comparison Between Autel IM608 II and IM608 Pro

Product Model	/	IM608 II	IM608 Pro
Accessories	VCI	JVCI+	JVCI
Accessories	Programmer	XP400Pro	XP400Pro
Hardware Configuration	CPU	Qualcomm SDM660 Octa-core Processor 4x 2.2 GHz(A73) 4x 1.8 GHz(A53)	Samsung Exynos T5260 6-Core Processor: 4x 1.3 GHz(A7) 2x 1.7 GHz(A15)
	OS	Android 10.0	Android™ 4.4.2, KitKat
	Memory	4 GBRAM+128GB FLASH	2 GBRAM+64GB FLASH
	Display	10.1 inches	10.1 inches
	Resolution	1920*1200	1920*1200
	Battery	3.8V 15000 mAh	3.8V 15000 mAh
	BT	BT V5.0 + BR/EDR	BT V2.1 + EDR
	DoIP	Yes	Adapter required
	CANFD	Yes	Adapter required
diagnostic function	Basic functions	Full Function	Full Function
	Coding	Yes	Yes
	Programming	Mercedes-Benz BMW system	Mercedes-Benz BMW system
IMMO Functions	Matching device	Full Function	Full Function
	Programmer	EEPROM reading and writing, MCU reading and writing	EEPROM reading and writing, MCU reading and writing
	Key Tool Function	Yes	Yes
Remote expert	/	Yes	No

Autel IM608 II Quick Reference Guide:

Autel MaxiIM IM608 II Display

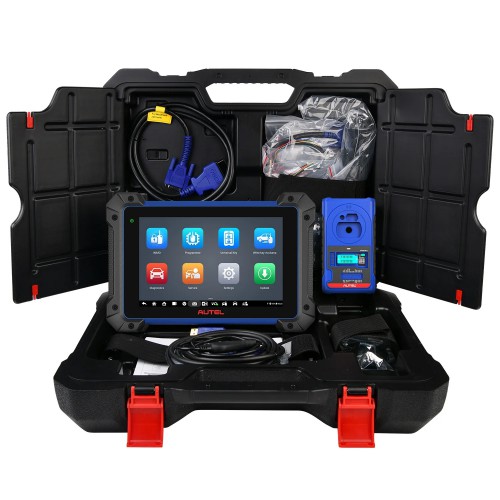

Package List:

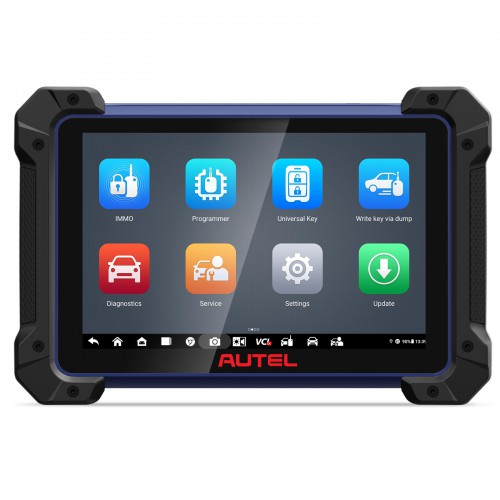

1pc x IM608 II Tablet

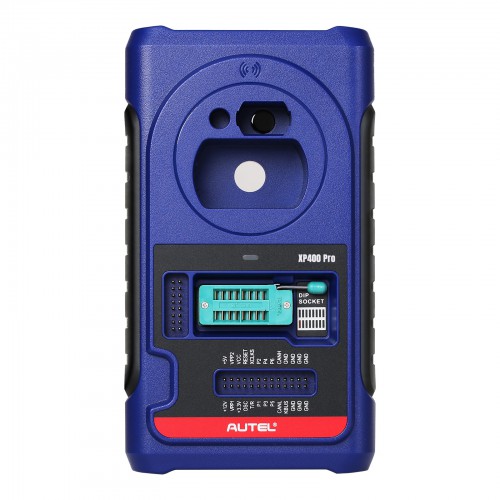

1pc x XP400 Pro Key Programmer

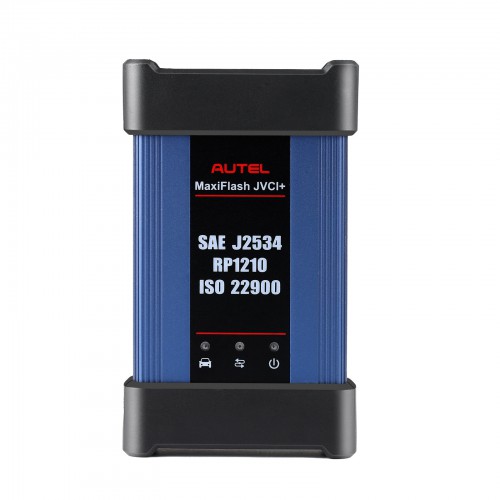

1pc x JVCI+ ECU Reprogrammer
1pc x Main Cable
1pc x USB Cable
1pc x Type-C cable
1pc x Connect Cable
1pc x AC/DC Adapter (12V)
1pc x APA002 (EEPROM Socket)
1pc x APA101 (Signal Cable)
1pc x APA103 (EEPROM Clamp)
1pc x APA107 (ECU Cable)
1pc x APA108 (MCU Cable)
1pc x APA109 (MC9S12 Cable)
1pc x APB104 (MCU_FQFP64)
1pc x APB105 (MCU_FQFP80)
1pc x APB106 (MCU_FQFP112)
1pc x APB107 (MCU_FQFP144)
1pc x APB108 (MCU_FQFP176)
1pc x APB125 (Mercedes Infrared Collector)
1pc x APB129 (EEPROM Adapter)
1pc x APC101 (USB Cable)
1pc x Packing list
1pc x Quick reference guide
1pc x Carry Case

Autel IM608 Pro II Package List
