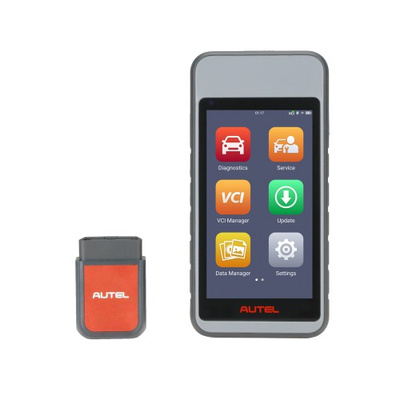

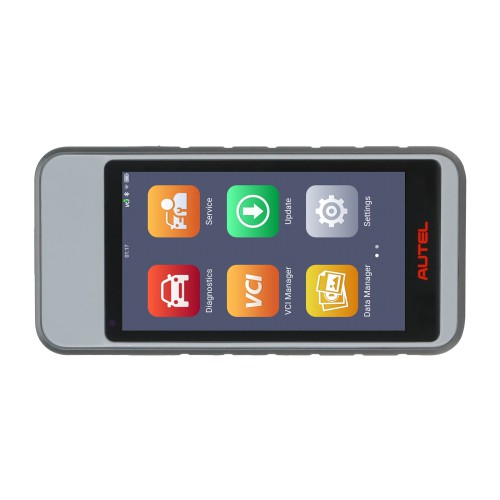

[Ship from EU] 2026 AUTEL MaxiDiag MD906 PRO (MD906PRO) All System Diagnostic Scanning + Maintenance Services with Android 9 System & Touchscreen Interface
- AUTEL MaxiDiag MD906PRO All System Diagnostic Scanning + Maintenance Services with Android 9 System & Touchscreen Interface.
- Free lifetime OTA software updates, cost-effective handheld solution.
Building upon its predecessor, Autel's latest handheld DIY diagnostic device MaxiDiag MD906PRO represents a comprehensive upgrade in both hardware and software. Transitioning from an embedded system to a more versatile Android platform, this next-generation tool expands diagnostic capabilities while streamlining user operations and update processes, delivering a significantly enhanced DIY experience.
MD906PRO empower DIY enthusiasts with professional-grade tools for routine maintenance, basic diagnostics, custom modifications, and personalized vehicle configurations.
1. Enhanced All System Diagnostics and Service Functions
2. Extensive and current year vehicle coverage for U.S., Asian, and European vehicle makes, access to all modules in all systems
3. Enhanced Mode 6 diagnostics, all system AutoScan DTCs detection, reads & clears codes, views live and freezes frame data
4. Support 11 service functions: OIL RESET, BREAK BLEEDING, INJECTOR, SAS, THROTTLE, EPB, BMS, TPMS, DPF, AFS Headlamp, A/F
5. Support OBDII protocols & all 10 OBDII test modes, perform I/M Readiness/ Emissions testing function
6. Outstanding Hardware, Faster Operation
7. 5.5-inch screen, 64G storage, Android-based platform, deliver user-friendly interface
8. 5,000mAh battery, deliver long battery-life
9. Bluetooth connectivity of VCI, more convenient in handheld operation scenarios
10. Advanced, expandable & cost-effective handheld system for DIY automotive maintenance sector
11. Support CAN FD communication protocol, compatible with advanced automotive systems
12. Access automakers security gateways, such as FCA, SFD, Nissan, etc.
13. Free lifetime OTA software updates, cost-effective handheld solution
Product Highlights: Outstanding Hardware:
5.5-inch screen, 64G storage, Android-based platform, deliver user-friendly interface
Extensive and current year vehicle coverage:
Access to all modules in all systems
Support CAN FD communication protocol, compatible with advanced automotive systems

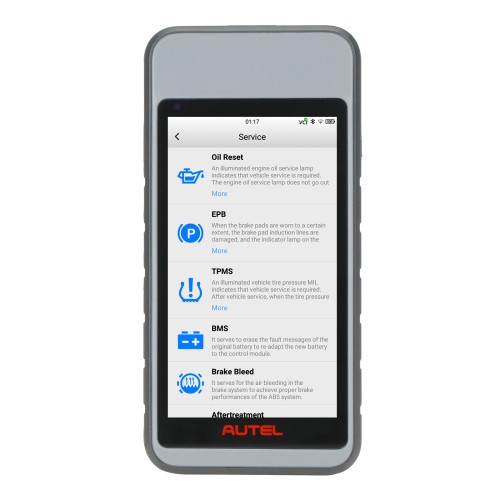

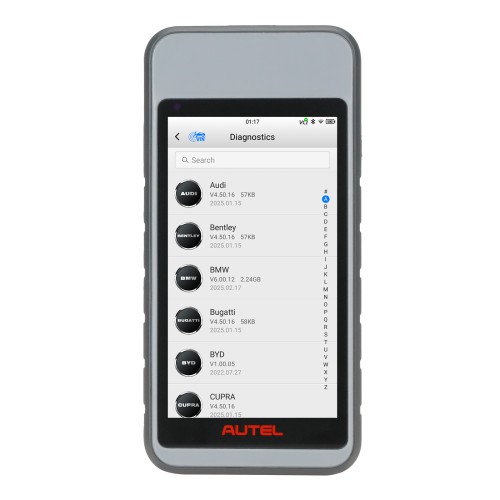

Diagnostics & Service Functions:
Enhanced Mode 6 diagnostics, all system autoscan DTCs detection, reads & clears codes, views live and freezes frame data
11 service functions
Support OBDII protocols & all 10 OBDII test modes, perform I/M Readiness / Emissions testing function
| Model | MD808PRO | MD906PRO |
| Hardware | VCI | Cable | V150 Lite |
| System | Embedded system | Android 9 |
| Battery | NA | 5000mAh |
| Storage | 16G | 64G |
| Screen | 4-inch | 5.5-inch |
| Function | Vehicle Coverage | Current year vehicle of Asia, Europe, America, China | Current year vehicle of Asia, Europe, America, China |
| System Coverage | All | All |
| Read/ Erase Code | ● | ● |
| Live Data | ● | ● |
| Security Gateway | NA | FCA, SFD, Nissan, etc. |
| Service | OIL RESET | ● | ● |
| BREAK BLEEDING | NA | ● |
| INJECTOR | NA | ● |
| SAS | ● | ● |
| THROTTLE | ● | ● |
| EPB | ● | ● |
| BMS | ● | ● |
| TPMS | NA | ● |
| DPF | ● | ● |
| AFS Headlamp | NA | ● |
| A/F | NA | ● |
| Communication Protocol | CAN FD | NA | ● |
| Software | FREE Lifetime Software | lifetime of tool | lifetime of tool |
Hardware Specifications:
5.5-inch Handheld touchscreen interface
Integrated Bluetooth communication, wireless connection of VCI
Software Capabilities:
All System Diagnostic Scanning + Maintenance Services
Expands upon MD808PRO's foundation with 5 additional service features

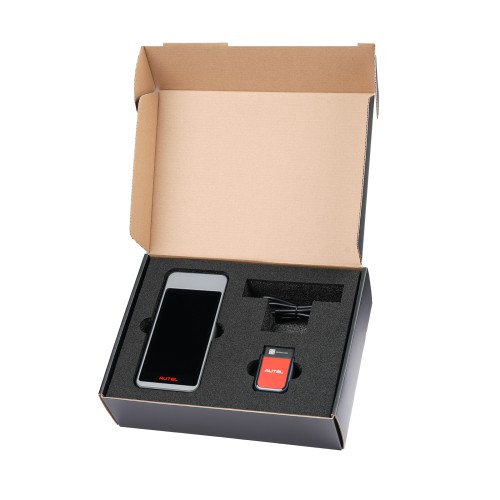

1pc x AUTEL MaxiDiag MD906PRO
1pc x V150 Lite VCI
