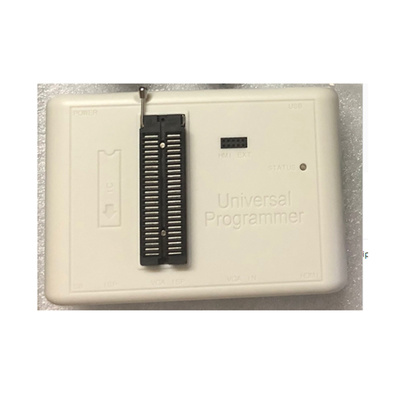

RT809H universal programmer for TSOP48 nand FLASH EMMC TSOP56 CAR/DVD/TV

1, 48-pins powerful pindrivers, no adapter required for any DIL devices

2, ISP connector for in-circuit programming

3, VGA port to read and write LCD TV-MONITORS without disassembly .

4, HDMI port to read and write LCD TV-MONITORS without disassembly .

5, Connection to PC: USB 2.0 (up to 480 Mbit/s, high speed/full speed) and 1.1 compatible interface

6, Comfortable and easy to use control program, works with all versions of MS Windows

7, can support any flash and very easy to add new flash .

8, High programming speed.

9, Advanced and powerful software functions.

10, Online Technical Support is also available 24 hours .

11, Provides very competitive price coupled with excellent hardware design for reliable programming.

12, the programmer performs device insertion test (wrong or backward position) and contact check (poor contact pin-to-socket) before it programs each device. These capabilities, supported by overcurrent protection and signature-byte check help prevent chip damage due to operator error.

13, The selftest capability allow to run diagnostic part of software to thoroughly check the health of the programmer.

14, Support Auto select for any series of flash including TSOP48-NAND-EMMC-PLCC,,ETC however Programmer is driven by an easy-to-use control program with pull-down menu, hot keys and on-line help. Selecting of device is performed by its class, by manufacturer or simply by typing a fragment of vendor name and/or part number.

15, All known data formats are supported. Automatic file format detection and conversion during loading of file.

16, The software also provide a special information about programmed device. As a special, the drawings of all available packages are provided

17, The software provide a full information for ISP implementation: Description of ISP connector pins for currently selected chip, recommended target design around in-circuit programmed chip and other necessary information.

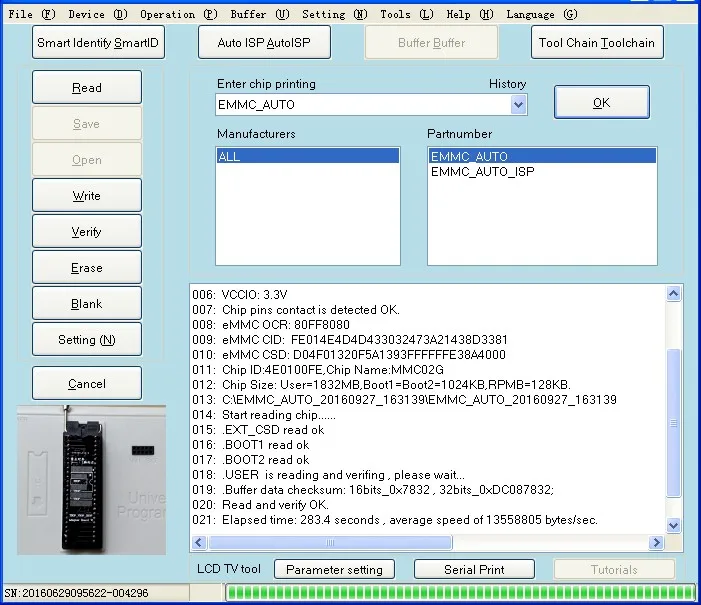

EMMC Read Verify 2GBytes with socket

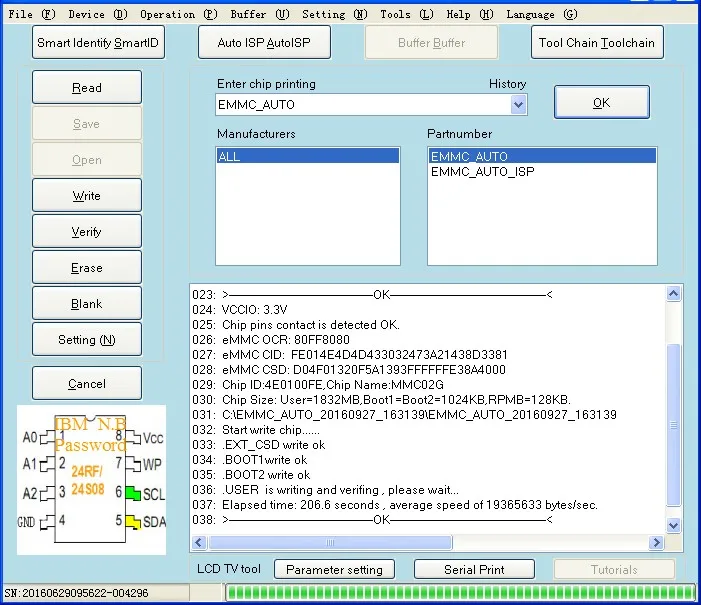

EMMC WRITE Verify 2GBytes with socket

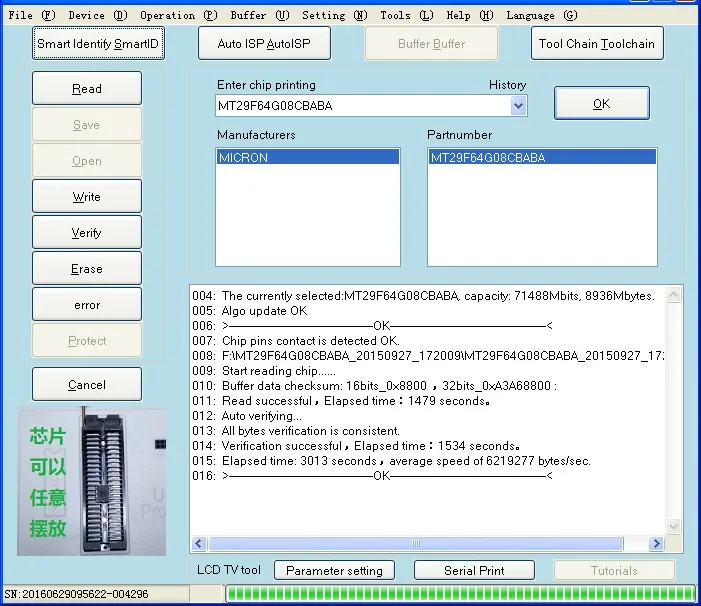

NAND Read Verify 64Gbits

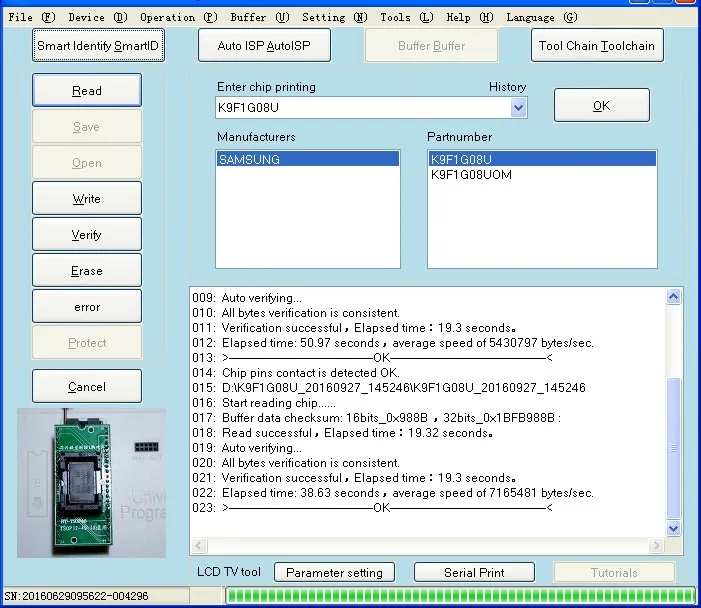

NAND Read Verify 1Gbits

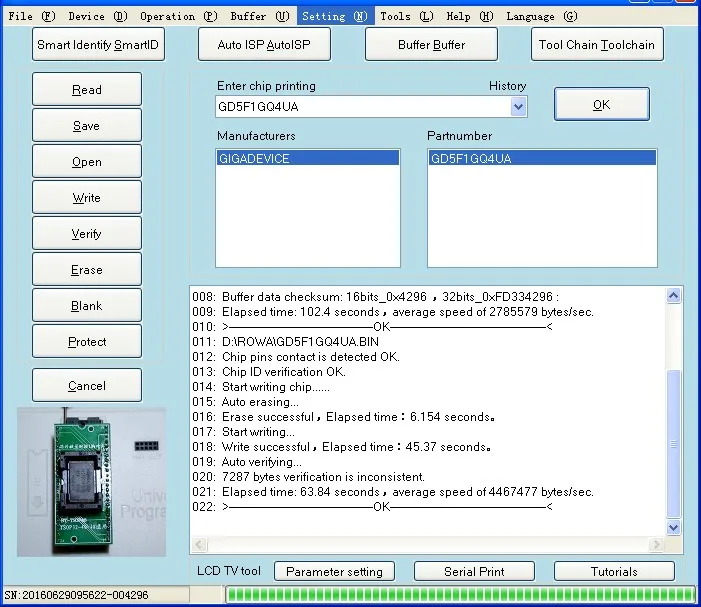

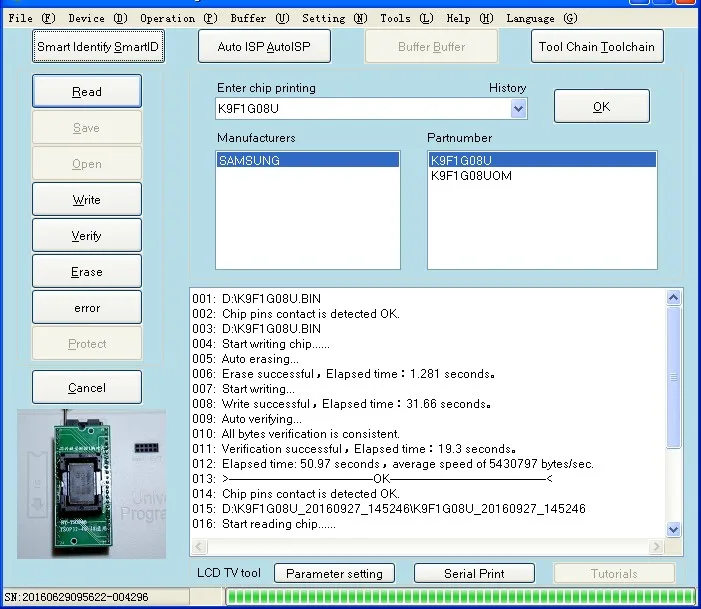

NAND WRITE Verify 1Gbits

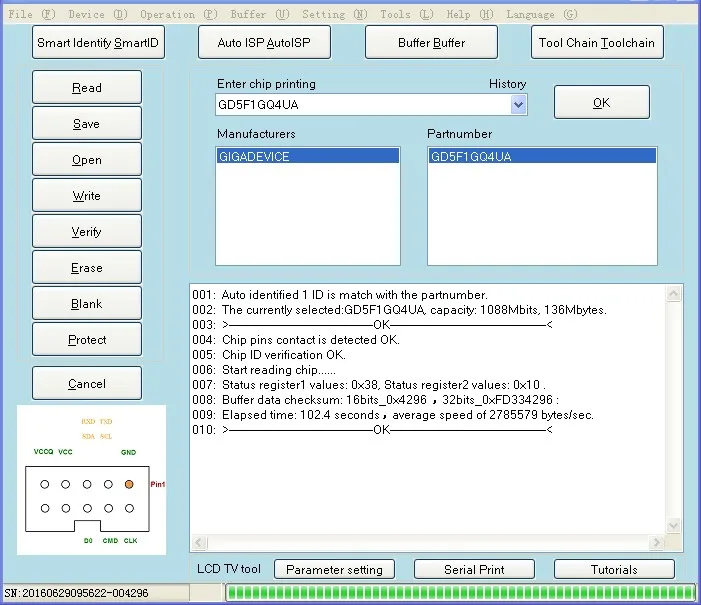

SPI NAND Read Verify 1Gbits

SPI NAND WRITE Verify 1Gbits

NOR Read Verify 512Mbits

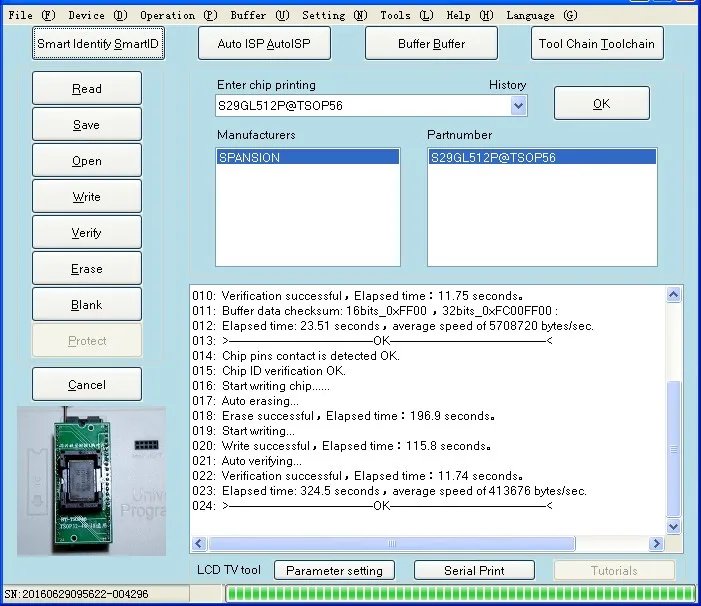

NOR WRITE Verify 512Mbits

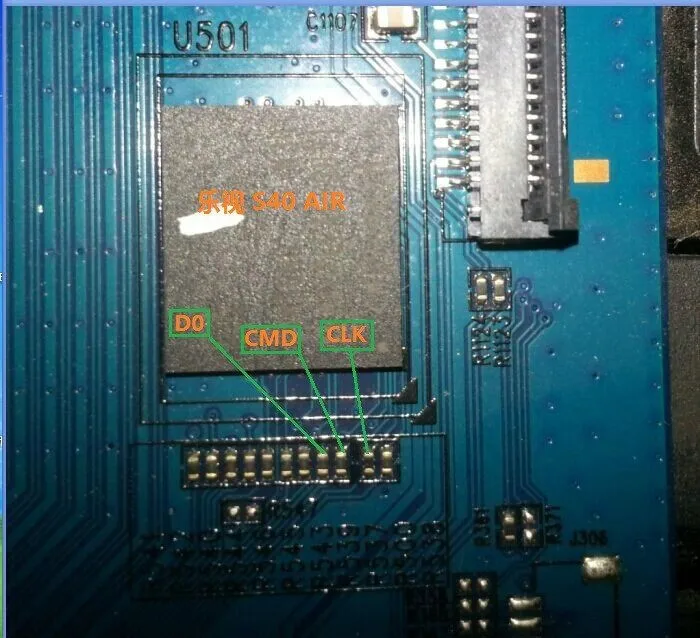

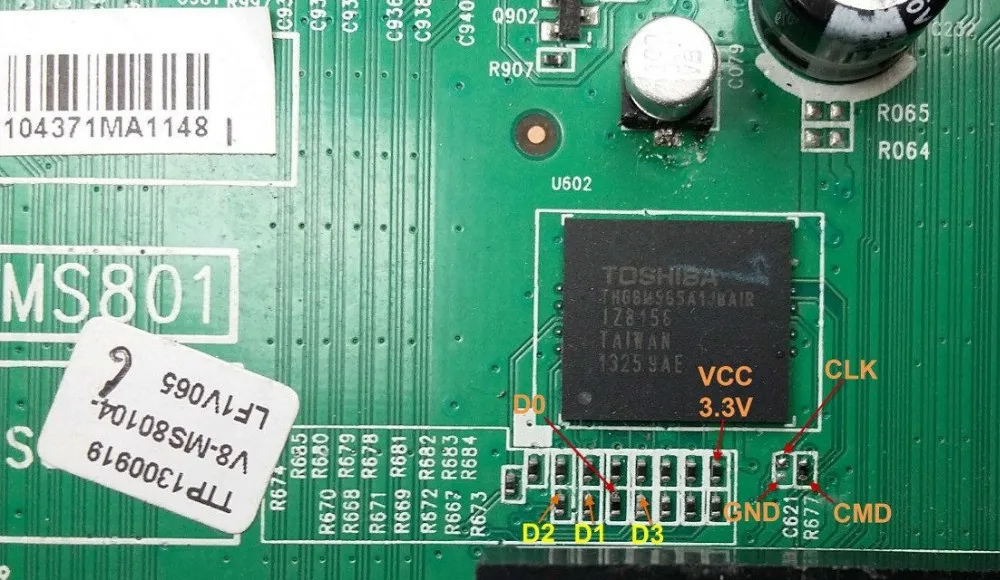

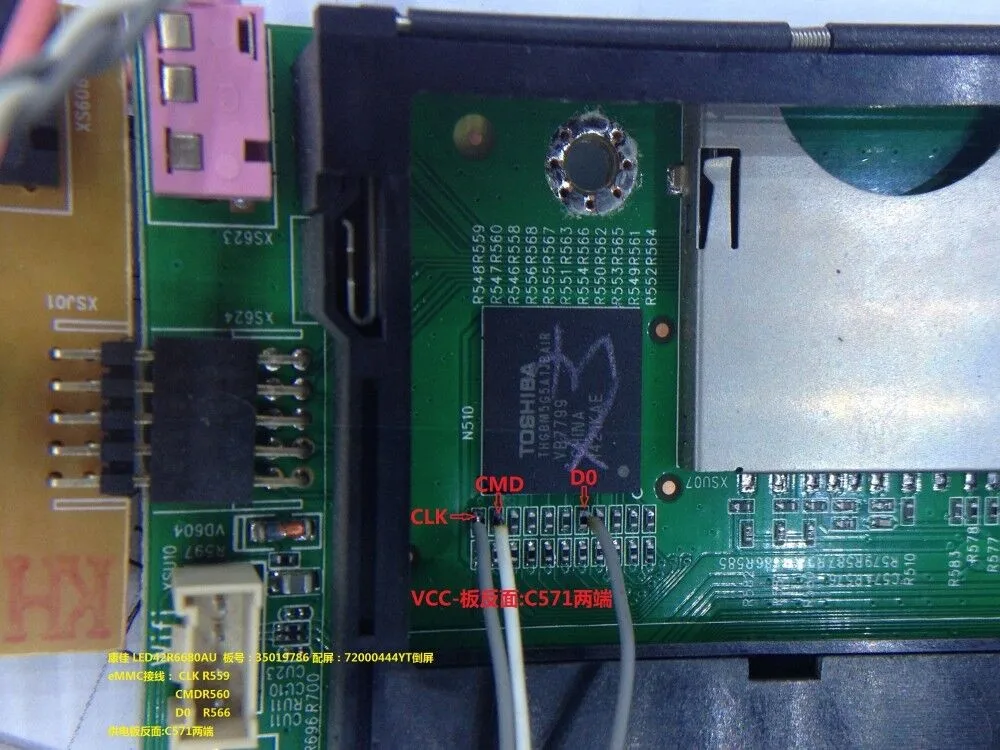

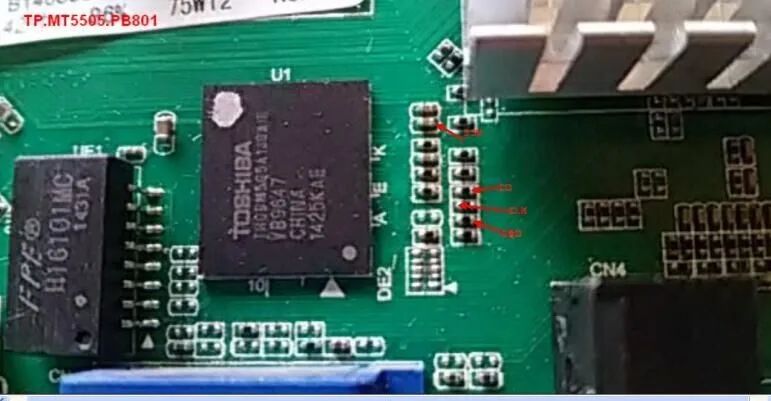

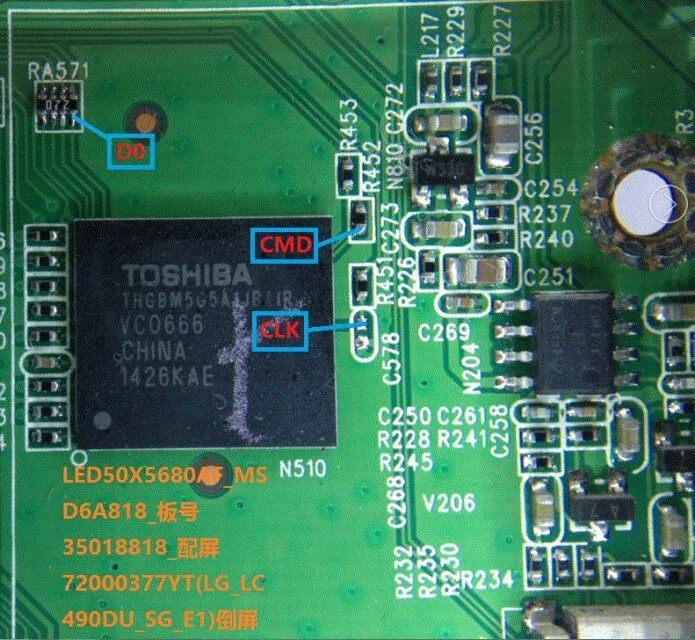

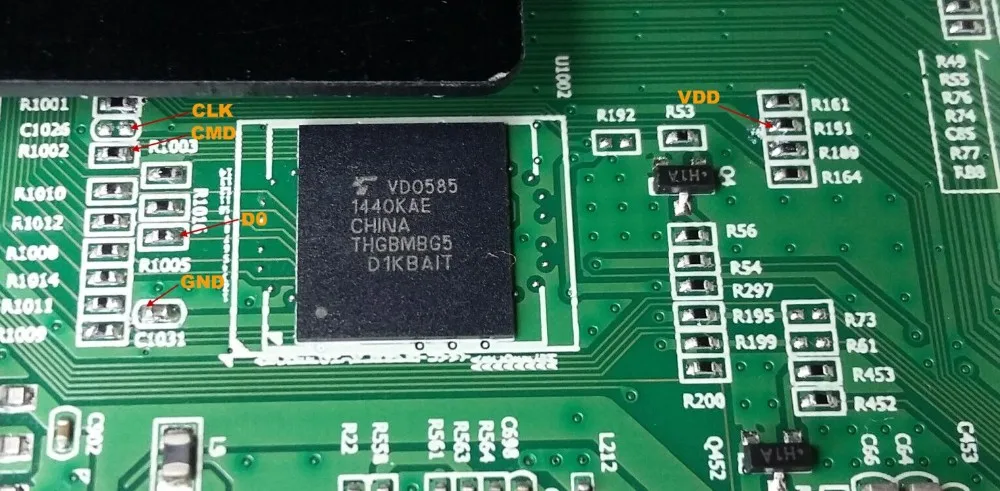

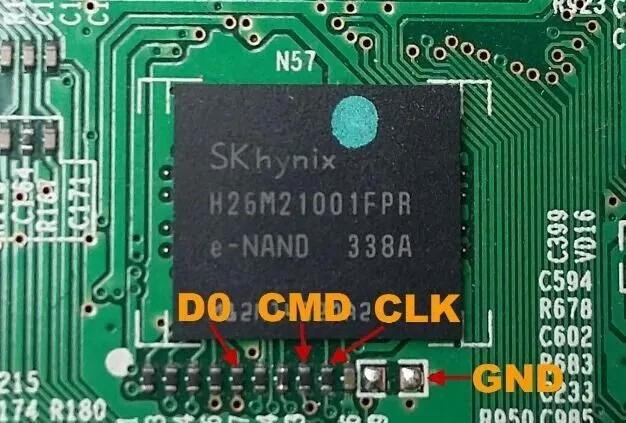

SOME WAYS TO READ AND WRITE EMMC NAND FLASH ONLINE WITHOUT REMOVING

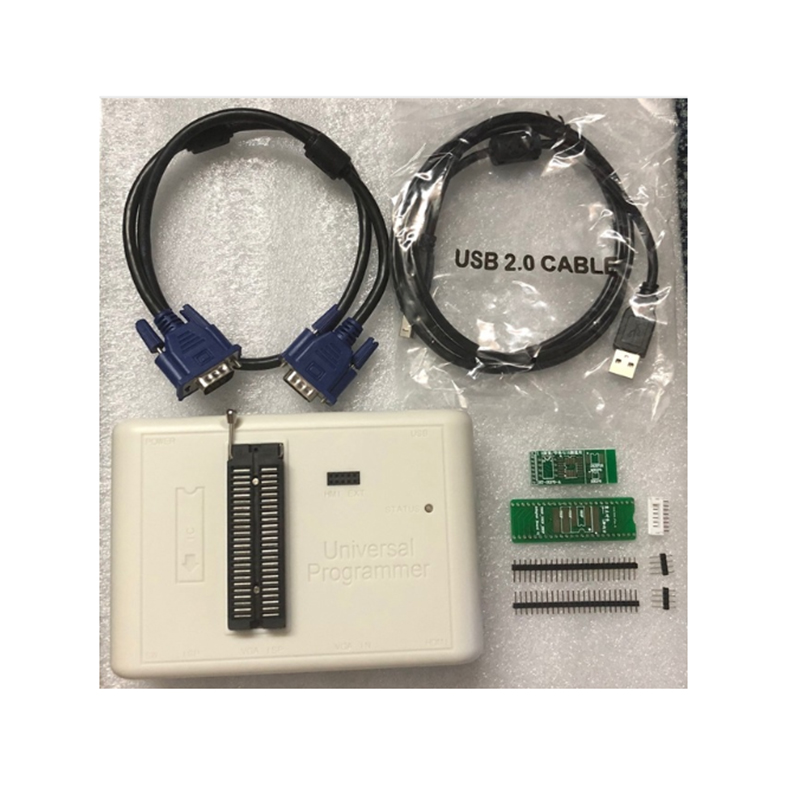

1*RT809H UNIVERSAL PROGRAMMER

1*USB Cable

1*VGA Cable

1* SOP PAST Socket

1*TSOP-VSOP-SSOP ADAPTER
