Original Autel Maxisys Ultra Automotive Full Systems Diagnostic Tool With MaxiFlash VCMI Get Free Maxisys MSOAK Multi-language

Original Autel Maxisys Ultra Automotive Full Systems Diagnostic Tool With MaxiFlash VCMI Get Free Maxisys MSOAK Multi-language

Product Code：

22791 Weight：9Kg

Categories: Diagnostic Tools

Price: $ 4099.00

Quantity：

Buy Now

ADD TO CART

Add to Wishlist

Share this：

Product Specification

Manufacturer	Autel
Update	One year free online update
Warranty	1 year
Original	Yes
Weight	9 Kg

Overview

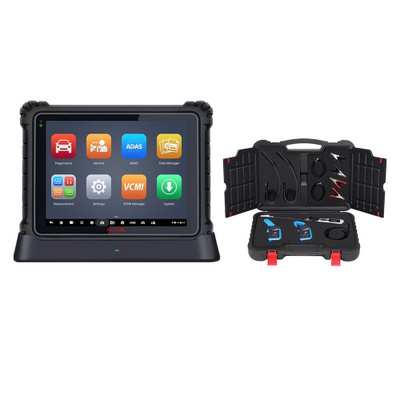

Original Autel Maxisys Ultra Automotive Full Systems Diagnostic Tool With MaxiFlash VCMI Get Free Maxisys MSOAK Multi-language

Level-up of Elite II Pro, MS908S Pro II, MS909, MS919, 2024 newest MaxiSys Ultra is Autel’s most ambitious diagnostics tablet. It features a 12.9-inch touchscreen tablet with Android 7.0 OS powered by an Octa-core processor (2.3GHz Quad + 1.7GHz Quad), substantial 256GB built-in memory, all powering the new split-screen multi-application navigation to provide efficient diagnostic and test components to confirm repairs.
Autel MaxiSys MSOAK Oscilloscope Accessory Kit Compatible with The MaxiFlash VCMI MSUltra & MP408 Support 65A/650A AC/DC Clamp HT Extension Lead Battery Clip with Carrying Case.

Autel Maxisys Ultra Full Systems Diagnostics Tool with Autel MSOAK

The Ultra allows you to pass through the blocks to access the OE ECU data package and tune the ECU module as you want. Program rewriting, ECU upgrading & downgrading, ECU module matching & replacement, etc. As for the commonly seen interface standard, D-PDU, J2534, and RP1210, the Ultra also supports. To help you have a clear picture of vehicle status, the Ultra features the TSB, DTC analysis, etc. For each fault code, Ultra performs in-depth analysis and gives the OE data and processing suggestions. The Ultra empowers you to tune the ignition time, oil injector, air intake, software-controlled driving system. Anyway, it's time to unlock the handcuffs and stop being bound with the OE settings.

Autel Ultra Highlights:

1. One Year Free Update Online on Autel Official Website
2. Support New VCI Protocols: D-PDU/ SAE J2534/ RP1210/ DoIP/ CAN FD
3. Updated Version of MK908P/ MS908P/ Elite/ MS909/ MS919; All-in-one comprehensive scanner for large repair workshops;
4. Advanced VCMI 5-In-1 Device: VCI, OSCILLOSCOPE, MULTIMETER, WAVEFORM GENERATOR, CAN BUS CHECK
5. Provide Latest OE Level Coverage for 99.99% Makes in The Market: for more than 80 US Domestic, Asian and European vehicles, including supercar
6. Multi-Language Supported: English, German, Spanish, French, Polish, Italian, Dutch, Portuguese, Swedish, Russian

Notice: Not support Benz gateway.

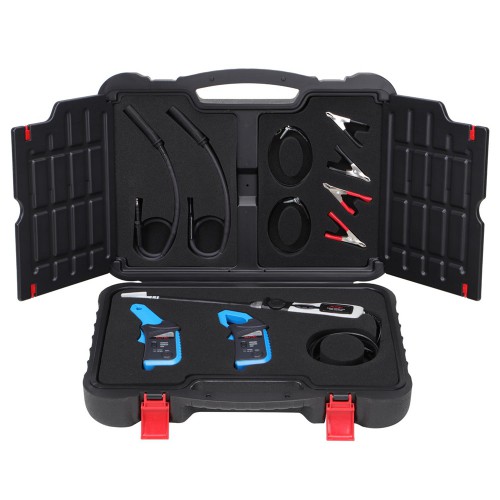

Maxisys MSOAK Features:

1. Work with the MaxiFlash VCMI Included with Autel Ultra, MS919 and MP408
2. Support 65A/650A AC/DC Clamp HT Extension Lead Battery Clip with Carrying Case
3. Includes 65A AC/DC Current Clamp, 650A AC/DC Current Clamp
4. Includes Coil On Plug Probe, HT Extension Lead (2pcs) and Battery Clip (2pcs)
5. With Blow-Molded Carrying Case

Autel MaxiSys Ultra Top Automotive Diagnostic Scan Tool Upgraded of Mk908P Elite, MS909, MS919

1) Autel MaxiSys Ultra Upgraded of MS908S Pro Elite/MS909/MS919
2) MS Ultra Diagnostics : Technical Service Bulletin, DTC Analysis, Component Measurement, and Relevant Cases
3) ECU Programming & ECU Coding: Online Programming & Coding for BMW (F & G Chassis) and Online Programming for New Chassis Of Benz
4) 5-in-1 Autel Maxi-flash VCMI : Combines the Functions of Vci, Oscilloscope, Waveform

What are the advantages of Autel Ultra?

1) Processor: 2.3GHz Quad + 1.7GHz Quad; 2)Battery: 18000mAh for 10hrs Continuous Use
2) Memory: 256GB SSD/4GB RAM; 4)OBD Interface: CAN, EOBD, OBD, OBDII
3) Protocols: KPW, CAN, CAN-FD, DoIP, etc,; 6)Screen: 12.9 Inch Touchscreen
4) Camera: 16MP REAR/5MP FRONT; 8)Connectivity: Wifi Bluetooth, MaxiFlash VCMI
5) Coverage: for 99.999% Car Makes like Ford Toyota Nissan GM BMW Benz,etc.
6) Supported System: All Systems like ABS, DPF, EPB, SAS, SRS, TPMS, IMMO
7) Accessories: Adapter Cable, Carrying Case, USB Cable, User Guide, MaxiFlash VCMI

The new Topology Module Listing CAN BUS Tree, specially designed for the OEM diagnostic tools, shows all available control units of the test vehicle in different colors, helping users get to know the numbers of systems, the scanned systems, and the scan results at a glance.

* Intuitively display the current module status (includes whether there's a DTC in a specific module, and the number of DTCs);
* Systematically show the communication structure between the modules;
* Directly display the fault code and enter the system execution function;
* Clearly view the color coded module status tree by zooming in and out;
* Compatible with BMW, Ford, Audi, Chrysler, Nissan, Honda, Toyota, Lexus, Land Rover, Jaguar, Benz, VW, etc.

Functions:

1. Advance Diagnostics, One-Stop Solution for DTCs

Advance Diagnostics provides smart shortcuts for technicians to get information directly related to the fault code, rather than that isn't relevant, helping technicians repair detected faults efficiently, making repair work 200% easier than ever.

1) One-Stop Solution

* Vehicle System and Detected DTC: displays the name of the vehicle system(s) and the detected DTC(s)
* Technical Service Bulletin (OEM Info): contains DTC-related recalls, TSB, and OEM campaigns.
* DTC Analysis: provides information related to the fault code.
* Component Measurement: provides detailed information and instructional guides on using the oscilloscope to test components for faults.
* Relevant Case: offers relevant fault-clearing cases for reference.
* Compatible with: BMW, Ford, Audi, Chrysler, Nissan, Honda, Toyota, Lexus, Land Rover, Jaguar, Mercedes-Benz, VW, etc.

2) 5-in-1 VCMI, Diagnose & Program Vehicles More Efficiently

* 5-in-1: Except working as a diagnostic tool, it also functions as a 4-channel oscilloscope, waveform generator, multimeter, and CAN BUS tester.
* More Advanced than J2534: With the 3 diagnostic protocols (D-PDU/ SAE J2534/ RP1210), Ultra can work with more OEM diagnostic tools and diagnose & program more vehicles than J2534 programming tools.

2. Advanced ECU Programming & Coding

Autel MaxiSys Ultra ECU PROGRAMMING

The need to perform programming & coding services is now more relevant in the aftermarket than ever. There are more and more instances where programming/coding is necessary, e.g., replacing a module, replacing the existing software or firmware in the ECUs, fixing software-controlled drivability issues and emission issues, etc. There are two general types of programming operations:

A. Coding--also known as Teach-in Program, or Component Adaptation, is used to reprogram adaptive data for vehicle control modules after repairs or replacements of vehicle parts.
B. Programming --downloads the latest version of software from the online server database through Internet access (this procedure is done automatically when the tablet is connected to the Internet, so there is no need to check for software updates yourself), and reprograms the newest version into the vehicle's ECU.

Autel top scanner MaxiSys Ultra with VCMI can help you solve all above issues. With D-PDU, SAE J2534 & RP1210 protocols, Auto scan tool Maxisys Ultra provides diagnosing, coding, and programming for more passenger and commercial vehicles, much more advanced than J2534 programming tools.

* Online ECU programming & coding without any special connectors for BMW (F & G chassis);
* Online ECU programming for new chassis of Benz (204, 212, 207, 463, etc.); Online SCN for Benz (222, 212, 204, 205, etc.);
* Online ECU coding for Volkswagen, Audi, Porsche, Renault, etc.
* ECU programming & coding for GM, Ford, Chrysler, Volvo, Land Rover, Jaguar, etc.
* The VCMI module also supports various common vehicle buses protocols, for instance: KPW, CAN, CAN-FD, DoIP, etc. Speaking of the CAN-FD, its transmission speed is 14 times faster than CAN.

3. Maintenance Functions Greatly Improve Work Efficiency

Autel MaxiSys Ultra MAINTENANCE FUNCTIONS

Autel MaxiSys Ultra MAINTENANCE FUNCTIONS

1) 26 Commonly Used Reset Functions for Fast Maintenance or Repairs:
Oil Reset, EPB, BMS, ABS Bleed, TPMS, Airbag Reset, DPF Reg., IMMO Service, Injector Coding, SAS Calibration, Suspension Calibration, Throttle Adaption, ABS/SRS, Gear Learning, Sunroof Initialization, Seats Calibration, Language Change, Headlight Matching, A/F Setting, WIN DR Roof, Odometer, CHG Tire Size, Cylinder, Turbocharging, Limit, Trans Adaption.

2) 10+ Advanced Functions for Different Vehicle Models:
Neutral Gear Position Learning, Torque Sensor Adjustment, Signal Check, Yaw Rate Sensor (YRS) Learn, Clutch Pedal Position Learn, Cylinder Power Balance, Component Matching, Stop/Start Reset, Transport Mode, Auto-Door Lock, etc.

* Oil Reset, to reset the oil service lamp for the engine oil life system; EPB Reset, to reset the brake pad after replacing the brake pad.
* ABS Bleeding, to perform various bi-directional tests of Anti-lock Braking System;
* Injector Coding, to write the new code to the ECU after replacement of injector.
* Suspension Calibration, to adjust the height of the body; SAS Calibration, to calibrate the steering angle after replacement.
* Anti-theft Matching, to disable the lost key and add the new key’s data for security.
* BMS Reset, to perform a resetting operation on the monitoring unit of the vehicle battery.
* Tire Pressure Reset, to look up the tire sensor IDs, reset tire pressure, and turn off the tire pressure MIL.
* DPF Reset, to retrieve/erase DPF-related codes, and reset the DPF light.
* Throttle Matching, to make initial settings to throttle actuators.
* Gearbox Matching, to achieve a more comfortable and ideal shift quality.
* WIN DR ROOF, Seats, Odometer, Lang Change, Headlamp, CHG Tire Size, TEC Learn, Cylinder, Trans Adaption, Airbag Reset, etc., and are still growing

4. Highly Advanced Features

* Bi-Directional Control (Active Test)
Accurately figure out whether a specific system, component, or a subsystem in vehicles goes well and locate the problem by interactively operating and testing the vehicle’s related actuators; Compatible with most vehicle models on the market.

* Modifications
To improve car performance and enhance your experience as a driver or owner, you can change or add the functions by changing or adding certain modules that haven’t already in your vehicle, such as adding a satellite navigation system, courtesy lamps, car phone, parking sensors, atmosphere lights, etc.；Compatible with Volkswagen, Audi, BMW, etc.

* Guided Functions
Come with the on-screen instructions to guide you on how to complete some complicated functions step by step; Compatible with Volkswagen, Audi, Skoda, Seat, etc.

* Personalization
Customize your car as you want. Help you make full use of the hidden functions and disable the annoying features; Available for BMW, Porsche, Toyota, Nissan, Peugeot, Citroen, Fiat, etc.

Specification:

Operating System	Android 7.0
Processor	Samsung Exynos8895V octa-core Processor (2.3GHz Quad-core Mongoose + 1.7GHz Quad-core A53)
Memory	4GB RAM & 256GB On-board Memory
Display	12.9 inch TFT-LCD with 2732 x 2048 resolution & capacitive touch screen
Connectivity	* WiFix2 (802.11 a/b/g/n/ac 2x2 MIMO) * BT v.2.1 + EDR * GPS * USB 2.0 (Two USB HOST Type A, one USB mini device) * HDMI 2.0 * SD Card (Support up to 256GB)
Camera	* Rear: 16 Megapixel, Autofocus with Flashlight * Front: 5 Megapixel
Sensors	Gravity Accelerometer, Ambient Light Sensor (ALS)
Audio Input/Output	* Microphone * Dual Speakers * 3-Band 3.5 mm stereo/standard headset jack
Power and Battery	* 18000mAh 3.8 V lithium-polymer battery * Charging via 12 V AC/DC power supply with the temperature between 0°C and 45°C
Input Voltage	12V/3A Adapter
Operating Temp.	0 to 50°C (32 to 122°F)
Storage Temperature	-20 to 60°C (-4 to 140°F)
Protocols	DoIP, PLC J2497, ISO-15765, SAE-J1939, ISO-14229 UDS, SAE-J2411 Single Wire Can (GMLAN), ISO-11898-2, ISO-11898-3, SAE-J2819 (TP20), TP16, ISO-9141, ISO-14230, SAE-J2610 (Chrysler SCI), UART Echo Byte, SAE-J2809 (Honda Diag-H), SAE-J2740 (GM ALDL), SAE-J1567 (CCD BUS), Ford UBP, Nissan DDL UART with Clock, BMW DS2, BMW DS1, SAE J2819 (VAG KW81), KW82, SAE J1708, SAE-J1850 PWM (Ford SCP), SAE-J1850 VPW (GM Class2)

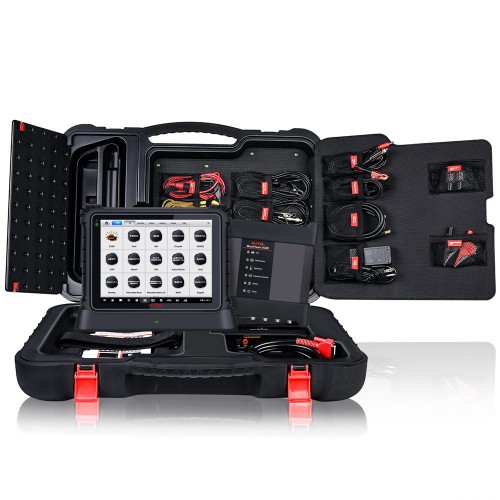

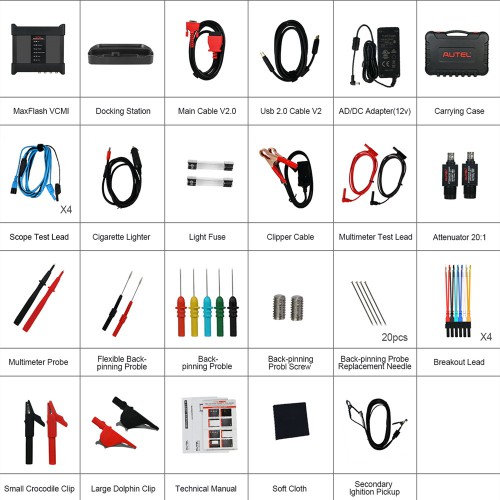

Package List:

1pc x Main Unit
1pc x MaxiFlash VCMI
1pc x Main Cable V2.0
1pc x USB 2.0 Cable V2
1pc x AC/DC Adapter(12V)
1pc x Cigarette Lighter
2pcs x Light Fuse 6x30mm
1pc x Clipper Cable
4pcs x Scope Test Lead
2pcs x Multimeter Test Lead
2pcs x Secondary Ignition Pickup
2pcs x Attenuator 20:1
1set x Breakout Lead 4x6 PCS
2pcs x Multimeter Probe
1set x Flexible Back-pinning Probe 2x2 PCS
1set x Back-pinning Probe - Red/Green/Blue/Yellow/Black 1x5 PCS
2pcs x Back-pinning Probe Screw
20pcs x Back-pinning Probe Replacement Needle
1set x Small Crocodile Clip 2x2 PCS
1set x Large Dolphin Clip 1x2 PCS
1pc x Quick Reference Guide
1pc x Packing List
1pc x Soft Cloth
1pc x Tool Box
1pc x Carrying Case
1set x Autel Maxisys MSOAK
