OBDSTAR MS50 Intelligent Motorcycle Diagnostic Tool

OBDSTAR MS50 Intelligent Motorcycle Diagnostic Tool

Product Code：

20132 Weight：4.128Kg

Categories: Diagnostic Tools

Price: $ 475.00

Quantity：

Buy Now

ADD TO CART

Add to Wishlist

Share this：

Product Specification

Manufacturer	OBDStar
Update	One year free online update
Warranty	1 year
Original	Yes
Weight	4.128 Kg

Overview

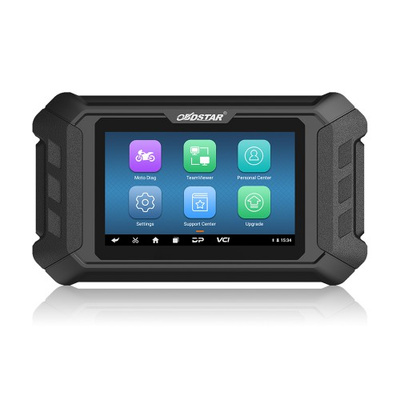

OBDSTAR MS50 Intelligent Motorcycle Diagnostic Tool

OBDSTAR MS50 Intelligent Motorcycle Diagnostic Tool

OBDSTAR MS50 is a portable tablet which has super performance and industrial appearance design. It is a new generation of intelligent motorcycle diagnostic equipment tailored for customers. Based on RK3128 Quad-Core processor and equipped with a 5.0-inch capacitive touch screen, brings customer professional diagnosis experience;

OBDSTAR MS50 Features:

1. New Android 5.1.1 operation system
2. Simple and intuitive menu guidance allows you to quickly master the equipment operation;
3. Provide complete diagnostic functions including code reading, code clearing, data flow, action test, setting, coding, etc.;
4. Menu Arbitrary selection is more convenient and quick;
5. Record and play back real-time data streams, quickly and accurately locate sensor and component faults;
6. Wi-Fi connection to the Internet, one-click software upgrade;
7. One-Click remote function, OBDSTAR technical staff remote assistance;
8. Support most of the Asia and Europe models;

OBDSTAR MS50 Advanced Function:

1. The first fault guidance, Help data, technical bulletin, diag socket, etc. help you diagnose accurately and efficiently;

2. Diversified data stream display modes such as text, waveform diagram and instrument diagram, allowing you to easily analyze faults;

3. Automatic scanning, automatic VIN recognition, control module programming and coding, ECU setting, instrument coding, tire pressure monitoring system, maintenance light reset, CO adjustment, idle speed adjustment, A/F value reset, ABS control unit setting , EOL mode, transmission memory reset, clear computer memory, etc.

Motorcycle/Snowmobile/ATV/UTV Support Car Series:

Asia:
Honda、Kawasaki、Kymco、Suzuki、SYM、Yamaha、PGO、Hardford、AEON；

Europe:
Benelli、KTM、Piaggio、Vespa

More functions under developing...
Different configurations include different software. For details, please contact OBDSTAR.

Function Display:

1) Main Page/Brand Supported

2) Help Data/Technical Bulletin/Fault Guidance

3）Supported System List/ Manual Service Function

4) Manual maintenance reset

5) Diag socket/Diag Connector Location

6) Data Flow Text/ Waveform Diagram/Instrument Diagram

7)Special Function-Benelli

8) Special Function-KTM

9) Special Function-Piaggio

10) Special Function-Vespa

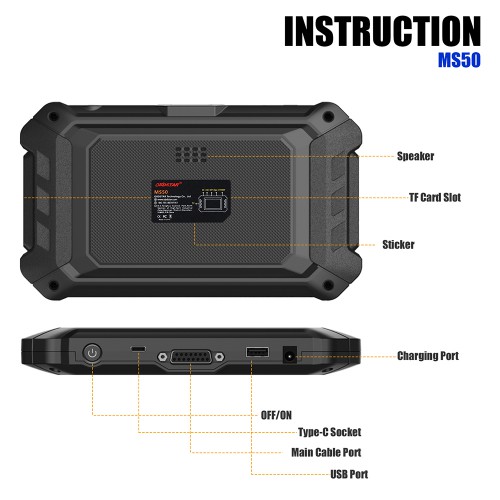

Product Parameters

Operation System: Android 5.1.1
CPU: Exynos4418 Dual Core ARM Cortex A9
Battery: 2500mA, rechargeable polymer lithium battery
Extension memory card: 32G Micro SD (TF) card supported
Storage capacity: 16GB
LCD：5.0 inch
LCD resolution: 800*600
Touch screen: capacitive touch screen
Wifi: supported
Camera: 5 mega rear view camera
Working temperature: -20℃～55℃（14℉～131℉）
Storage temperature: -20℃～70℃（-4℉～158℉）
Weight: 700g（Main Unit)
Dimension: 140mm*89mm*18mm

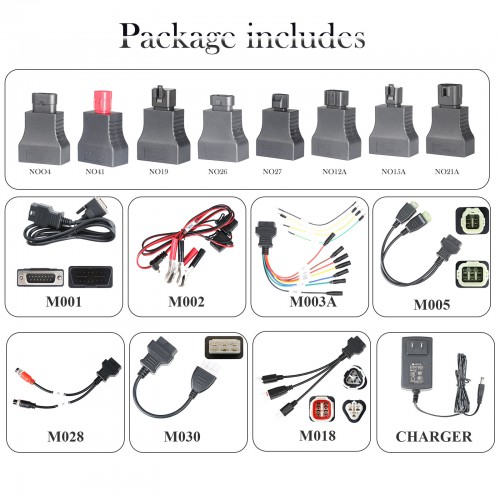

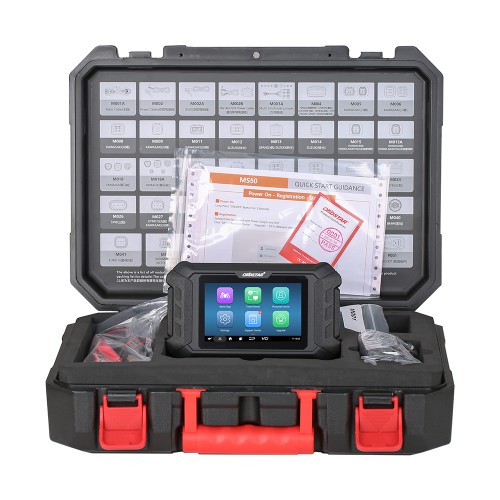

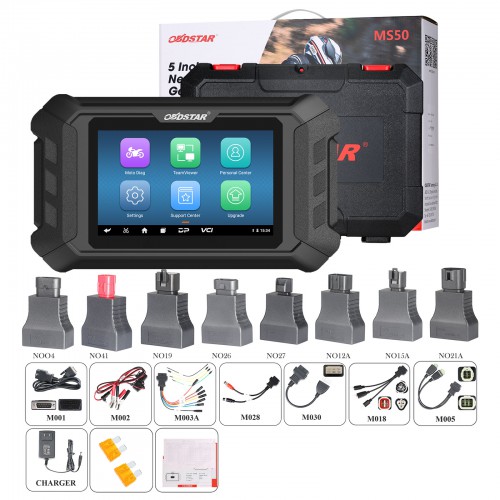

Package includes:

1pc x M001 Main Cable
1pc x M002 Power Cable
1pc x M003A Multi functional jumper
1pc x M004 APRILIA/DUCATI/HONDA/KTM/PIAGGIO/VESPA/YAMAHA
1pc x M005 KAWASAKI
1pc x M012 SUZUKI
1pc x M015A HONDA/HONDA MONTESA
1pc x M018 YAMAHA
1pc x M019 KTM
1pc x M021 AEON/BENELLI/BENELLI DSK
1pc x M026 SYM
1pc x M027 KYMCO/KAWASAKI
1pc x M028 PGO
1pc x M030 HARTFORD
1pc x M041 EURO V
1pc x 12V2A CHARGER
