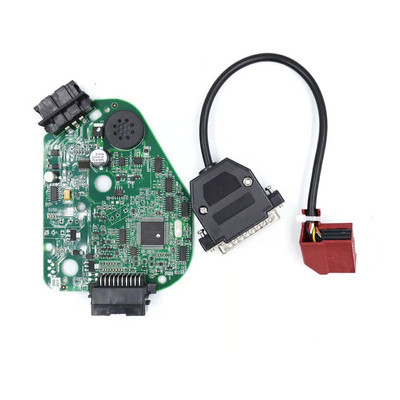

Column lock N360 simulator is suitable for Bentley Phaeton for Audi A8 for VW Touareg for Porsche Cayenne. It is more stable to cancel the vulnerable motor relay. You only need to lead the original car’s CPU to the new board without matching (because the bolt will not be fixed after the motor is cancelled. Prevent running and lock the room pipe, so there is a black cylinder inside and put it in the lock tongue)

for VW Phaeton 2005-2012 year、for Bentley 2005-2016 year

1. Supporting Models:

 04-10 Touareg, A8, Porsche

05-12 Phaeton

05-15 Bentley

2. Chip transplantation:

Transplant the original car chip, and use the equipment to clear the fault code after the transplant is installed. Pay attention to the chip orientation when transplanting.

（Pay attention to the CPU orientation）

3. Installation of the cylinder，  Put the cylinder in and fix it

4, matters needing to pay attention

After installation, there are three ways to deal with it:

1. Just power it on and it will be fine. (this is relatively rare)

2. After the power is turned on, the fault code 288 will be reported. In this case, the fault codeshould be cleared continuously for more than 20 times, and it may be good after clearing. (Because the fault information of the damaged module of the originalcar has been stored in the MCU, the CPU will have a temporary protection)

3. If the above two methods do not work, you need to install the simulator, remove the key, donot turn on the light, wait for 20-30 minutes and then insert the key.
