Lonsdor KPROG2 Adapter for K518 PRO/ K518 FCV Key Programmer Read/Write EEPROM Soic Chip/MCU Chip

Lonsdor KPROG2 Adapter for K518 PRO/ K518 FCV Key Programmer Read/Write EEPROM Soic Chip/MCU Chip

Product Code：

22443 Weight：0.4Kg

Categories: Additional Adapters

Price: $ 169.00

Quantity：

Buy Now

ADD TO CART

Add to Wishlist

Share this：

Product Specification

Manufacturer	Lonsdor
Weight	0.4 Kg

Overview

Lonsdor KPROG2 Adapter for K518 PRO/ K518 FCV Key Programmer Read/Write EEPROM Soic Chip/MCU Chip

Lonsdor KPROG2 KPROG2 Adapter for K518 PRO/ K518 FCV Key Programmer,to read and write an eeprom soic chip/mcu chip. You can get it for backup or replacement. eeprom .

Lonsdor KPROG2 KPROG2 Adapter for K518 PRO/ K518 FCV Key Programmer

KPROG: Support programming MCU and EEPROM on ECU circuit board.

KPROG adapter must be bound to K518 before using :

Step 1. Connect adapter to K518 with mainline
Step 2. Connect K518 with 12V power supply
Step 3. Enter into “Setting”
Step 4. Click “Bind adapter”
Step 5. Click “OK” to complete

Lonsdor KPROG-2 Adapter Read & Write EEPROM Chip List

24 series Support ATMEL & ST chip

AT24C01 128 byte

AT24C02 256 byte

AT24C04 512 byte

AT24C08 1K

AT24C16 2K

AT24C32 4K

AT24C64 8K

AT24C128 16K

AT24C256 32K

93 series; Support ATMEL & ST chip

AT93C46-8bit 128 byte read/write

AT93C56-8bit 256 byte read/write

AT93C57-8bit 256 byte read/write

AT93C66-8bit 512 byte read/write

AT93C76-8bit 1024 byte read/write

AT93C86-8bit 2048 byte read/write

AT93C46-16bit 128 byte read/write

AT93C56-16bit 256 byte read/write

AT93C57-16bit 256 byte read/write

AT93C66-16bit 512 byte read/write

AT93C76-16bit 1024 byte read/write

AT93C86-16bit 2048 byte read/write

25 series; Support ATMEL chip

AT25010 128 byte

AT25020 256 byte

AT25040 512 byte

AT25080 1K

AT25160 2K

AT25320 4K

AT25640 8K

AT25128 16K

AT25256 32K

AT25M01 1M

AT25M02 2M

95 series; Support ST chip

95010 128 byte

95020 256 byte

95040 512 byte

95080 1K

95160 2K

95320 4K

95640 8K

95128 16K

95256 32K

95M01 1M

95M02 2M

It is only assigned to one K518 programmer.

KPROG - 2

Make	Menu	Application
EEPROM	EEPROM/COMMON/24CXXX	Read data, Write data,
	EEPROM/COMMON/93CXXX	Read data, Write data,
	EEPROM/COMMON/25XXX/95XXX	Read data, Write data,
Hex editor	Hex editor/Hex editor	Hex editor,
ADP TOOLS	ADP TOOLS/CPLD program upgrade	Adaptor LC4256V upgrade, Dashboard clock LC4256V upgrade, Adaptor EPM240 upgrade,
MCU	MCU/Freescale/9S12G	MC9S12G(N)16, MC9S12G(N)32, MC9S12G(A)48, MC9S12G(A)64, MC9S12G(A)96, MC9S12G(A)128, MC9S12G(A)192,
	MCU/Renesas/R32C/M16C/UART	Read FLASH, Read DATAFLASH, Read E2_FLASH, Write FLASH, Write DATAFLASH, Write E2_FLASH,
	MCU/Renesas/R32C/M16C/SPI	Read FLASH, Read E2FLASH, Write FLASH, Write E2FLASH, Read DATAFLASH, Write DATAFLASH,

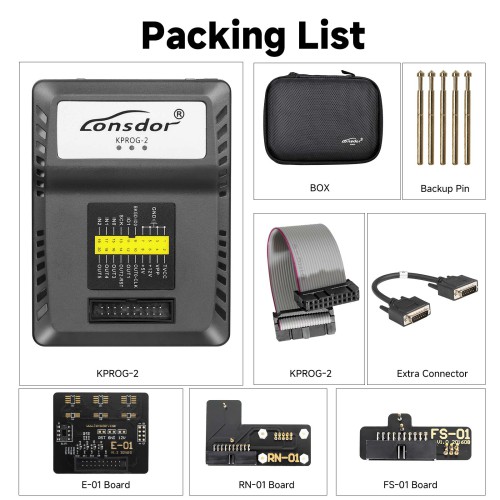

Packing List:

1pc x KPROG2 Adapter

Notice
