GODIAG VAG Test Platforms GT112 K-Line with GT111 CAN-Bus and GT110 CAN-Bus UDS With Pogo Pin For VAG 2nd/3rd/3.5th/4th Generation Dashboard IMMO

GODIAG VAG Test Platforms GT112 K-Line with GT111 CAN-Bus and GT110 CAN-Bus UDS With Pogo Pin For VAG 2nd/3rd/3.5th/4th Generation Dashboard IMMO

Product Code：

22444 Weight：1Kg

Categories: Testing Cables

Price: $ 99.00

Quantity：

Buy Now

ADD TO CART

Add to Wishlist

Share this：

Product Specification

Manufacturer	GoDiag
Weight	1 Kg

Overview

GODIAG VAG Test Platforms GT112 K-Line with GT111 CAN-Bus and GT110 CAN-Bus UDS With Pogo Pin For VAG 2nd/3rd/3.5th/4th Generation Dashboard IMMO

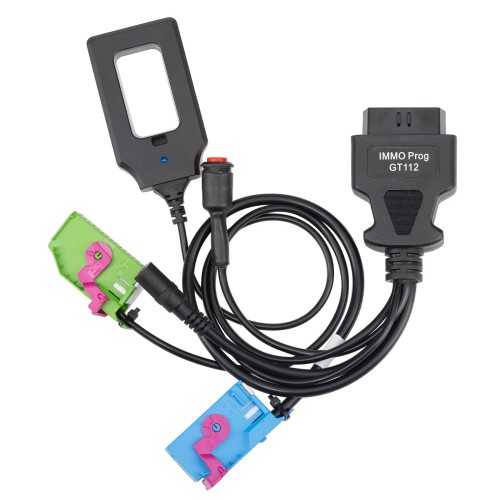

GODIAG GT112 K-Line FOR VW Audi Skoda Seat 2nd & 3rd Generation Dashboard IMMO Key Matching Test Platform Cable

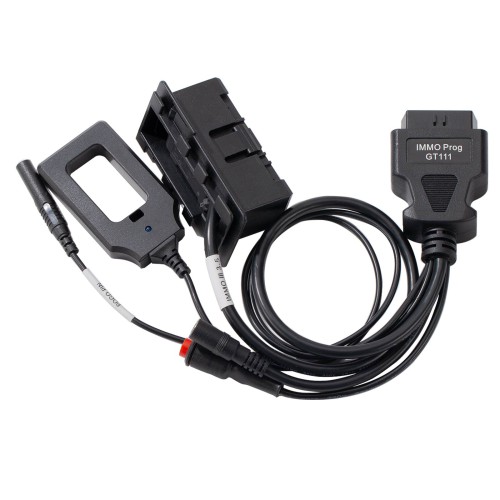

GODIAG GT111 FOR VW Audi Skoda Seat CAN-Bus 3rd & 3.5th Generation Dashboard IMMO Key Matching Test Platform Cable with POGO PIN to Read & Write Data

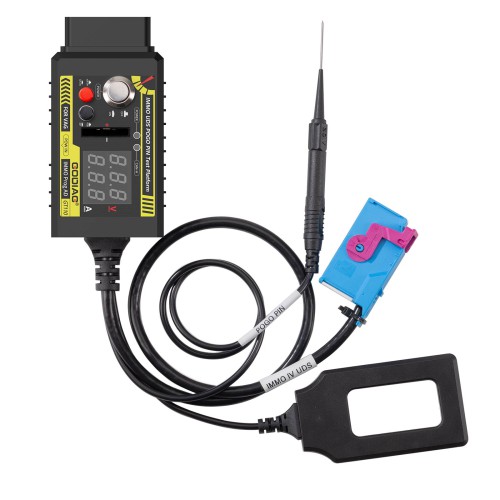

GODIAG GT110 FOR VW Audi Skoda Seat CAN-Bus UDS 4th Generation IMMO System Test Platform Cable with POGO PIN to Read & Write POGO PIN Data

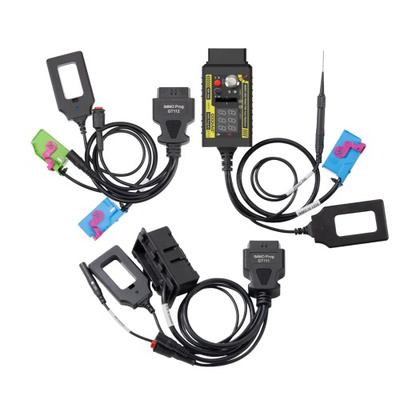

GODIAG Test Platform Cables GT112 K-Line with GT111 CAN-Bus and GT110 CAN-Bus UDS With Pogo Pin For VAG 2nd/3rd/3.5th/4th Generation Dashboard IMMO

GODIAG Bundle Package:

GODIAG GT112 K-Line for VW Audi Skoda Seat 2nd & 3rd generation dashboard IMMO key matching test platform cable performs offline key and IMMO instrument synchronization test, intelligent IMMO system emergency start area sensing detection, IMMO dashboard offline diagnosis, instrument IMMO data reading and writing, instrument mileage repair, key matching... It supports VW Audi Skoda Seat and other models.

GODIAG GT111 for VW Audi Skoda Seat CAN-Bus 3rd & 3.5th generation dashboard IMMO key matching test platform cable with POGO PIN supports VW, Audi, Skoda, Seat and other models, using POGO PIN for offline data reading and writing. The product supports synchronization testing of keys and IMMO instruments, intelligent IMMO system emergency start area sensing detection, IMMO combination instrument offline diagnosis, instrument IMMO data reading and writing, instrument mileage repair, key matching and other functions.

GODIAG GT110 FOR VW Audi Skoda Seat CAN-Bus UDS 4th Generation IMMO System Test Platform Cable supports VW Audi Skoda Seat and other models, and performs offline POGO PIN data reading and writing. lt is for dashboards key programming (including Boot Probe).of all UDS systems of Volkswagen, Skoda and Seat. The product can display the current working voltage and current, has a power switch, the simulation ignition switch, and a buzzer to prompt the ignition start and shut down. It supports CANH UDS communication indication, CR2032 remote key battery detection, key and IMMO instrument synchronization test, intelligent IMMO system emergency start area induction detection, IMMO combination instrument offline diagnosis, instrument IMMO data reading and writing, instrument mileage repair, key matching and other functions.

It can be used with devices like HEX V2, VAGCOM VCDS 5053, VAS5054A, VAS6154, SUPER VAG K+CAN, Obdstar, Lonsdor, AVDI, ZEDFULL, VVDI2, Key Tool Plus, X300 DP Plus, Lonsdor, SUPER VAG, AUTEL, etc.

GODIAG Test Platform Features:

1. Use POGO PIN to read and write data to the dashboard.
2. Offline connection to the dashboard to convert to standard OBD2.
3. Perform key chip and instrument synchronization test.
4. Independent power switch
5. Simulate ignition switch
6. Current working voltage display
7. CR2032 remote key battery detection
8. Current instrument working current display
9. CANH UDS communication indicator light
10. Key induction adapter with light
11. The pogo PIN is more stable to hold and it does not damage the cable.

Intelligent IMMO System Emergency Start Area Induction Detection

Press the vehicle's start switch and bring the device's key identifier close to a certain area. If the key identifier light flashes or lights up, it means that the area is the vehicle's key emergency start sensing area. If the customer's smart key is out of power, just put the dead smart key in the key emergency start sensing area to start the vehicle.

Car IMMO Start and Start Key Chip Detection

Test Result Analysis:

1. The light of the key identifier flashes and then goes out, indicating that the IMMO chip and the chip key are working properly.
2. The light of the key identifier flashes for a long time, indicating that the chip key and the vehicle's IMMO system do not match, and the chip key needs to be re-matched.
3. The light of the key identifier does not flash, which means that the vehicle's IMMO system is faulty. Please check the vehicle's IMMO system.

Package List:

1pc x GODIAG GT112 Test Platform Cable
1pc x GODIAG GT111 Test Platform Cable with POGO PIN
1pc x GODIAG GT110 Test Platform Cable with POGO PIN
