Description
Automotive Programming Dedicated Power Output Characteristics
DC voltage: 14.2V
Rated current: 120A
Rated power: 1700W
Ripple and noise: 100mVp-p

Automotive Programming Dedicated Power Input Characteristics
Rated input voltage: 220V (+/-20%)
Frequency range: 40-60HZ
Power factor: 0.95
Efficiency: 85%

Automotive Programming Dedicated Power Protection Features
Overload: 90-110% of rated output power
Over-voltage: 15V
Operating temperature: -40 - +70 C

Safety: UL60950, TUV EN60950-1
Withstand Voltage: I/P-O/P:3KVAC I/P-FG:1.5KVAC
Insulation resistance: I/P-O/P, I/P-FG:100M Ohms, 500VDC/25 /70%RH
EMC: EN55022, EN61000

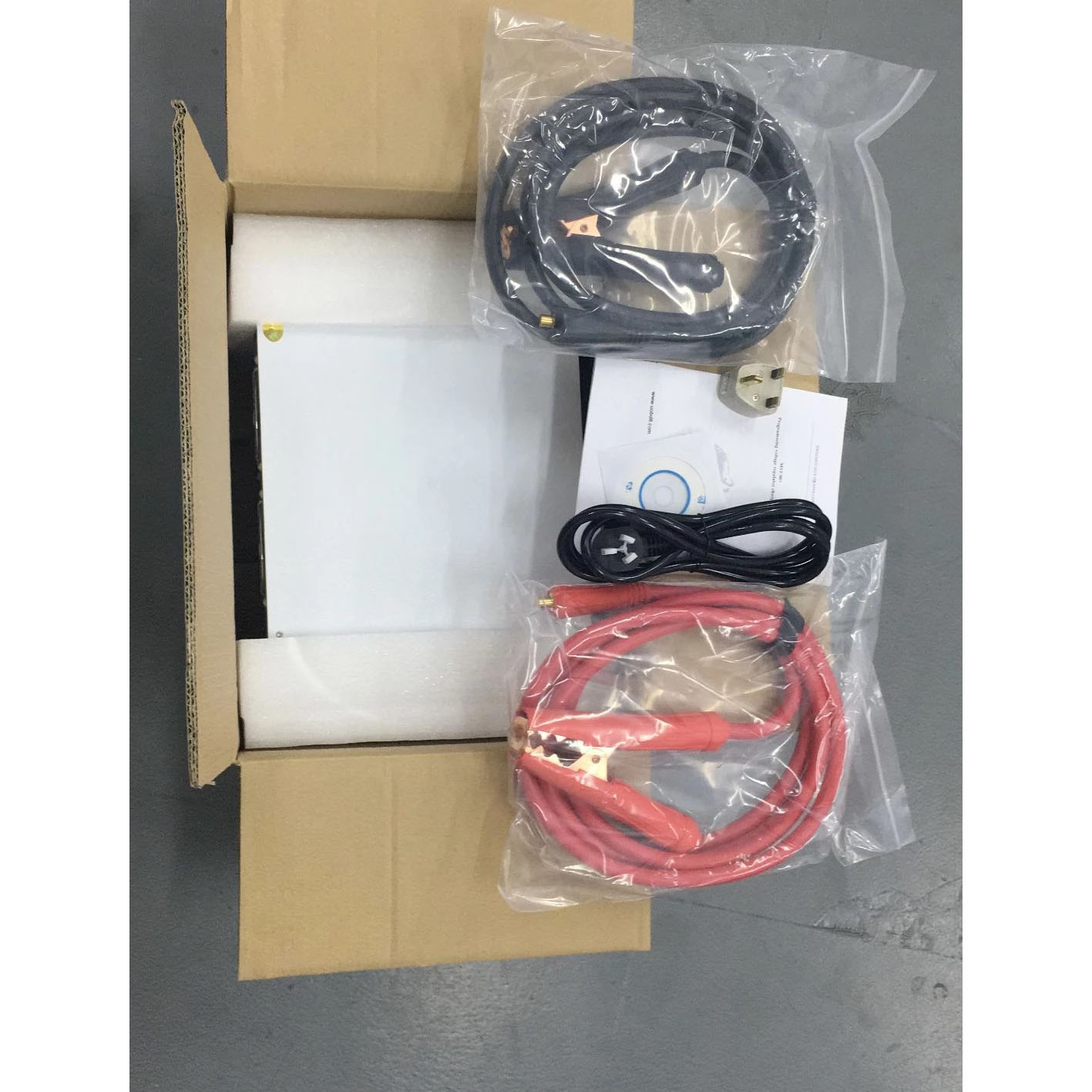

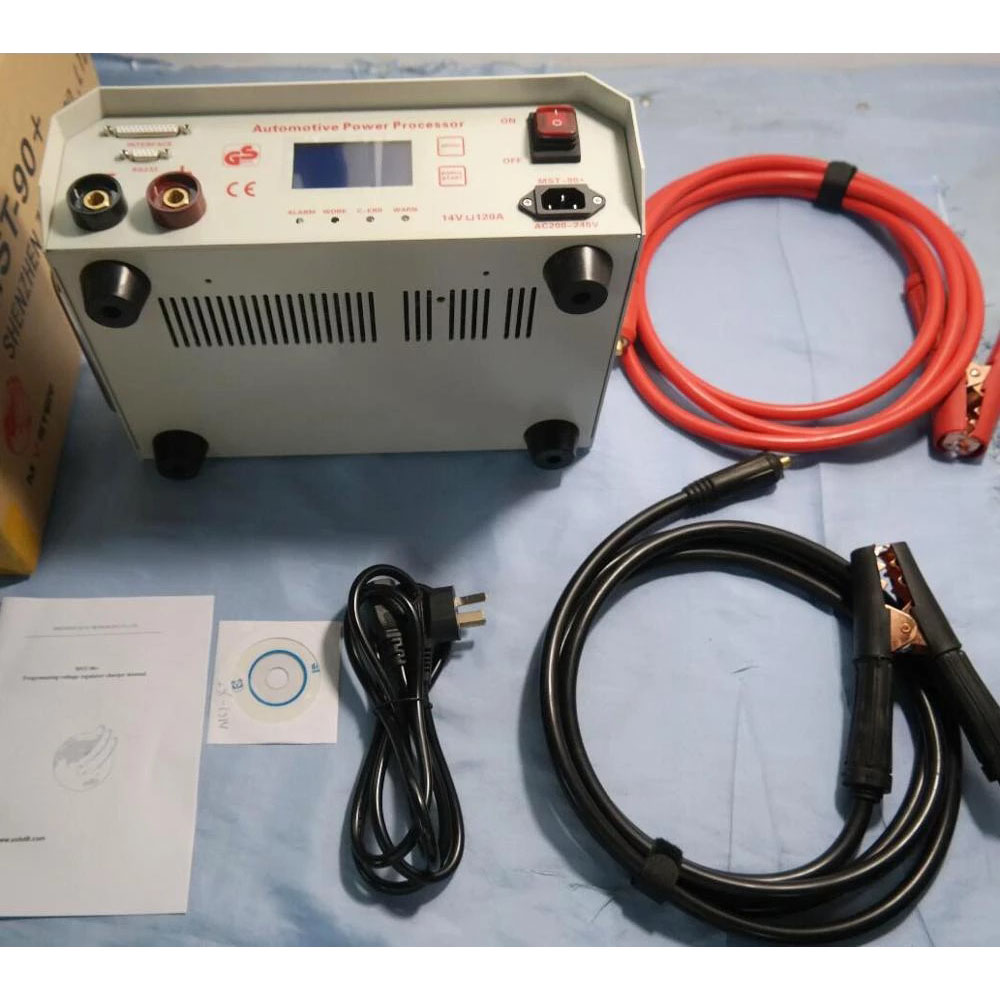

Accessories details
1, charger host 1 set
2, red clip line 1 piece
3, black clip line 1 piece
4, power input line 1 piece

Note : please don’t start the engine during the process of power charging to the vehicle to avoid damage to the device caused byadverse charging
This charger is only suitable for 12V lead-acid battery charging

2:When the battery is charging over or when the charger output current is lower than 3A or,it will display BATT FULL/DISAB..When
the current is restored to 3.5A,the BATT FULL/DISAB prompt disappears.
3：When the charging current is over 100A or the output voltage of the device is higher than 15V,the device will automatically disconnect the DC output and at the same time illuminate the ALARM while the WARN indicator flashes,accompanied by drops of alarm sound.The display shows"Temper High"or"Current High". When the current or voltage back to the normal range,click the FORCF START button,will stop drip alarm.
4：When the internal temperature of the device is higher than 76℃,then “WARN” will start and sounds an alarm. When the temperature is over 80 ℃, the "Temper High" will be displayed, and the output will be disconnected
5：When the input of the equipment is over current or over voltage,it will burn out the inner tube. Please check the input current& voltage and then use.
6.When the charger is turned on, the fan 1 is located at the back end of the machine,and the fan 2 can start at the same
time.Ensure that the charger does not stop working and damage due to overheating.

Note:
1: Please use 10A or above of the power supply socket connected to the equipment. Please abide by the general rules of the safe use of electricity. A power supply socket with a ground wire must be used.
2:Verify that the connection between the positive and negative poles is correct when connecting the clip cable to the battery or vehicle.
3: After charging the wire into the connector, please tighten the right and ensure that the connection is reliable and then turn on the power switch.
4: The machine has high pressure, non professionals do not operate, so as not to shock.
5:This charger is only suitable for 12V lead-acid battery charging.
