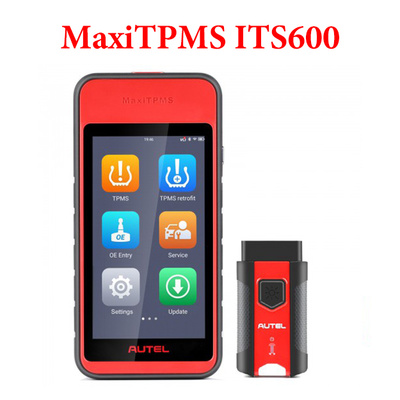

AUTEL MaxiTPMS ITS600 TPMS Relearn Tool Support Sensor Relearn/ Activation/ Programming
Autel MaxiTPMS ITS600 is a wireless, touchscreen Android tablet that performs all TPMS diagnostics and service functions on TPMS-equipped vehicles (US, Asian and European). It can activate, read and relearn all known sensors, and perform four common maintenance services (OLS/ BMS/ SAS/ EPB)
AUTEL MaxiTPMS ITS600 TPMS Relearn Tool Support Sensor Relearn/ Activation/ Programming

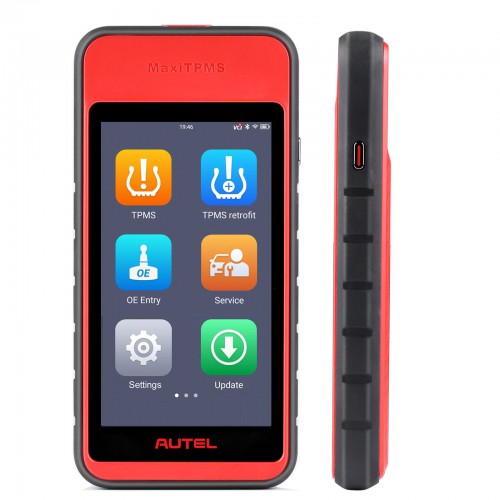

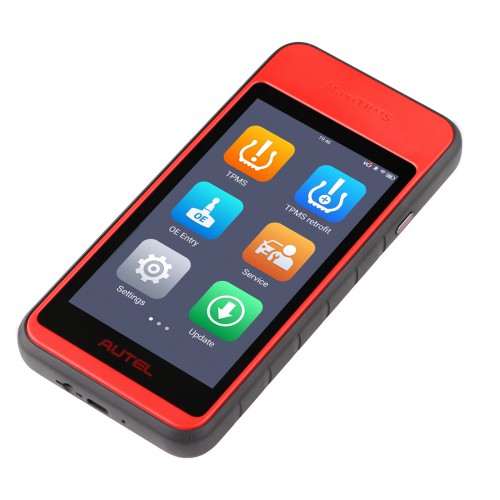

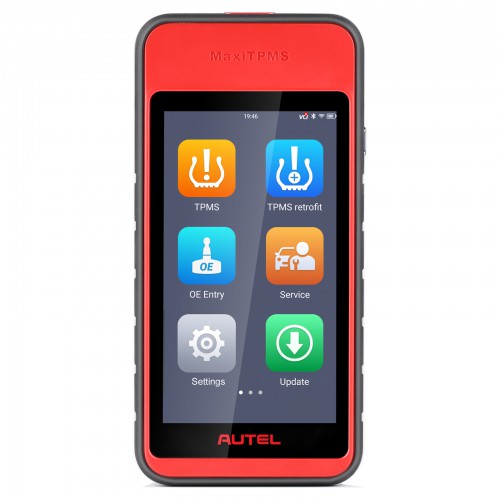

The MaxiTPMS ITS600 is a wireless, touchscreen Android-based tablet that offers complete TPMS diagnostics and service functions. The tablet features a 5.5-inch color display and Bluetooth vehicle communication interface (VCI). Compatible with U.S, Asian and European TPMS-equipped vehicles, the ITS600 features an enhanced TPMS status screen, VINscan for rapid vehicle identification, four MX-Sensor programming options, OBDII relearn functionality and onscreen relearn instructions for all vehicles. The ITS600 can activate, read and relearn all known sensors, perform TPMS system diagnostics and four common maintenance services. Additionally, it provides DOT number scan, tire expiration notice, and access to recall lookup. The ITS600 is compatible with TBE200/TBE100 Tire Tread & Brake Disc Wear Analysis tool, sold separately. By providing an extensive series of tire-related features and functions, ITS600 is your ideal choice to complete TPMS and tire health work.
Highlights:
1. 4 Ways to Program 315/433mHz MX-Sensors: Copy by Activation, Copy by OBD, Copy by Input and Auto Create 1-16 Sensors
2. Support Batch Program 20 MX-Sensors Maximum One Time, Activate all known TPMS sensors on the market, TPMS Retrofit
3. 3 Ways to Relearn OEM Sensors: Stationary Relearn, Automatic Relearn, OBD Relearn [Fast OBDII relearn works for most vehicles]
4. TPMS Diagnosis: read/ clear codes, turn off TPMS warning light, Read/ write sensor ID, tire pressure reference value setting
5. Support OE Level TPMS Services on Benz, BMW, Nissan, Hyundai, Ford
6. Support 4 Reset Functions: Oil reset, EPB reset, BMS reset, SAS reset
7. Support Comprehensive TPMS and Tire Diagnosis Report with TEB100/200
NOTE:
1. ITS600 Can Only Program Autel Brand MX-Sensors.
2. Please Program The MX-Sensors Before Installing The Sensors Into Tires.
Product Features:
Everything TPMS Solutions
• Activates, reads and relearns all known sensors
• Enhanced, at-a-glance diagnostics status screen
• Fast OBDII relearn for most vehicles
• Program MX-Sensors to replace 99% of OE sensors
• Copy By OBD sensor programming for faster service
• Four MX-Sensor program modes; batch program up to 20 MX-Sensors
• Includes wireless Bluetooth vehicle communication interface (VCI)
• Tire pressure placard value reset
• Read/Clear TPMS system codes & view live data
• Free Wi-Fi software updates for the life of the tool
Quick Vehicle ID Technology
• Rapid VIN acquisition via optical VINScan
• QR Code Scan / Barcode Scan, Plate scan, Auto VIN detect and manual input
• Identify MMY and sensor OE part number via VIN decoding
Diagnostics & Service
• Oil light reset
• Electronic brake service
• Battery registration
• Steering angle reset
• Included service function updates are free for the life of the tool
• All systems diagnostics and maintenance services software available with Pro Upgrade purchase
Expanded Tire Service
• Quick & Easy Tire DOT Number Scan
• Tire Expiration Notice
• Tire Recall Lookup
• Tread Depth & Brake Disc Wear
• Precise laser measurement of tread depth & brake disc wear with purchase of Autel TBE100/TBE200
• Comprehensive Test Report: TPMS health‚ Tread depth & brake disc wear characteristics & Repair tips
Product Specifications:
| Recommended Use | Indoor |
| Operating System | Android™ 9.0 |
| Processor | Quad-core processor (1.5 GHz) |
| Memory | 2GB RAM DDR4 & 64GB ROM |
| Display | 5.5-inch LCD capacitive touchscreen with 1280x720 resolution |
| Connectivity | • Wi-Fi
• USB 2.0, Type C
• BT |
| Sensors | Light sensor for brightness auto adjust |
| Audio input/output | Input: N/A
Output: Beep |
| Power and Battery | • 3.8 V/5000 mAh lithium-polymer battery
• Charges via 5 V AC/DC power supply |
| Battery Charging Input | 5 V/2 A |
| Power Consumption | 5V/1.5A |
| Power Consumption | 600 mA (LCD on with default brightness, Wi-Fi on) @3.8 V |
| Operating Temp | -10 to 45°C(14 to 113°F) |
| Storage Temp | -20 to 60°C (-4 to 140°F) |
| Dimensions (W x H x D) | 183.0 mm (7.2”) x 89.0 mm (3.5”) x 22.0 mm (0.87”) |
| Net Weight | 368 g (0.8 lb.) |
| Protocols | ISO9141-2, ISO14230-2,ISO15765, K/L-Line, Flashing Code, SAE-J1850 VPW, SAE-J1850PWM, ISO11898 (Highspeed, Middlespeed, Lowspeed and Singlewire CAN, fault-tolerant CAN), SAE J2610, GM UART,UART Echo Byte Protocol, Honda Diag-H Protocol, TP2.0, TP1.66 |
Autel TPMS Programming Tool Comparison Sheet
| Comparison | ITS600 | TS608 | TS508-WF | TS508 |
|---|
| TPMS & TIRE SERVICE |
| Worldwide Vehicle Coverage 99%, Always Up-to-date | √ | √ | √ | √ |
| Easy Vehicle Identification | √ (AutoVIN, VINscan, QR code/Barcode scan, Plate Scan, Manually select/input) | √ (AutoVIN, Manually select/input) | √ (Manually select) | √ (Manually select) |
| Activate, Read, Relearn All Known TPMS Sensors | √ | √ | √ | √ |
| Four Programming Options | √ | √ | √ | √ |
| Autel Sensor Batch Programming | √ (Up to 20 sensors) | √ (Up to 16 sensors) | √ (Up to 16 sensors) | √ (Up to 16 sensors) |
| OBDII Relearn / Automatic Relearn / Stationary Relearn | √ | √ | √ | √ |
| Relearn Procedure Guide | √ | √ | √ | √ |
| Exclusive TPMS Status Screen | √ | √ | √ | √ |
| Indicate sensor OE part number | √ | √ | √ | √ |
| Check MX-Sensor Information (ID, Battery, etc.) | √ | √ | √ | √ |
| Tire Pressure Placard Value Reset | √ | √ | √ | √ |
| Unlock TPMS ECU for old Toyota/Lexus, Integrated into OBD relearn | √ | √ | √ | √ |
| Test Remote Key Entry (RKE) | √ | √ | √ | √ |
| Read/Clear Codes for TPMS System | √ | √ | √ | √ |
| Special Functions (e.g. View Live Data for TPMS System) | √ | √ |
|
|
| DOT Scan, Tire Expiration Notice, Tire Recall Lookup | √ | √ (Coming soon with Autel-cloud based app) |
|
|
| Test Report | √ | √ | √ (View on PC) | √ (View on PC) |
| TPMS Software Update | Free Update | Annual Update Fee | Free Update | Free Update |
| DIAGNOSTICS |
| All System Diagnostics & All Maintenance Service | Free OLS, SAS, BMS, EPB;
Optional purchase of Pro Upgrade for All System Diagnostics & All Maintenance Service | √ |
|
|
| Diagnostic Software Update | All System Diagnostics and Services updates is FREE for 1 Year with Pro Upgrade purchase.
New software updates for these features will require a new ITS600 Pro Upgrade purchase. | Annual Update Fee |
|
|
| SOFEWARE |
| OPERATING SYSTEM | Android 9.0 | Android 4.4 |
|
|
| HARDWARE |
| Display | 5.5 inch TFT LCD-touch, 1280x720 | 7 inch TFT LCD-touch, 1024x600 | 2.8 inch TFT LCD, 320×240 | 2.8 inch TFT LCD, 320×240 |
| Camera | 8 MP |
|
|
|
| Flash / RAM / SD | 64GB / 1G; SD card up to 64G (Optional) | 32G / 1G; SD card up to 32G (Optional) | 16M / 3M | 16M / 3M |
| Lithium-ion Battery | 3.8V/5000mAh | 3.7V/5000mAh | 3.7V/3200mAh | 3.7V/3200mAh |
| Vibration reminder, Microphone voice remote assistance | √ |

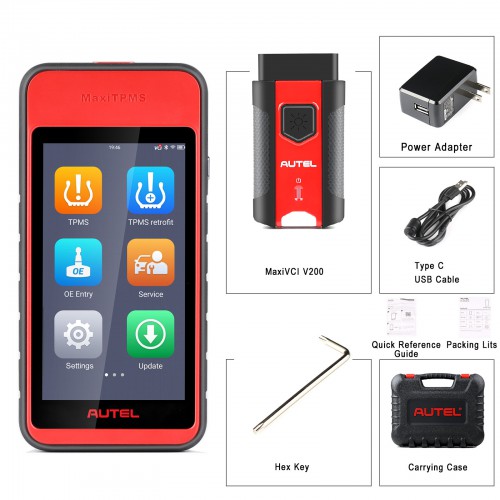

Package Includes:
1pc x MaxiTPMS ITS600 Main Unit
1pc x MaxiVCI V200
1pc x Power Adapter
1pc x Type C USB Cable
1pc x Hex Key
1pc x Quick Reference Guide
1pc x Packing List

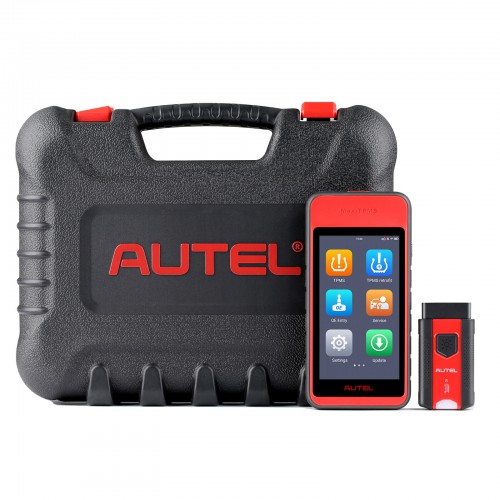

1pc x Carrying Case
