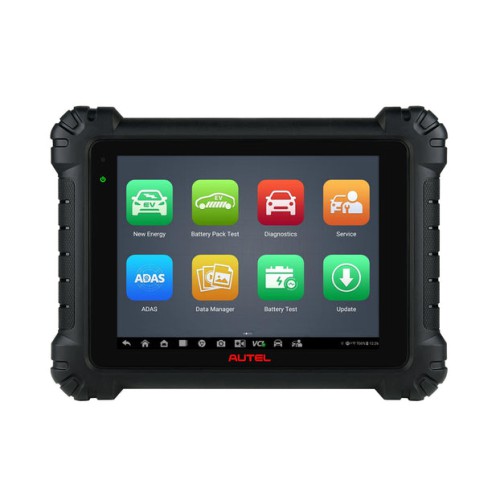

Autel Maxisys MS909EV EV Diagnostics Scanner with MaxiFlash VCI/J2534, High-Voltage System & Battery Pack Diagnostics, ECU Coding

Autel Maxisys MS909EV EV Diagnostics Scanner with MaxiFlash VCI/J2534, High-Voltage System & Battery Pack Diagnostics, ECU Coding

Product Code：

22456 Weight：10Kg

Categories: Diagnostic Tools

Price: $ 3078.00

Quantity：

Buy Now

ADD TO CART

Add to Wishlist

Share this：

Product Specification

Manufacturer	Autel
Update	2 years free online update
Warranty	1 year
Weight	10 Kg

Overview

Autel Maxisys MS909EV EV Diagnostics Scanner with MaxiFlash VCI/J2534, High-Voltage System & Battery Pack Diagnostics, ECU Coding

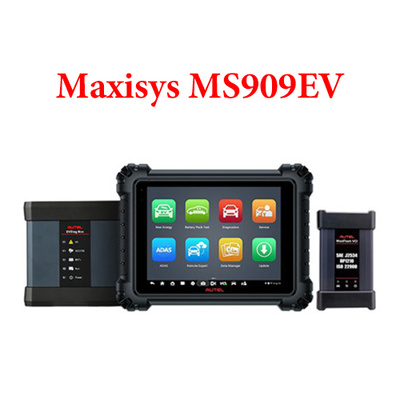

The MaxiSys MS909EV is a new generation of diagnostics for electric, hybrid, gas and diesel vehicles. With its dedicated EVDiag Box, MaxiFlash VCI, and detailed graphics, system information, and step-by-step instructions, the MaxiSYS 909EV provides a comprehensive approach to advanced electric and hybrid vehicle diagnostics.

Autel Maxisys MS909EV EV Diagnostics Scanner

The MaxiSys MS909EV is a new generation of diagnostics for electric, hybrid, gas and diesel vehicles. With its dedicated EVDiag Box, MaxiFlash VCI, and detailed graphics, system information, and step-by-step instructions, the MaxiSYS 909EV provides a comprehensive approach to advanced electric and hybrid vehicle diagnostics.

Autel MS909EV Top 9 Highlights:

1. Advanced diagnostics for U.S., European and Asian electric, gas and diesel, and hybrid vehicles
2. Rapid analysis of EV high-voltage system including ability to read and erase codes and view live data
3. Comprehensive diagrams of high-voltage system block, components and sockets; Step-by-step system disassembly instructions
4. State of Charge and State of Health analysis for true battery condition
5. Battery pack analysis can be performed via OBD or directly with included specialty cables and jumpers; the 909EV screen displays detailed graphics and in-depth connection guidance to provide safe and secure testing.
6. Automatic system and software updates with real-time push message notifications via internet
7. Interactive Data Logging sessions enable direct contact with Autel Support for first-hand troubleshooting of diagnostic bugs and error
8. One-stop multitasking designed for ideal management of shop operations to keep all data files, customer info, and vehicle records organized
9. Cloud-based Data Manager saves customer and vehicle records, scanner data and technician notes

Notice: For US address only. Other address can buy Autel Ultra EV

Autel MS909EV vs Autel Ultra EV vs Autel MS909 vs Autel MS919 vs Autel Ultra Comparison

	MS909EV	Ultra EV	MS909	MS919	Ultra
	MS909EV	Ultra EV	MS909	MS919	Ultra
Hardware
Connection	Bluetooth MaxiFlash VCI	Bluetooth MaxiFlash VCMI	Bluetooth MaxiFlash VCI	Bluetooth MaxiFlash VCMI	Bluetooth MaxiFlash VCMI
Screen	9.7inch touchscreen	12.9inch touchscreen	9.7inch touchscreen	9.7inch touchscreen	12.9inch touchscreen
Battery	15,000mAh	18,000mAh	15,000mAh	15,000mAh	18,000mAh
Processor	2.2GHz+1.8GHz	2.2GHz+1.8GHz	2.2GHz+1.8GHz	2.2GHz+1.8GHz	2.2GHz+1.8GHz
Processor	octa-core	octa-core	octa-core	octa-core	octa-core
Memory	128GB SSD/ 4GB RAM	256GB SSD/ 4GB RAM	128GB SSD/ 4GB RAM	128GB SSD/ 4GB RAM	256GB SSD/ 4GB RAM
Camera	16MP rear/16MP front	16MP rear/5MP front	16MP rear/16MP front	16MP rear/16MP front	16MP rear/5MP front
Docking Station	/	Included	/	/	Included
EVDiag Box	Included	Included	/	/	/
Software
Operating System	Android 10.0	Android 7.0	Android 10.0	Android 10.0	Android 7.0
Automatic Detection	Auto-VIN/Auto-Scan Scan VIN/Plate Scan	Auto-VIN/Auto-Scan Scan VIN/Plate Scan	Auto-VIN/Auto-Scan Scan VIN/Plate Scan	Auto-VIN/Auto-Scan Scan VIN/Plate Scan	Auto-VIN/Auto-Scan Scan VIN/Plate Scan
Automatic Detection	Auto-VIN/Auto-Scan Scan VIN/Plate Scan	Auto-VIN/Auto-Scan Scan VIN/Plate Scan	Auto-VIN/Auto-Scan Scan VIN/Plate Scan	Auto-VIN/Auto-Scan Scan VIN/Plate Scan	Auto-VIN/Auto-Scan Scan VIN/Plate Scan
Secure Gateway Access	Authorized FCA Access With AutoAuth account	Authorized FCA Access With AutoAuth account	Authorized FCA Access With AutoAuth account	Authorized FCA Access With AutoAuth account	Authorized FCA Access With AutoAuth account


License Plate Reader	Available on select vehicles	Available on select vehicles	Available on select vehicles	Available on select vehicles	Available on select vehicles
Vehicle Coverage	U.S., European and Asian electric, gas and diesel, and hybrid vehicles	U.S., European and Asian electric, gas and diesel, and hybrid vehicles	U.S., European and Asian electric, gas and diesel, and hybrid vehicles	U.S., European and Asian electric, gas and diesel, and hybrid vehicles	U.S.,European and Asian electric, gas and diesel, and hybrid vehicles
OBDII Test Modes	All 10 test modes	All 10 test modes	All 10 test modes	All 10 test modes	All 10 test modes
Service Resets	36 service features	36 service features	36 service features	36 service features	36 service features
Diesel PM	Reset diesel emissions	Reset diesel emissions	Reset diesel emissions	Reset diesel emissions	Reset diesel emissions
Diesel PM	Light&medium duty vehicles	Light&medium duty vehicles	Light&medium duty vehicles	Light&medium duty vehicles	Light&medium duty vehicles
System Diagnostics	Access all modules in all systems	Access all modules in all systems	Access all modules in all systems	Access all modules in all systems	Access all modules in all systems
High-voltage System Diagnostics	Diagrams of high-voltage system block	Diagrams of high-voltage system block	/	/	/
Battery Pack Diagnostics	SOC and SOH analysis	SOC and SOH analysis	/	/	/
Component Activations	Bi-directional control	Bi-directional control	Bi-directional control	Bi-directional control	Bi-directional control
Enhanced Functions	Coding&adaptations	Coding&adaptations	Coding&adaptations	Coding&adaptations	Coding & adaptations
ADAS Calibration	ADAS Upgrade & Frame Kit	ADAS Upgrade & Frame Kit	ADAS Upgrade & Frame Kit	ADAS Upgrade & Frame Kit	ADAS Upgrade & Frame Kit
ADAS Calibration	Purchase required	Purchase required	Purchase required	Purchase required	Purchase required
Cloud Services	Remote programming & Report storage	Remote programming & Report storage	Remote programming & Report storage	Remote programming & Report storage	Remote programming & Report storage
Repair Assist	Guided procedures with DTC analysis & fault code solutions	Guided procedures with DTC analysis & fault code solutions	Guided procedures with DTC analysis & fault code solutions	Guided procedures with DTC analysis & fault code solutions	Guided procedures with DTC analysis & fault code solutions
Repair Assist	Guided procedures with DTC analysis & fault code solutions	Guided procedures with DTC analysis & fault code solutions	Guided procedures with DTC analysis & fault code solutions	Guided procedures with DTC analysis & fault code solutions	Guided procedures with DTC analysis & fault code solutions
Topology Module Mapping	Color coded all system status screen on supported vehicles	Color coded all system status screen on supported vehicles	Color coded all system status screen on supported vehicles	Color coded all system status screen on supported vehicles	Color coded all system status screen on supported vehicles
Relevant Cases	DTC troubleshooting	DTC troubleshooting	DTC troubleshooting	DTC troubleshooting	DTC troubleshooting
Technical Service Bulletins	Available on select vehicles	Available on select vehicles	Available on select vehicles	Available on select vehicles	Available on select vehicles
Oscilloscope	/	VCMI 5-in-one devic, VCI multimeter, waveform generator, CAN Bus tester	/	VCMI 5-in-one devic, VCI multimeter, waveform generator, CAN Bus tester	VCMI 5-in-one devic, VCI multimeter, waveform generator, CAN Bus tester
Split ScreenDisplay	/	/	/	/	View multiple functions at once

Autel Maxisys MS909EV Feature:

High Voltage Systems Diagnostic

Read Codes & Clear Codes & Display Live Data

Autel MS909EV EV diagnostic scan tool is able to perform diagnosis on high-voltage (HV) systems of new energy vehicles, mechanic can get detailed information of the battery pack, including SOC/SOH, total voltage, total current, pack voltage delta, temperature, etc.

High Voltage Systems Block Diagram

Line Circuits
Module Location
Picture and Video Operating Guideline

Offline Battery Pack Diagnostics

Autel MS909EV EV scanner also support offline battery pack diagnostics to make sure that the battery is repaired before installation, totally improve your working efficiency.

Graphical Data Flow
Battery Pack Maintenance Tips
Battery Pack Diagnostic Report

Autel MaxiSys MS909EV Diagnostic

OE Technical Service Bulletin, DTC Analysis, Relevant Cases, together with Topology Diagram, it's so easy to locate and root out the DTCs. You can tap via the Topology to check the fault codes and solve the multi-functions with detailed DTC definition and solution provided.

Upgraded Topology 2.0

Autel EV Scanner MS909EV can automatically scan all ECU modules and display the module communication structure and list all system faults in one diagram. Moreover, Autel MS909EV has been upgraded with Topology 2.0 to create a new whole topology diagram based on circuit diagram according to different vehicle configuration. Topology 2.0 can display different topology structure with one-to-one correspondence, helping technicians locate question fast and accurately.

ECU PROGRAMMING&ECU CODING

Autel car diagnostic scan tool MaxiSys MS909EV supports ECU programming on specific For BMW and Benz just like OE tools. You can use it to reprogram and re-match the new ECU modules after replacement, or use the ECU Coding to unlock hidden functions, set customerized functions, and improve vehicle performance. Autel MS909EV is designed to handle complex vehicle issues such as fuel efficiency, power loss, and durability of mechanical parts, etc.

Program the Blank ECU
Reflash New Module
Match the Components to On-board Systems
Replace the existing software / firmware

Improve Vehicle Performance
Simulate High-end Car Functions
Changes Pre-programmed Options
Unlock the Hidden Function

40+ Maintenance Functions

Autel MaxiSys MS909EV scanner can perform 40+ services like Oil Reset, Injector Coding, EPB, TPMS, BMS, ABS Bleeding, Suspension,Trans Adaptation, IMMO Keys, EPB Reset, SAS Calibration, Throttle, Suspension, cam crank relearn, power balance test and so on. For VAG vehicle, Autel intelligent diagnostic scan tool MS909EV presents full detailed step by step instructions, simplify all the complicated operations.

Autel MS909EV- Top High-end Diagnostic Tool

Full Bidirectional Control Ability
Autel MS909EV EV diagnostic scan tool can communicate with vehicle’s computer and send action commands to different vehicle’s modules for interactive tests.

Key Fob Programming
Autel MS909EV 2024 newest automotive diagnostic scan tool can disable the lost vehicle keys and program a new key fob on most of the low-grade anti-theft vehicles.

VAG Guided Functions
Targeted on different car models and configurations, Autel MS909EV displays detailed operation guidance including step by step tips, auto log-in, matching, setting and coding.

More Flagship Features
Autel MS909EV auto scan tool provides the top diagnostic experience on over 20000+ vehicles with best hardware configuration and most powerful functionality

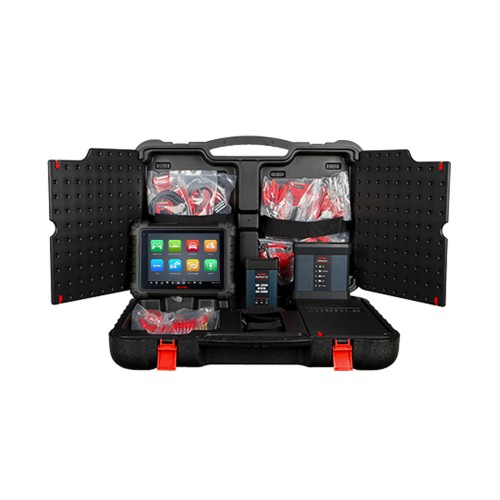

Autel Maxisys MS909EV Package List
