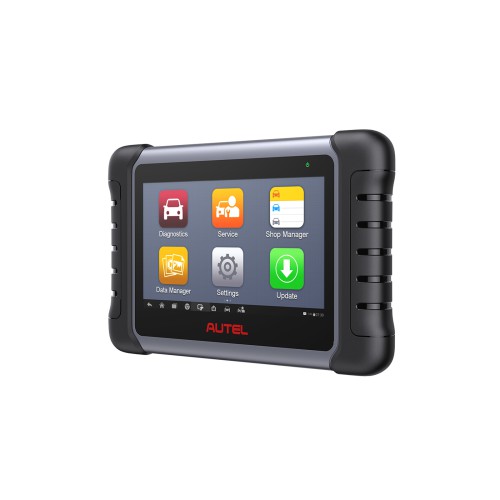

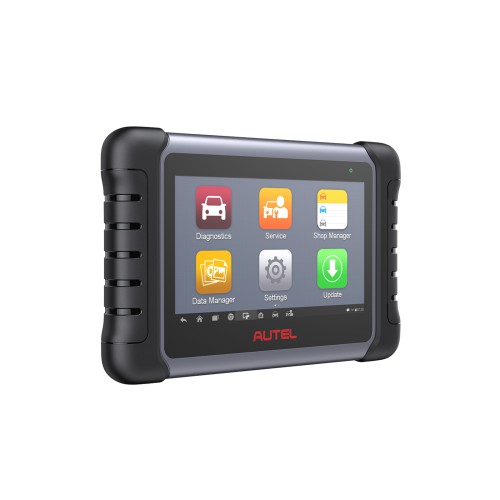

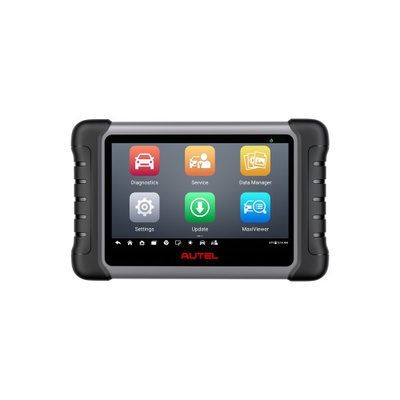

Autel MaxiCOM MK808S Bidirectional Tool Suppport Active Test and All System Diagnosis Updated of MaxiCheck MX808 MK808
Autel MaxiCOM MK808S Bidirectional Tool Suppport Active Test and All System Diagnosis Updated of MaxiCheck MX808 MK808
Autel MaxiCOM MK808S Bidirectional Tool Suppport Active Test and All System Diagnosis Updated of MaxiCheck MX808 MK808
Product Introduction:
When it comes to ultra-portability, MaxiCOM MK808S is your perfect companion. Installed with a fast quad-core processor, MK808S offers maximum convenience and swift diagnosis. The intuitive user screen makes using the device effortless via a 7-inch LCD touchscreen that displays at 1024 x 600 quality.
Together with the ability to quickly read and clear DTCs for all available modules of the majority of the makes and models on the market, MK808S provides you with superior special functions, including Oil Reset, EPB (Electronic Parking Brake), SAS (Steering Angle Sensor), BMS (Battery Management System), DPF (Diesel Particulate Filter), IMMO, and TPMS (Tire Pressure Monitoring System).
Product Features:
Perform bi-directional Active Tests
Powerful Cortex-A55 processor (1.8 GHz) processor
7-inch LCD capacitive touchscreen with 1024 x 600 resolution display
64GB on-board memory for better performance
Android 11 operating system for fast boot-up and multitasking
Reset Steering Angle Sensor (SAS)
Reset service mileage and service intervals
Reset Electronic Parking Brake
Perform DPF regeneration
Reset Injectors
Support battery registration and reset
Compatible with Videoscope
Read/erase codes on all available systems
View and graph Live Data
AutoVIN technology automatically identifies vehicle make, model, and year
Product Specifications:
| Operating System | Android 11 |
| Processor | Cortex-A55 quad-core processor (1.8GHz) |
| Memory | 4GB RAM & 64GB On-board Memory |
| Display | 7-inch LCD capacitive touchscreen with 1024x600 resolution |
| Connectivity | Wi-Fi（802.11a/b/g/n/ac）
USB 2.0，Mini USB 2.0
SD Card (Support up to 64GB) |
| Sensors | Light sensor for brightness auto adjust |
| Audio Input/Output | Input: N/A Output: Beep |
| Power and Battery | 3.7 V/5000mAh lithium-polymer battery
Charges via 5 VDC power supply |
| Input Voltage | 5 V/1.5 A |
| Operating Temp | 0 to 50°C (32 to 122°F) |
| Storage Temp | -20 to 60°C (-4 to 140°F) |
| Dimensions(WXHX D) | 270.8 mm (10.0”) x 176.0 mm(6.9”) x 36.0 mm (1.4”) |
| Weight | 885 g (2.31 lb.) |
| Protocols | ISO9141-2, ISO14230-2, ISO15765, K/L-Line, Flashing Code, SAE-J1850 VPW, SAE-J1850PWM, ISo11898(Highspeed, Middlespeed, Lowspeed and Singlewire CAN, fault-tolerant CAN) SAE J2610, GM UART UART Echo Byte Protocol, Honda Diag-H Protocol, TP2.0, TP1.6 |

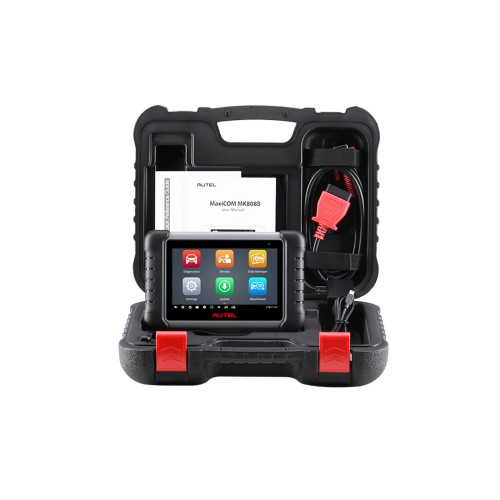

Package Includes:
1pc x Main Unit
1pc x Main Cable
1pc x Mini USB Cable
1pc x Power Adapter
1pc x Quick Reference Guide
