Audi BCM2 Soldering Free Adapter for Add Key and All Key Lost

Xhorse VVDI Audi BCM2 Soldering Free Adapter

Product Code：

19529 Weight：0.96Kg

Categories: Additional Adapters

Price: $ 135.60

Quantity：

Buy Now

ADD TO CART

Add to Wishlist

Share this：

Product Specification

Manufacturer	Xhorse VVDI
Supporting Models	Audi BCM2
Work For	VVDI Tool Plus Pad, VVDI2 + VVDI Prog
Condition	New
Original	Yes
Weight	0.96 Kg

Overview

Xhorse VVDI Audi BCM2 Soldering Free Adapter

Xhorse BCM2 Audi Solder-Free Adapter
For Audi Add Key and All Key Lost Solution, No Need to Connect to Audi Server
Work with Key Tool Plus Pad, and VVDI2 with VVDI Prog set.

Xhorse BCM2 Audi Solder-Free Adapter for Audi Add Key and All Key Lost Solution

Highlights:

1. No Need To Connect VW Server.
2. Support get BCM2 immo data without original key ID
3. Support exchange BCM2 function in future updates.
4. Compatible with VVDI Key Too Plus Pad and VVDI2 + VVDI Prog (Requires VVDI Prog to read BCM2 data).
5. No Need Tokens. Free Update Online as other Xhorse tools.
6. Don't need a special key. Use a regular 754J key on the aftermarket to program.

Description:

Xhorse BCM2 solder-free adapter is the best affordable choice when all your keys are lost or when you want to add keys. It works with Key Tool Plus/ VVDI2+VVDI Prog. It's able to provide a simple and safe way to add keys as well as a solution when all keys are lost for AUDI vehicles.

This adapter is used to read Audi's encrypted BCM computer data. There is no need to solder anymore while reading AUDI BCM2 module, therefore, it is friendly to the people without soldering techniques. Being solder-free it creates a safer environment and also protect users' money by avoid damaging AUDI BCM2 modules.

Xhorse BCM2 solder-free adapter brings convenience for locksmiths to greatly improve efficiency during key programming. With the adapters, users no longer need to disassemble and solder modules, which will surely save you much time.

Support Vehicle List:

1. 2013-2019 A4L, A5, Q5
(BCM2 version: 0711, 0650, 0641) Support add key and all key lost

2. 2013-2019 A6L, A7, A8
(BCM2 version: 0825, 0824, 0827) Support get BCM2 immo data when all key lost

Add Key			All Keys Lost
	Read BCM2 data	Synchronize data	Read BCM2 data	Synchronize data
A4L/A5/Q5 -2013	OBD	No	OBD/some need remove BCM2	No
A4L/A5/Q5 2013-2019	Xhorse BCM2 Adapter	NNo	VVDI BCM2 adapter	No
A6L/A7/A8 -2013	OBD	Obtain from working key	OBD/some need remove BCM2	Obtain from third party
A6L/A7/A 2013-2019	OBD	Obtain from working key	VVDI BCM2 adapter	Obtain from third party

Xhorse AUDI BCM2 Adapter Wiring Diagram:

Connect the Device with VVDI Key Tool Plus Pad
Xhorse BCM2 Audi Solder-Free Adapter Connect with Key Tool Plus

Xhorse BCM2 Audi Solder-Free Adapter Connect with Key Tool Plus

Connect the Device with VVDI2 + VVDI Prog (VVDI Prog is Used to Read BCM2 Data).

FAQ:

Q1: Does it support A6L all key lost?
A1: A6L can't support yet. Currently, it only supports A4L, A5, and Q5 all key lost.
A6L supports reading BCM2 data in the all-lost state. You need to find a third party to synchronize the data.

Q2. Can it work with VVDI2 too instead of Key Tool Plus Pad?
A2: VVDI2 will also upgrade the software to support this function, while it has to work together with VVDI Prog for reading BCM2 data.

Q3. Can I use OBD for A4L from 2013 to 2018?
A3: No. The 2013-2018 A4L needs to read BCM2 data through the Audi free soldering adapter, while the A4L before 2013 can obtain BCM2 data by OBD, and does not require a set of data.

Q4. Can I read BCM2 data directly by the solder-free adapters?
A4: The Audi kit-free solder-free adapter kit consists of 6 parts. Its core component is the orange BCM2 adapter. As long as this adapter is available, the BCM2 data can be read by soldering wires, but the adapter is not currently sold separately. In addition, in order to prevent welding damage to the BCM2 computer, we strongly recommend that novices choose a solder-free adapter.

Q5. Is BCM2 easy to disassemble?
A5: It is more convenient, as long as people with a little hands-on ability can do it, it is usually hidden behind the protective pad of the car trunk, which is a buckle plastic box. You can take out the BCM2 circuit board by gently prying the buckle.

Q6. How much does it cost to synchronize data with a third party?
A6: Because there is currently no third party that specializes in cooperation, you can consult a third party who can provide this service. The specific cost is negotiated between you and the third party.

Q7. When is the delivery time?
A7: It is planned to ship in early September, and it will be shipped in the order of booking submitted by the agent, first-order first-served.

Q8. Will there be any annual fees in the future? Will points be deducted?
A8: The adapter only charges a one-time fee, and it will be free for future use, and no points will be deducted.

Q9. Are there any special restrictions on the keys used?
A9: You can use the 754J key currently on the market.

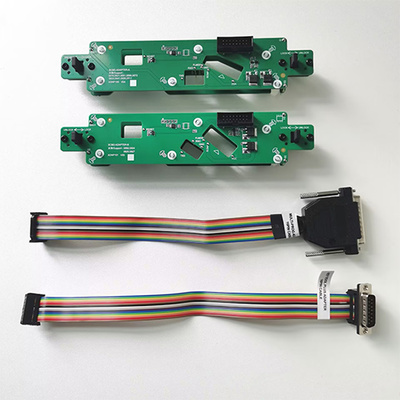

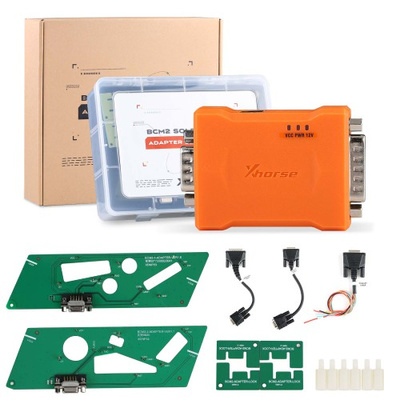

Package List:

1 pcs* XDN63 BCM-1 Solder free Adapter
1 pcs* XDN64 BCM-2 Solder free Adapter
1 pcs* XDN67 BCM2-PROG Cable
1 pcs* XDN66 BCM-A2 Cable
1 pcs* XDN65 BCM-A1 Cable
1 pcs* XDN62 BCM2 Adapter

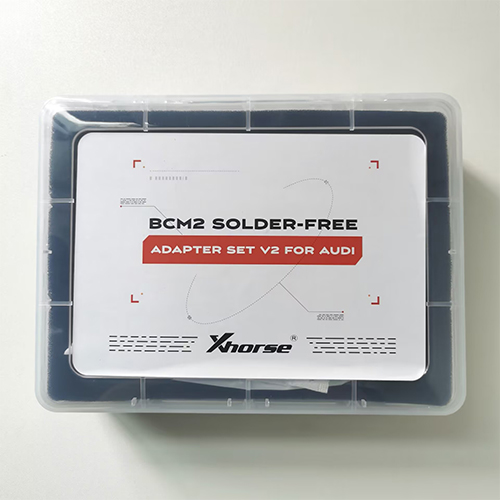

Xhorse BCM2 Audi Solder-Free Adapter Package List

Check all Xhorse VVDI Adapters List Here
