Specs:

Manufacturer: ABRITES
Condition: New

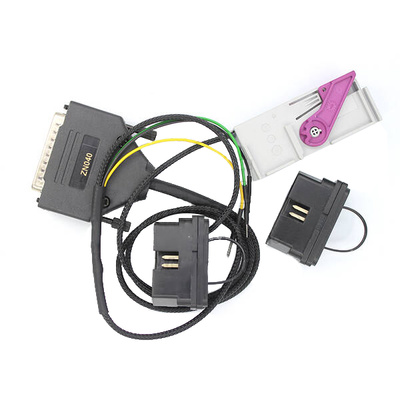

The ZN040 adapter is used when performing All Keys Lost procedures for Audi A6/A7/A8 2011+ with BCM2.

The adapter provides all necessary connections:

• CAN separator – used for connection to the internal CAN-BUS of the vehicle for reading the ECU and TCU
• LIN connector (green wire) – used for connection to the internal LIN-BUS of the vehicle for reading the ELV
• OBDII connector – used to force the IGN ON
• B+ connector (yellow wire) – used for connection to B+ when reading the ECU and TCU through the CAN separator
• GND connector (black wire) – used for connection to GND when reading the ECU and TCU through the CAN separator

An AVDI interface and VN003 are required to use this adapter.
