2026 LAUNCH X-431 G5 PROG5 3-in-1 IMMO Programmer for European Vehicles Support Key Matching/ Programming ECU/TCU Cloning & Writing Upgrade of XPROG3

2026 LAUNCH X-431 G5 PROG5 3-in-1 IMMO Programmer for European Vehicles Support Key Matching/ Programming ECU/TCU Cloning & Writing Upgrade of XPROG3

Product Code：

21194 Weight：4.2Kg

Categories: Key Programmer

Price: $ 699.00

Quantity：

Buy Now

ADD TO CART

Add to Wishlist

Share this：

Product Specification

Manufacturer	Launch X431
Update	One year free online update
Warranty	1 year
Weight	4.2 Kg

Overview

2026 LAUNCH X-431 G5 PROG5 3-in-1 IMMO Programmer for European Vehicles Support Key Matching/ Programming ECU/TCU Cloning & Writing Upgrade of XPROG3

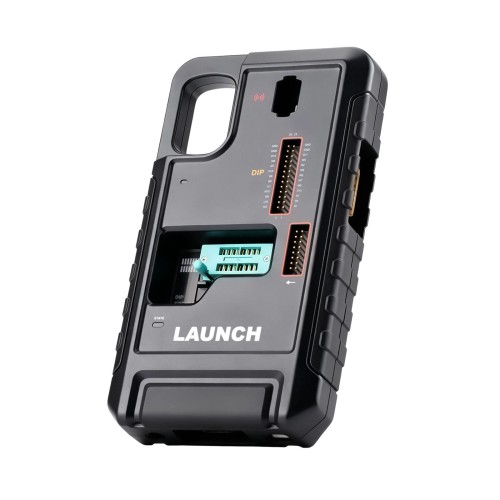

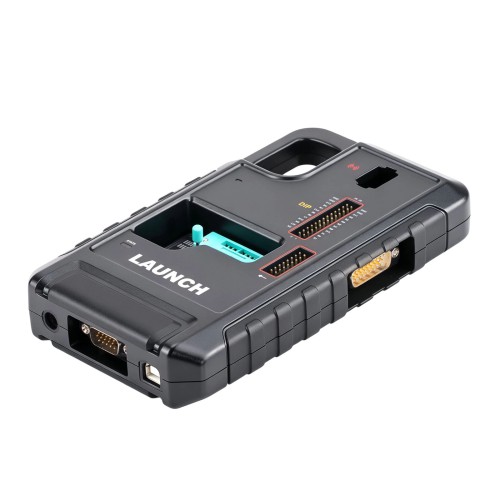

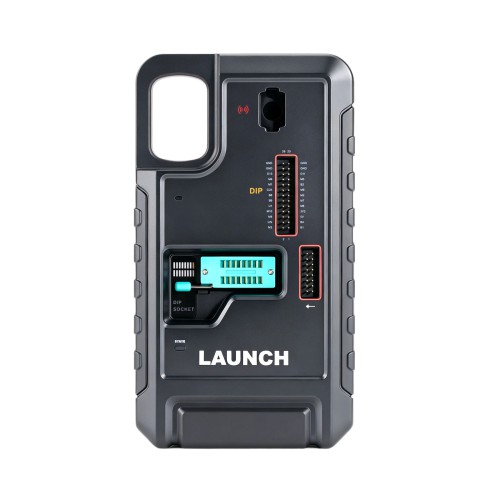

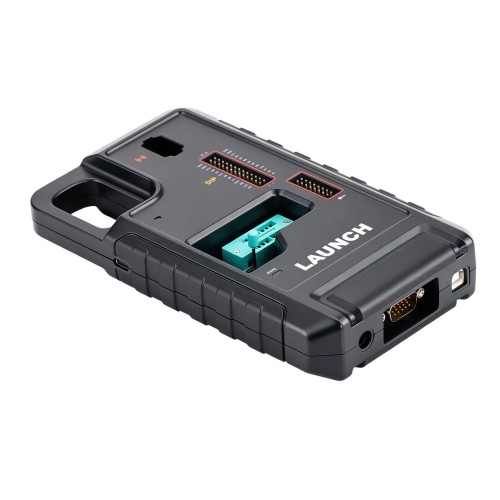

LAUNCH G5 immobilizer programmer is a professional 3-in-1 IMMO device for European vehicles, integrating advanced key matching, universal remote key programming, and comprehensive ECU/TCU (Engine and Transmission) cloning and writing functions. It serves as a significant upgrade over the previous G3 model, offering enhanced coverage for immobilizer programming and module cloning.

LAUNCH X-431 PROG5 G5 3-in-1 IMMO Programmer

LAUNCH X-PROG5 immobilizer programmer is a professional 3-in-1 IMMO device for European vehicles, integrating advanced key matching, universal remote key programming, and comprehensive ECU/TCU (Engine and Transmission) cloning and writing functions. It serves as a significant upgrade over the previous G3 model, offering enhanced coverage for immobilizer programming and module cloning.
LAUNCH X-431 PROG5 G5 3-in-1 IMMO Programmer

Immobilizer Cloning and Key Programming Software:

ECU Cloning PC Tool: Performs reading, writing, and cloning of engine and transmission ECUs via computer.

IMMO PROG (Tablet): Enables reading, writing, and cloning of engine and transmission ECUs through the tablet device.

Key Programmer: Reads key data, generates new keys, and unlocks existing keys.

LAUNCH X-431 PROG5 HIGHLIGHTS:

1.Supports Engine and Gearbox ECU cloning for 12,000+ vehicle models.
2.Supports 3,000+ chips, including encrypted RH850/V850 and BMS reading and writing.
3.Built-in Key Programming function supporting Key Reading and Generation NEW
4.Supports ID48/96 Key Chip Cloning NEW
5.Supports more Engine & Transmission ECU Cloning NEW
6.Expanded Range of Chip Read/Write NEW
7.Use with PC Software for ECU Cloning and Data Verification NEW
8.Full VW/AUDI Anti-theft System Support
9.Comprehensive BMW Anti-theft System Support
10.Mercedes-Benz FBS3 Clearing, Replacement, and Programming, as well as FBS4 Cloning
11.Porsche key matching, ECU/Gearbox cloning, and battery repair

Notice:
1. The LAUNCH X431 G5 can connect directly to the computer; a PC Adapter is no longer needed.
2. The X431 G5 can be used with the X431 PAD series (X431 PAD V ELITE, PAD VII ELITE, PAD IX), as well as comprehensive diagnostic tools such as PRO3 V+ ELITE/ PRO3S+ ELITE.
3. The product does not come with IMMO software and only supports basic IMMO functions for European vehicles. To work on other vehicle brands, please purchase an additional IMMO software license.
4. One Year Free Update.

LAUNCH X-431 PROG5 G5 3-in-1 IMMO Programmer

European Vehicle Immobilizer Functions: Supports key matching, immobilizer module erasing/rewriting, and immobilizer module replacement.

In addition to its core functions, the G5 Immobilizer Programmer continuously receives firmware and software updates to introduce new features, keeping pace with the rapid evolution of automotive technology. Recent additions include:

For Audi: MLB platform key addition function(Under development)

For Volkswagen: Instrument cluster V850 support

For Volkswagen: Instrument cluster RH850 support

For Volkswagen: MQB platform 5C 5D all-keys-lost function
RH850 V850 5C 5D support

For BMW: Engine ISN code reading

For Mercedes-Benz: Transmission OBD cloning and gear selector module cloning

ID46 and ID48 transponder chip cloning

Fully supports Volkswagen/Audi anti-theft systems:
Supports platforms including 3rd/4th/5th generation and MQB;
Supports key addition, key loss recovery, and anti-theft component replacement functions; Supports engine replacement and matching functions, and supports cloning of various engine/transmission types;
Supports MQB ELV, Audi 5th generation BCM2 encrypted data reading and parsing, and cloning functions for SIMOS18 series engines

Fully supports BMW anti-theft systems:
Supports CAS1/2/3/3+ and CAS4/4+ cloning functions;
CAS4/4+ and FEM/BDC replacement; BMW G chassis key matching;
FRM module repair; transmission data erasure and engine replacement.

Supports Mercedes-Benz vehicles:
Supports Mercedes-Benz FBS3, enabling data erasure, replacement, and cloning of various types of steering locks, ignition coils, engines, transmissions, and shift modules;
Supports cloning functions for various FBS4 engines and transmissions, including DSM/FDCT/VGS4NAG2/VGSNAG3, allowing for data erasure and personalization without opening the casing.

Supports Porsche vehicles:
Supports key matching, front and rear ECU cloning, and various types of engine and transmission cloning, as well as battery repair for Porsche vehicles from 2011-2017.

LAUNCH X431 G5 Product Specifications:

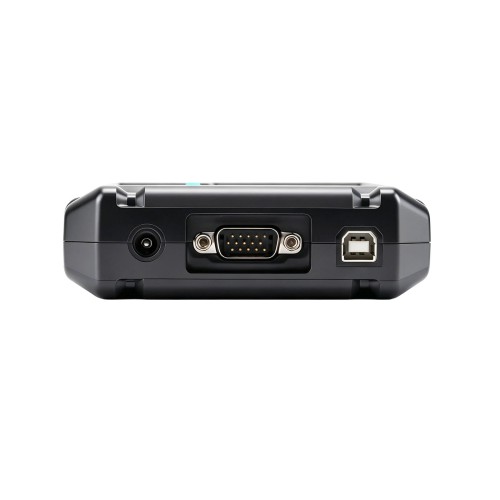

Interface: DB26/DB15
Input Voltage: DC14V
Input Current: 500MA
Operating Temperature: 0 – 50 degrees Celsius
Storage Temperature: -20 – 70 degrees Celsius

Product Functions:Comparison Between X-431 PROG5 and X-431 PROG3

Functions/Models	X-431 PROG5	X-431 PROG3
For VW/Audi Gen 3/4/5 key matching	Yes	Yes
For VW Gen 4 instrument all-keys-lost key reading	Yes	Yes
For Audi Gen 5 steering column chip R/W	Yes	Yes
MED17 engine OBD reading	Yes	Yes
For VW Gen 4 UDS engine replacement	Yes	Yes
For VW/Audi MQB engine/transmission/steering column replacement	Yes	Yes
For VW/Audi Gen 5 / MQB transmission FLASH/EEPROM R/W	Yes	Yes
For VW/Audi Bosch engine cloning	Yes	Yes
For VW/Audi Siemens engine cloning	Yes	Yes
Post-2014 UDS engine replacement (no original ECU needed)	Yes	Yes
For VW MQB 5C/5D key matching	Yes	No
For VW/Audi SIMOS18 series cloning	Yes	No
VW V850 instrument data reading & cloning	Yes	Limited support
VW RH850 instrument data reading & parsing	Yes	Limited support
For VW MQB instrument mechanical/smart key all-keys-lost (read/write/parse engine & trans data)	Yes	Limited support
For Benz key matching (FBS3)	Yes	Yes
For Benz engine/trans erasing (FBS3)	Yes	Yes
For Benz engine (FBS4)	Yes	Yes
For Benz trans cloning (FBS4): 2x 7-speed, FDCT, 9-speed	Yes	Yes
For Benz W164/W169/W209/W211 no-gateway all-keys-lost password calc (FBS3)	Yes	No
For Benz multi EIS cloning	Yes	Limited support
For Benz FDCT/VGS4 NAG2/VGS NAG3 cloning (FBS4)	Yes	No
For Benz DSM (FBS4)	Yes	No
For Benz key addition w/password calc (FBS3)	Yes	Yes
For Benz all-keys-lost password calc (FBS3)	Yes	Yes
For BMW CAS1/2/3/4, FEM/BDC	Yes	Yes
For BMW G-series key matching	Yes	Yes
For BMW engine ISN reading	Yes	Limited support
For BMW E-series 8HP trans erasing	Yes	Yes
For BMW E-series 8HP trans cloning	Yes	Yes
For BMW FRM repair	Yes	Yes
For BMW F-series 6HP trans erase/clone	Yes	Yes
For BMW F/G-series 8HP trans clone	Yes	Yes
For BMW F/G-series 8HP trans erase	Yes	Yes
For BMW engine replacement	Yes	Yes
For BMW Bosch engine clone	Yes	Yes
For BMW Siemens engine clone	Yes	Yes
For Porsche 2011-2017 key matching	Yes	Yes
For Porsche front/rear ECU clone	Yes	Yes
For Porsche engine & trans ECU clone	Yes	Yes
For Porsche battery repair	Yes	Yes
For Various Bosch engine clone	Yes	Yes
For Various Siemens engine clone	Yes	Yes
For Various trans clone	Yes	Yes
For Various DELCO/DENSO/Marelli engine clone	Wide support	Yes
For RH850 encrypted chip R/W	Wide support	Yes
For BMS chip R/W	Yes	No
For ID48/96 & ID46 chip cloning	Yes	No
For ECU checksum/verification	Wide support	Yes

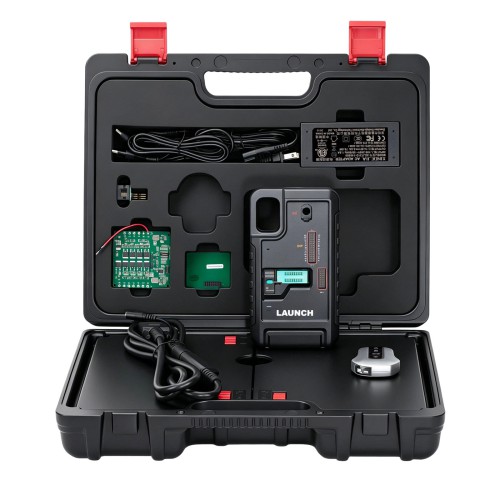

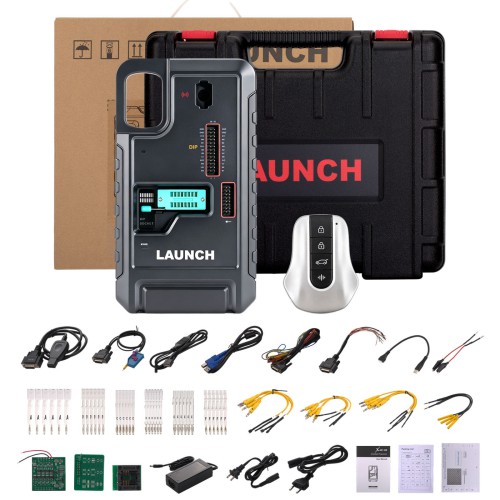

Package includes:

1pc x PROG5
1pc x test cable
1pc x XTA001
1pc x EEPROM
1pc x RH850/V850
1pc x USB Cable(type B)
2pcs x Black Clip Wire
1pc x switching power supply
1pc x European power cord
1pc x MB key
1pc x NS Cable V1
1pc x MCU Cable V1
1pc x Bench Cable V2
6pcs x Matching Adapter A V2.0
6pcs x Matching Adapter B V2.0
6pcs x Matching Adapter C V2.0
6pcs x Matching Adapter D V2.0
6pcs x Matching Adapter E V2.0
6pcs x Matching Adapter F V2.0
4pcs x Matching Adapter A
4pcs x Matching Adapter C
4pcs x Matching Adapter E
2pcs x Bench Extension Cables

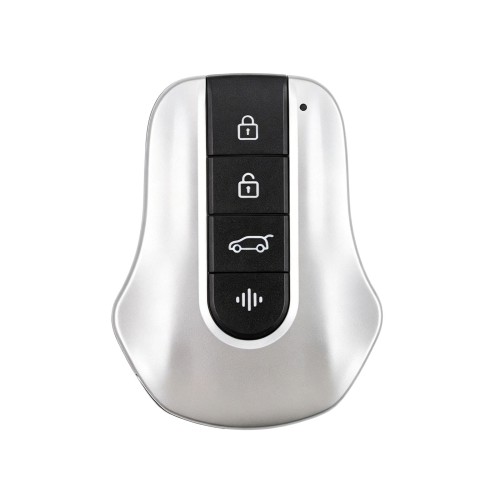

1pc x Car Key
1pc x Key Chip Programming Cable
1pc x User Manual
1pc x Password Envelope
1pc x Packing List
