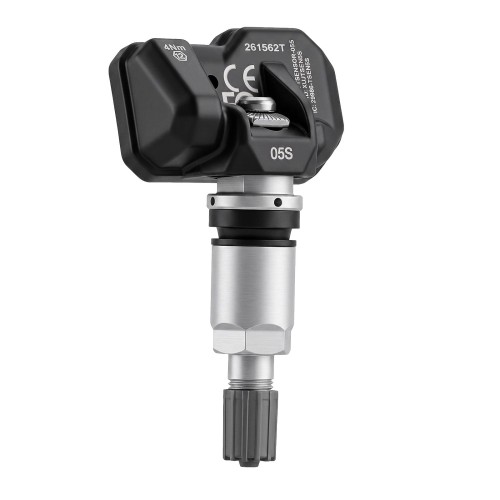

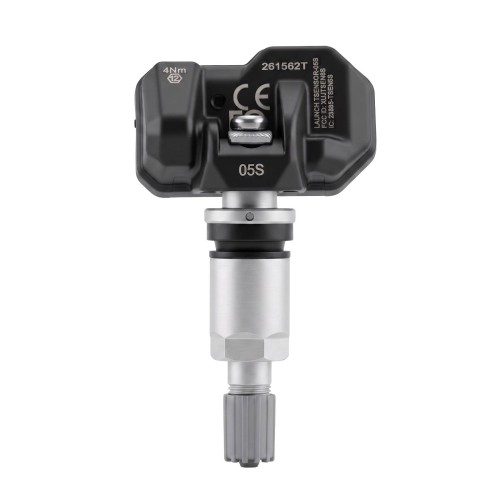

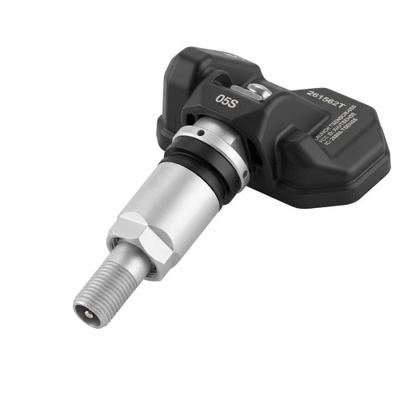

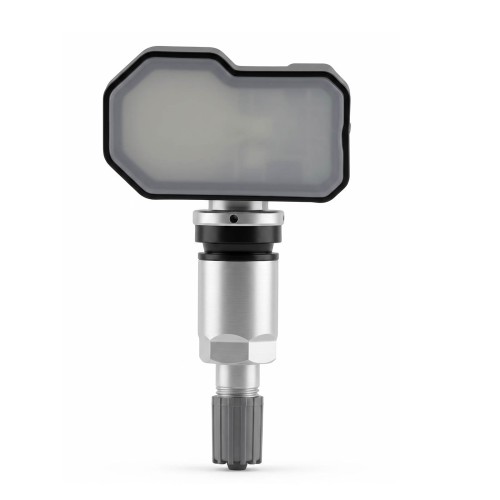

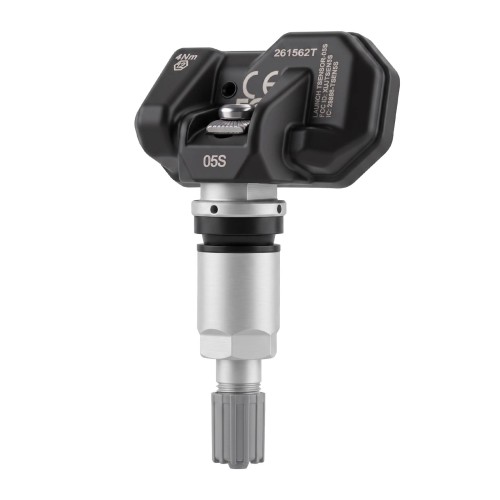

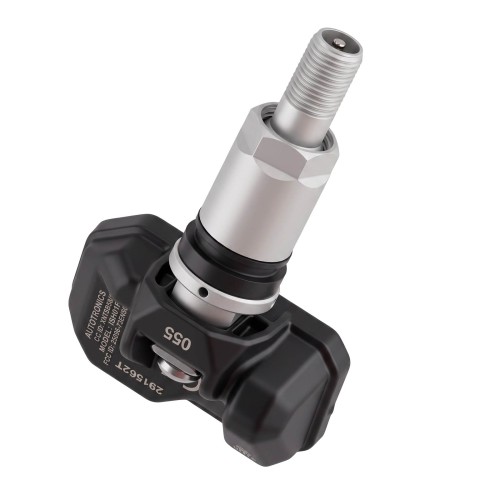

2026 LAUNCH TSENSOR-05S RF TPMS Sensor (Overseas Configuration with Adjustable Angle Sandblasted Silver Aluminum)
LAUNCH TSENSOR-05S RF TPMS Sensor (Overseas Configuration with Adjustable Angle Sandblasted Silver Aluminum)
LAUNCH TSENSOR-05S RF TPMS Sensor (Overseas Configuration with Adjustable Angle Sandblasted Silver Aluminum)
Development Background:Using the second-generation SNP739D81CLE chip from SENASIC, this RF tire pressure sensor is suitable for passenger cars and can replace 98% of original sensors on the market. For the Creader TPMS 5011 V2 model, the TPMS software needs to be upgraded to version V10.54, and the CRT5011E client needs to be upgraded to version V1.50. The use of the second-generation SENASIC SNP739D81CLE mainly addresses the poor LF (low frequency) adaptation issues of the first-generation sensors in several vehicle models, thereby improving sensor compatibility with more vehicle models.Product Features:Dual-frequency integrated design, compatible with 98% of vehicles on the market.Capable of replacing all original equipment (OE) tire pressure sensors, accurately replicating factory sensor data.Performance comparable to OE standards (supports both 315MHz and 433MHz dual frequencies), supports unlimited reprogramming, and features a non-invasive installation design for enhanced durability and convenience.High-precision valve core effectively prevents air leaks, ensuring robustness, durability, and stable functionality.Optimized RF antenna for exceptional signal transmission.Aluminum alloy sandblasted silver valve stem supports 30-degree angle adjustment.Product Comparison among LAUNCH TSENSOR Series: | Model | LAUNCH TSENSOR-03 | LAUNCH TSENSOR-05 | LAUNCH TSENSOR-05S | LAUNCH TSENSOR-05N | LAUNCH TSENSOR-B |
| Chip Type | SNP739D01CLE | SNP739D01CLE | SNP739D81CLE | NXP NTM88H135T1 | SNP74601CLE (Bluetooth sensor) |
| Programming time | 45S/per sensor | 45S/per sensor | 25S/per sensor | 8S/per sensor | No need to program |
| Number of sensors programmed simultaneously | Currently only 1 sensor | Currently only 1 sensor | 4 sensors (Requires upgrading the APP main program to version V1.50) | 8 sensors (Requires upgrading the APP main program to version V1.25) | No need to program |
Product Specifications:Battery Life: 4-5 years / 100,000 kmBattery Capacity: 345 mAhOperating Temperature: -40℃ ~ 125℃Storage Temperature: -40℃ ~ 125℃Operating Humidity: ≤ 90%Transmission Power: 5-8 dBmOperating Frequency: 433 MHz / 315 MHzPressure Monitoring Range: 0-800 kPa (1 bar = 100 kPa = 0.1 MPa)Pressure Reading Accuracy: ±10 kPaTemperature Reading Accuracy: ±5℃Acceleration (G) Sensor Reading Accuracy: ±15%Dimensions: Approx. 72*51*27 mmWeight: < 35 gProtection Rating: IP67Package includes:1pc x LAUNCH TSENSOR-05S RF TPMS Sensor
