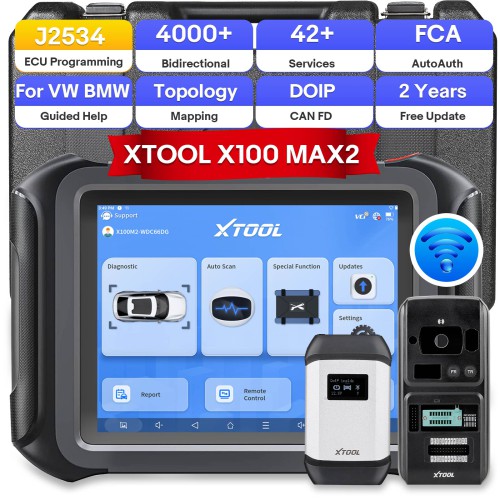

2025 XTOOL X100 MAX 2 Auto Key Programmer with J2534 VCI and KC501 Supports 42 Service Functions ECU Programming Topology Update of X100 PAD3

2025 XTOOL X100 MAX 2 Auto Key Programmer with J2534 VCI and KC501 Supports 42 Service Functions ECU Programming Topology Update of X100 PAD3

Product Code：

22612 Weight：7.8Kg

Categories: Key Programmer

Price: $ 1990.00

Quantity：

Buy Now

ADD TO CART

Add to Wishlist

Share this：

Product Specification

Manufacturer	XTool
Update	2 years free online update
Weight	7.8 Kg

Overview

2025 XTOOL X100 MAX 2 Auto Key Programmer with J2534 VCI and KC501 Supports 42 Service Functions ECU Programming Topology Update of X100 PAD3

Come With KC501, Performs Full IMMO Capability
Supports CAN FD and DoIP protocols, 2 Years Free Update, Multi-Language
42+ Special Functions, Topology Mapping, OE-Level Full Systems Diagnosis, Bi-Directional Control, Fresh Hidden Functions

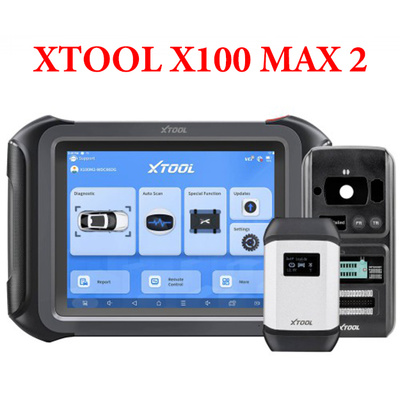

XTOOL X100 MAX 2 – Professional Key Programming & Diagnostic Tool with KC501

The XTOOL X100 MAX 2 is the ultimate key programming and diagnostic tool for workshops, mechanics, and locksmiths. Combining powerful IMMO/key programming functions, advanced ECU programming, and comprehensive diagnostics, this all-in-one device ensures fast, precise, and reliable vehicle maintenance.

Xtool X100 MAX2 Highlights:

1. Update version of X100 PAD3
2. Come With KC501, Performs Full IMMO Capability
3. Supports CAN FD and DoIP protocols
4. 2 Years Free Update
5. Supports FCA AutoAuth security gateway
6. Multi-Language: English, German, Spain, French, Polish, Portuguese, Russian, Italian, Turkish, Traditional Chinese, Japanese, Korean, Vietnamese, Arabic, Finnish. (English in default. Provide SN to change language).
7. Supports 42+ Special Functions, Topology Mapping, OE-Level Full Systems Diagnosis, Bi-Directional Control, Fresh Hidden Functions
8. With X-MVCI VCI J2534 supports OEM programming

XTOOL X100 MAX 2 with J2534 key programming and diagnostic tool

XTOOL X100 MAX 2 with J2534 key programming and diagnostic tool

Why Choose XTOOL X100MAX 2?

1. Advanced IMMO & Key Programming with KC501

COMPLETE IMMO KEY PROGRAMMING FUNCTIONS

Read PIN/CS(All Key Lost), key generation, key learning, remote learning on Benz FEM/BDC Key Learning/ECU Adaptation, BMW CAS3/2 Key Learning, VW/Audi/Skoda/Seat IMMO III/IV/V Add Key, All Key Lost, IMMO ECU reset/adaptation/refresh/coding, Transpronder read & write, EEPROM/MCU read & write. X100 MAX2 includes KC501 key programmer, which you can use with KC501 to further expand key programming capabilities.
Check number of Keys
Read PIN Code/PIN Code Calculation
Add Keys
Generate Dealer Key
Program New Key Fobs
Remote Learning
All Keys Lost
Read & Write Car Keys & Key Chip
Generate Dealer Keys
Read Remote Frequency, Chip Type & Chip ID
Read & Write MCU/EEPROM Chip

XTOOL X100 MAX 2 with J2534 key programming and diagnostic tool

2. J2534 ECU Programming, Offline Programming & ECU Coding

J2534 Pass-Through Programming: Seamlessly integrates with OEM software to replace ECUs, update firmware, and resolve software-based issues.
Offline ECU Programming: Reflash ECU modules without relying on an internet connection.
ECU Coding: Customize and match vehicle components, unlock hidden features, and activate/deactivate functionalities like adaptive lighting or comfort settings.

XTOOL X100 MAX 2 with J2534 key programming and diagnostic tool

3. Dealer-Level All-System Diagnostics

Perform OE-level diagnostics for all available modules, including:

Reading & clearing fault codes.
Viewing live data and graphs.
Freeze-frame analysis.

4. Topology Mapping for Enhanced Diagnostics

The X100MAX 2 offers Topology Mapping, which provides a clear, visual overview of vehicle systems and their interconnections for faster and more intuitive diagnostics.

XTOOL X100 MAX 2 with J2534 key programming and diagnostic tool

5. 42+ Maintenance Services

Access over 42 essential service functions for vehicle maintenance, including:

Oil Reset, EPB, BMS, SAS Calibration.
DPF Regeneration, ABS Bleeding, Throttle Relearn.
Injector Coding, Key Programming, and more.

XTOOL X100 MAX 2 with J2534 key programming and diagnostic tool

6. Full Bi-Directional Control

Run active tests to verify component functionality, including fuel pumps, windows, doors, fans, and more, making troubleshooting more efficient.

XTOOL X100 MAX 2 with J2534 key programming and diagnostic tool

7. FCA AutoAuth

Ensure secure access and programming for Chrysler, Dodge, and Jeep vehicles, fully compliant with FCA security protocols.

8. ECU Coding & Flashing Hidden Features

Unlock hidden functionalities and customize vehicles for:

Brands like VW, Audi, Skoda, Benz, BMW, Mitsubishi, and more.
Features include personalized settings, engine and transmission adaptations, and system optimizations.
9. Guided Functions for Specific Brands

Simplify complex diagnostics with guided functions for brands such as VW, Audi, Skoda, and Seat. These step-by-step instructions eliminate the need for security codes or manual channel numbers.

10. CAN FD & DoIP Protocols

CAN FD Protocol: Enables faster diagnostics for GM MY2020+ vehicles.
DoIP Protocol: Supports modern vehicles like BMW, Jaguar, and Land Rover for high-speed data transmission.

X100 MAX2 COMPATIBLE WITH VARIOUS ACCESSORIES--EXTENDED MORE FUNCTIONS

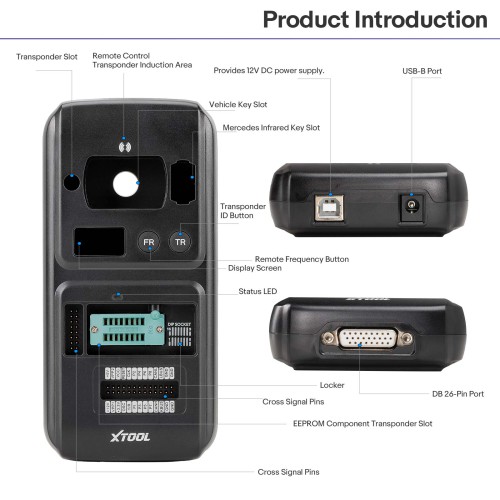

KC501:
For VW 4th & 5th IMMO
For Mercedes-Benz Infrared key Increase
Read & Write Chip

M821:
For Mercedes-Benz All Key Lost

M822:
For 2014-2019 Toyota 8A All Smart Keys Lost

KS01:
For Toyota Smart Key All Key Lost
For 94 Chip Smart Key

SK1:
For 2013-2022 Toyota/Lexus Models With 8A/4A Chip Smart Keys
Add Key/All Keys Lost
Emergency Start
Frequency & Key Type Reading

Vehicle Coverage:

Asia: For Toyota, for Lexus, for Honda, for Acura, for Mazda, for Nissan, for Infiniti, for Mitsubishi, for Subaru, for Suzuki, for Kia, for Hyundai, for Daewoo, for SSANGYONG, for Proton, etc
Europe: For Audi, for VW, for Skoda, for Seat, for Porsche, for Opel, for Citroen, for Peugeot, for Jaguar, for Land Rover, for Lincoln, for Renault, etc
America: For GM, for Cadillac, for Buick, for Chrysler, forFord etc
China: For Great Wall, for Chery, for Brilliance-auto, for Geely, for LIFAN, for HAFEI, for CHANGAN, for LANDWIND, for BYD, for BYD, for JAC, etc.
Brazil: For BRAZIL/GM, For BRAZIL/CHEV, For BRAZIL/FIAT, For BRAZIL/FORD, For BRAZIL/VAG
Support For LADA ,For Russian Renault and etc.
Support for Brazil Renault,GM,Fiat and Brazil car models etc.
Support for Perodua and for Proton Malaysia car models etc.
Support for Renault Megane III with France Car models etc.

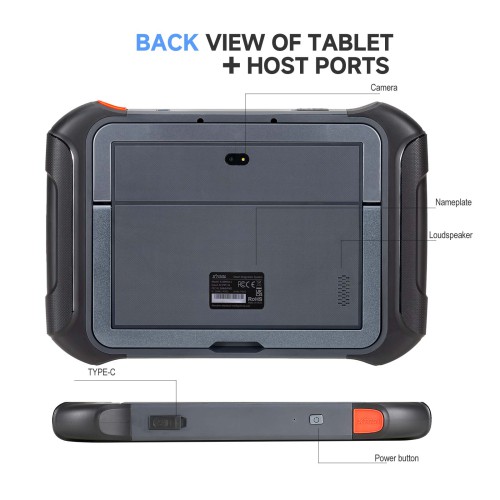

Hardware Excellence

Android 10 OS: Smooth operation and compatibility with modern apps.
9.7” Display: High-resolution 1024x768 screen for clear visuals.
6400mAh Battery (7.4V): Equivalent to 12,800mAh (3.7V), ensuring long-lasting performance.
4GB + 128GB Memory: Ample storage for diagnostics and updates.
8MP Rear Camera: Capture detailed images for inspections.
Faster AUTO VIN: Quickly identify vehicles for efficient diagnostics.

Optional Accessories

KS-1 Adapter: Adds advanced smart key programming for Toyota and Lexus vehicles.
M822 Box: Handles lost key and advanced key programming for Mercedes-Benz.

Warranty & Updates

2-Year Free Updates: Stay ahead with the latest features and compatibility enhancements.

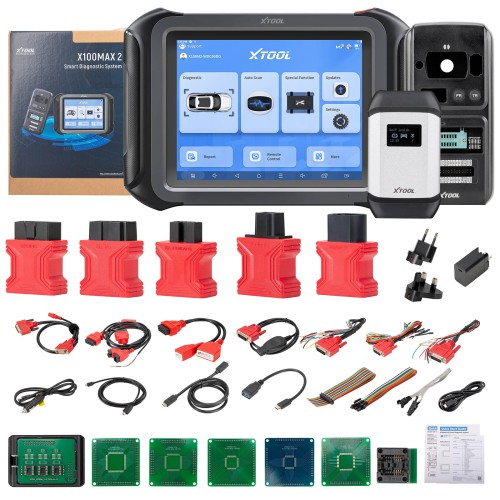

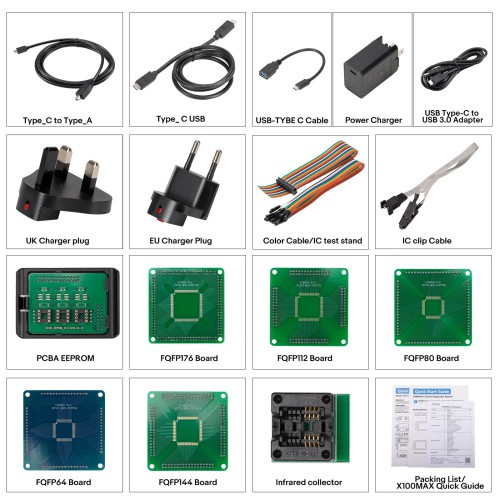

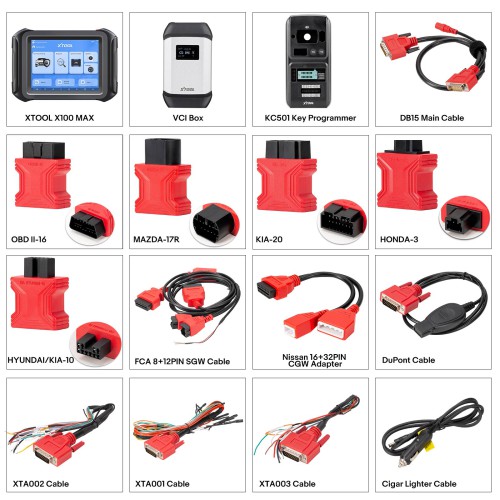

Package List:

XTOOL X100 MAX 2 with J2534 key programming and diagnostic tool
