2024 Newly Lonsdor KH100+ Hand-Held Key Programmer With Four Remote Keys Added TATA and Mahindra

2024 Newly Lonsdor KH100+ Hand-Held Key Programmer With Four Remote Keys Added TATA and Mahindra

Product Code：

22344 Weight：0.9Kg

Categories: Key Programmer

Price: $ 169.00

Quantity：

Buy Now

ADD TO CART

Add to Wishlist

Share this：

Product Specification

Manufacturer	Lonsdor
Update	One year free online update
Warranty	1 year
Original	Yes
Weight	0.9 Kg

Overview

2024 Newly Lonsdor KH100+ Hand-Held Key Programmer With Four Remote Keys Added TATA and Mahindra

Lonsdor KH100+ is a versatile hand-held smart device, able to access control key, simulate/ generate chip, generate remote (key), detect remote frequency, detect IMMO, unlock Toyota smart key and etc.
New Color + Added Four Remote Keys and TATA and Mahindra cars.

2024 Newly Lonsdor KH100+ Hand-Held Key Programmer With Four Remote Keys Added TATA and Mahindra

Newly Lonsdor KH100+
Added 4 new remote keys and Indian cars TATA and Mahindra

Lonsdor KH100+ Features:

※ Modern appearance design, in line with the operating habits of the public.
※ Device system comes with operation instructions, easier for you to use.
※ It covers almost all the functions of the similar products in the market.
※ Built-in super sensor to collect data(over-range data collection).
※ Exclusive support for 8A(H chip) generation.
※ Built-in WIFI module, can connect to network at any time.

Lonsdor KH100+ Function List:

Identify Copy
Chip Simulation
Remote Generation
Remote Frequency
Access Control Key
Chip Generation
Coil Identification
Special Function

Identify/copy/generate chip:

Multi-vendor chips supported
Especially Toyota 8A(H) chip Our predominance

Simulate Chip:

Able to simulate 4D/46/48 chips
With built-in super sensory data collector(no interference within 1 meter when collecting data)

Generate remote/smart key:

Dedicated connector to generate remote/smart key Online update supported
Remote generation diagram

Smart key generation diagram

Dedicated connector to generate remote key:PS2-7Pin OD3.5

Access control/remote frequency

One-click identify and copy IC/ID cards
Copy multi-vendor chops
Detect remote frequency bands with high accuracy
One click identify ID card,able to copy multi-vendor chps,at the back sensor area

Detect super frequency

Detect multiple frequency brands with high accuracy

Lonsdor KH100+ Identify Coil

①Search smart induction area
Connect remote key with remote connector, Put KH100+’s antenna position. If inductive signal is identified, the device will make sounds, please check if the position is right (as shown below).
②Detect IMMO
Connect remote key with remote connector, Put KH100+’s antenna close to key
identification coil, and use key to turn ignition ON. When KH100+ buzzer beeps, it means signal is detected.

Lonsdor KH100+ Remote Frequency

Enter this menu, put remote control at the device’s induction area to detect remote frequency.

Lonsdor KH100+ Special function

Include: detect infrared signal, unlock Toyota smart key, More functions, to be continued...
① Detect infrared signal
Put remote control at the infrared signal detection area, press the remote's button once. When the light on KH100+ 's screen is on, it indicates there is infrared signal, otherwise there is no signal (see below pic).

② Unlock Toyota smart key
Put in smart key, click OK to operate.

Lonsdor KH100+ Registration guide

Note: After booting the device, please connect to WIFI and enter the following process.
New user
① For the first use, please prepare a common call phone or email to help complete
activation process, click OK to start.
② Boot the device and enter registration activation process.
③ Input user name, password. Confirm password, cell phone number or email to obtain
verification code. Then input the code to submit registration.
④ Account registered successfully, it will take 5 seconds to bind the device.
⑤ Successful registration, enter the system.

Registered user (who has registered Lonsdor products before)
① For the first use, please prepare a registered call phone or email to help complete
activation process, click OK to start.
② Boot the device and enter registration activation process.
③ Input your registered mobile number or email, password to obtain verification code.
Then input the code to submit login.
④ Account login succeeded, it will take 5 seconds to bind the device.
⑤ Successful registration, enter the system.

In addition, users who have already registered Lonsdor’s product can directly choose
[registered user] to activate account.

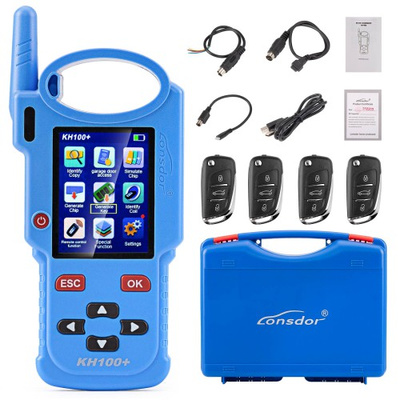

Package includes:

1pc x Lonsdor KH100+ Hand-Held Remote Key Programmer
4pcs x Smart Keys
1pc x USB cable
3pcs x remote programming cables
1pc x manual
1pc x product certificate card
