Note: The use of the ZN092 adapter is mandatory to ensure the safe completion of the procedure. we will not be held responsible for any technical issues or PCB damage resulting from the use of the MN037 without the ZN092 adapter.

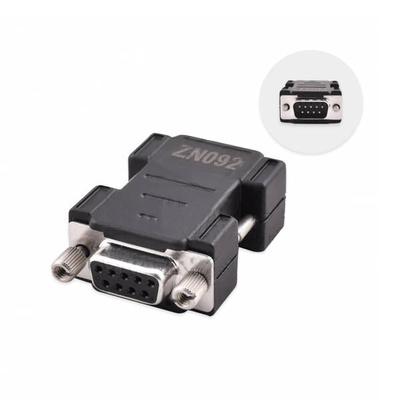

Abrites ZN092 adapter is used together with the ZN085 ABRITES RH850/V850 Programmer for working with automotive modules on bench. It shifts 5-volt logic level of the programmer to 3.3 volts.

Abrites ZN092 - Adapter for ZN085 - 5V to 3.3V Functionality:

• Shifts the 5 volt logic level of the ZN085 programmer to 3.3 volts.

Abrites ZN092 - Adapter for ZN085 - 5V to 3.3V Supported modules:

• For MCU’s using the 3v3 logic levels
• Non-brand specific

The ZN092 adapter is initially designed and developed to be used with the ZN085 ABRITES RH850/V850 Programmer for the purpose of programming IC177 clusters. It is required in the procedure for calibrating IC177 clusters using the MN037 license and the ZN085 programmer.
AVDI with active AMS is required.
